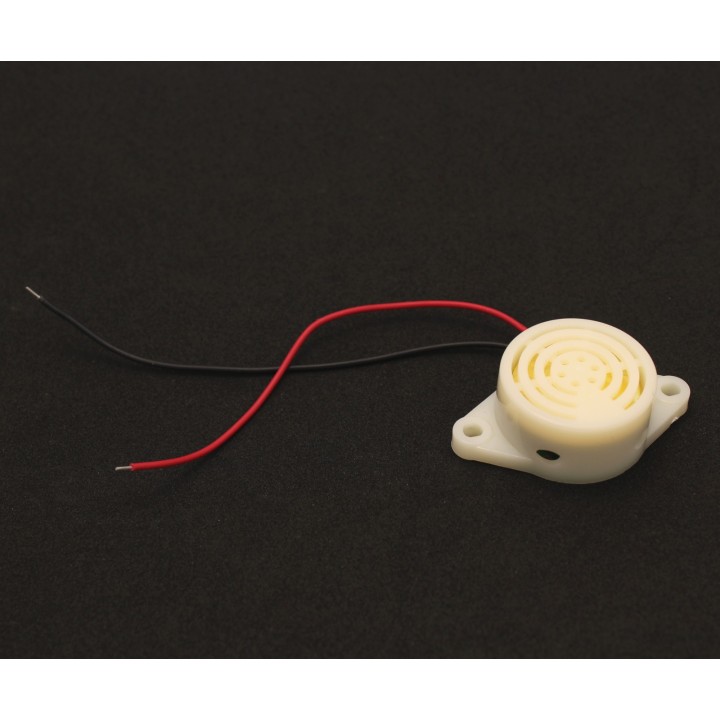

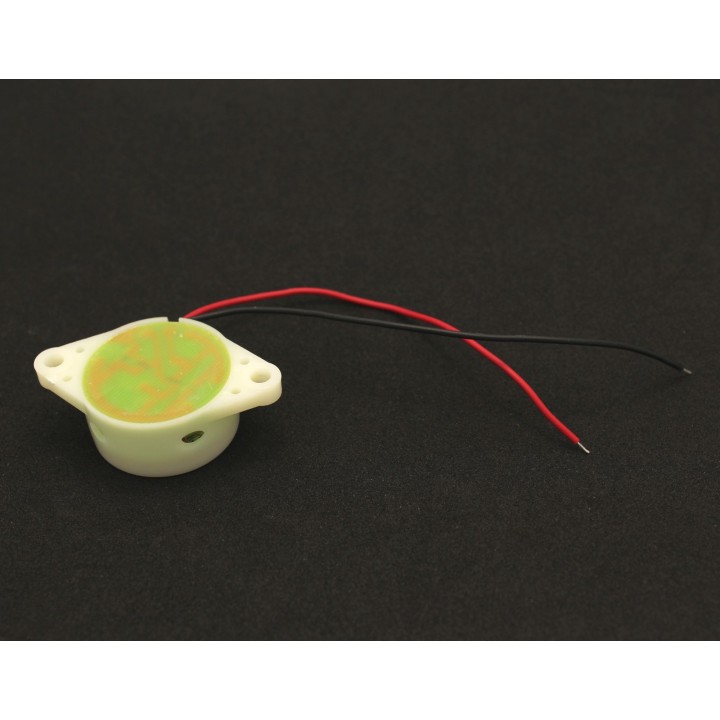

Solid State Buzzer 3-24VDC / 12mA

This little buzzer is a great addition to your next project. Just give it a DC signal between 3 V and 24 V and you'll be buzzing away.

More details

Availability: IN STOCK

Tinkersphere

TS2296

$3.49

This standard Solid State buzzer just needs a regular DC signal between 3V and 24V to get it going. It has a built in oscillator circuit which means it converts standard DC power like what you'd get from a battery, into an alternating signal for you!

Specifications:

  • Operating Voltage: 3-24V DC
  • Rated Voltage: 6V DC
  • Current Consumption: 12mA
  • Oscillating Frequency:  2500 - 3500 Hz
  • Sound Pressure Level: 95dB
  • Connector Type: Wire Leads
  • Tone Type: Single
  • Color: White
  • Weight: 0.25 oz
  • Case Material: ABS
  • Mounting: Flange



Note: The difference between this Solid State Buzzer and Piezo Transducers such as our Piezo Electric Transducer / Buzzer 5VAC is:

Piezo Transducers take in AC (alternating) signals and require a separate oscillator circuit while this buzzer has a built in oscillator circuit.
