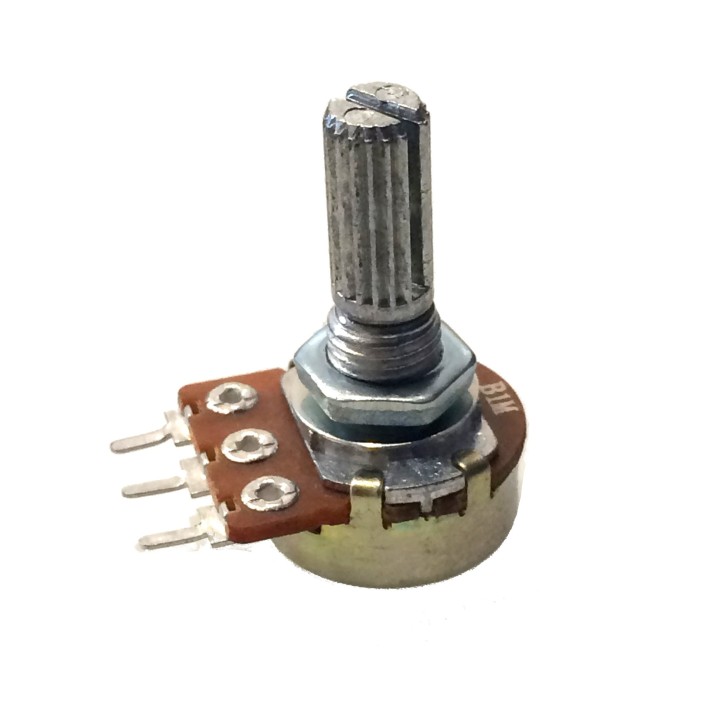

B1M Linear 1M Ohm Taper Potentiometer

Use this B1M Linear Taper Pot to get a variable resistance rated to 1 Mega Ohms when the knob is turned. Useful for Radio Transmitter repairs, guitar pedals, electric guitars etc.

More details

Availability: SHIPS TODAY

Last Updated: 03/28/2024

Tinkersphere

TS1570

$2.99

This B1M Linear Taper Pot is great for getting variable resistance! Just turn the knob and the resistance will vary on the 3 output pins. Since the pins are straight, it's easily mountable on a breadboard with the shaft being off the side.

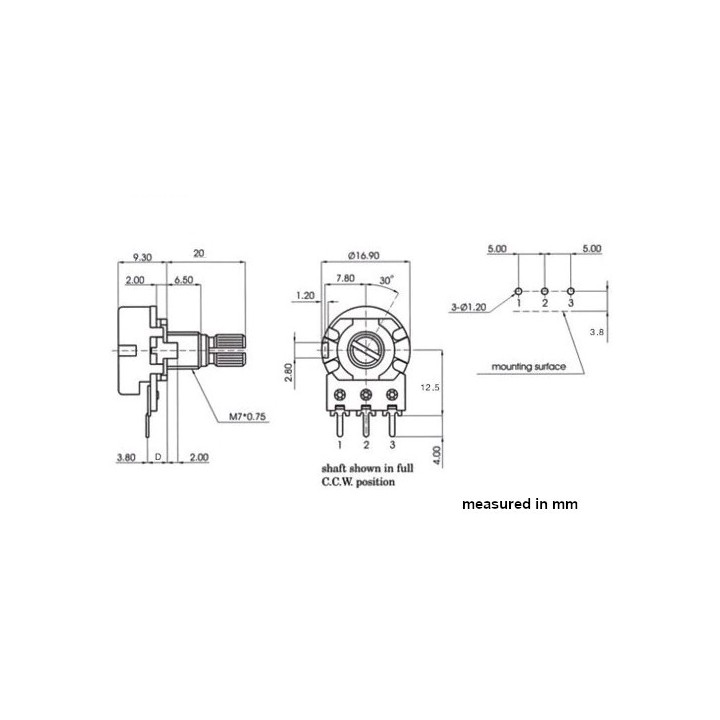

Specifications:

  • Pin Type: Straight
  • Shaft Type: Round
  • Potentiometer Value: 1M Ohms
  • Linear Taper
  • Knob: 6mm diameter, round
  • Shaft Length: 20mm
  • Shaft Diameter: 6mm
  • Body Diameter: 16.9mm
  • Body Height: 9.3mm
  • Includes:
    • 1M Potentiometer
    • Washer
    • Mounting Nut
