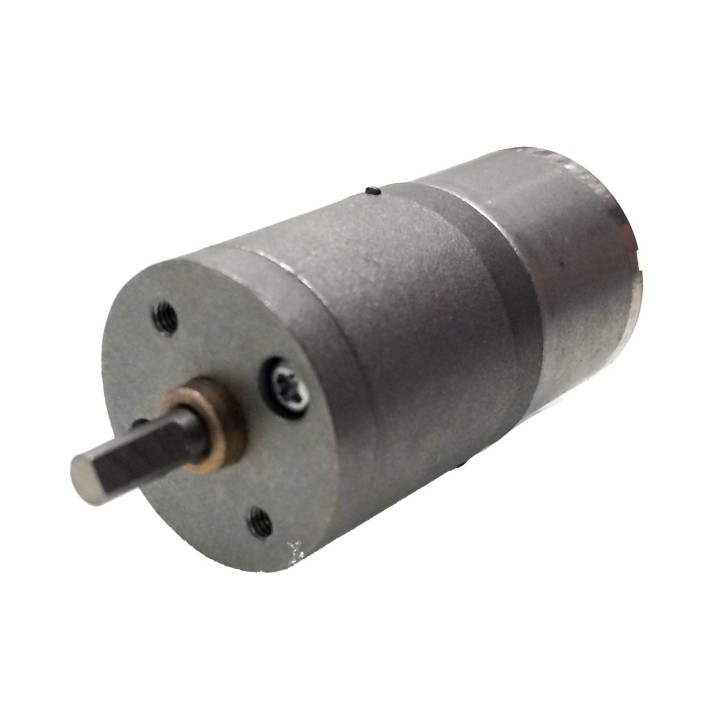

Low Speed DC Motor 12V / 21 RPM

This Large Low Speed DC Motor is geared down to reduce speed to 21 RPM (revolutions per minute). Apply 12V across the terminals to power it.

More details

Availability: Ships 4/29/2024

Last Updated: 04/25/2024

Tinkersphere

TS1037

$19.99

Have a question? 2 answered questions

Apply 12V DC across the 2 metal connectors at the back of this DC motor to have it spin. This is a special Low Speed DC Motor that will spin at a speed of 21 RPM max. Can be used with a DC Motor speed controller to make it even slower. It works by having a tiny metal gearbox built-in for durability and speed reduction.

Specifications:

  • Operating Voltage: 6V - 12 V
  • Free-run speed at 12 V: 21 RPM
  • Free-run current at 12 V: 80 mA
  • Stall current at 12 V: 0.85 A
  • Stall torque at 12 V: 32 kg.cm 444.39 ozin
  • Gear ratio: 1:378
  • Shaft Type: D Shaft
  • Reductor size(L): 27 mm
  • Weight: 70 g


Ask the community
What are the dimensions of this motor

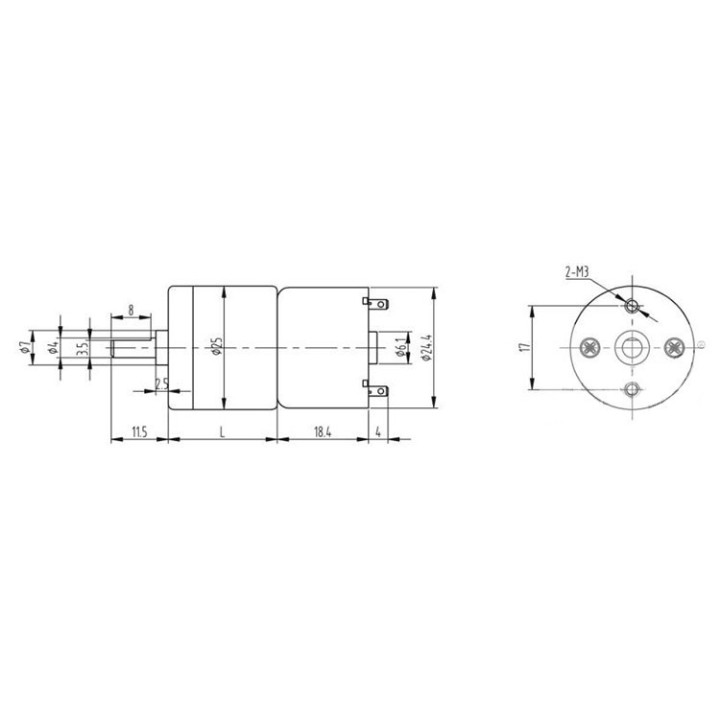

There\'s a diagram in the pictures. It shows you the dimensions.
Default User Icon Justin · 02/07/2020
Was this answer helpful? (0) (1)
Are there connectors for the power tabs or just soldering wires on to it?
There are tiny holes in the power tabs. You can thread your wire through and twist, use alligator clips, or solder them.
Default User Icon Max · 03/25/2022
Was this answer helpful? (0) (0)
