RGB OLED Display - 16-bit Color 1.27"

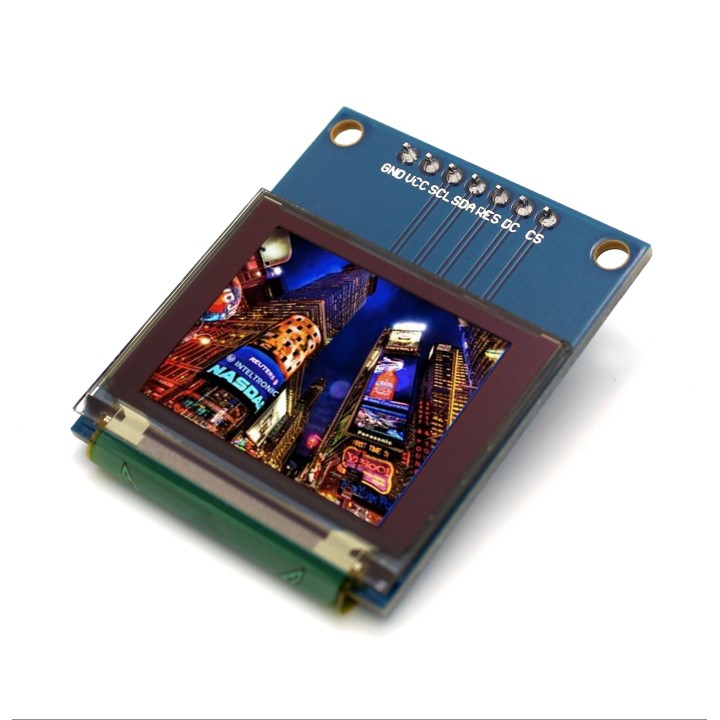

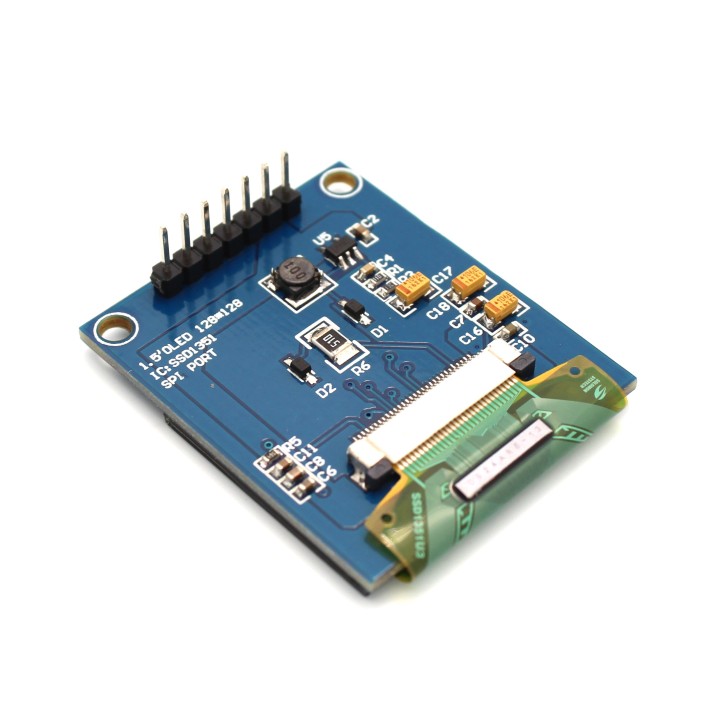

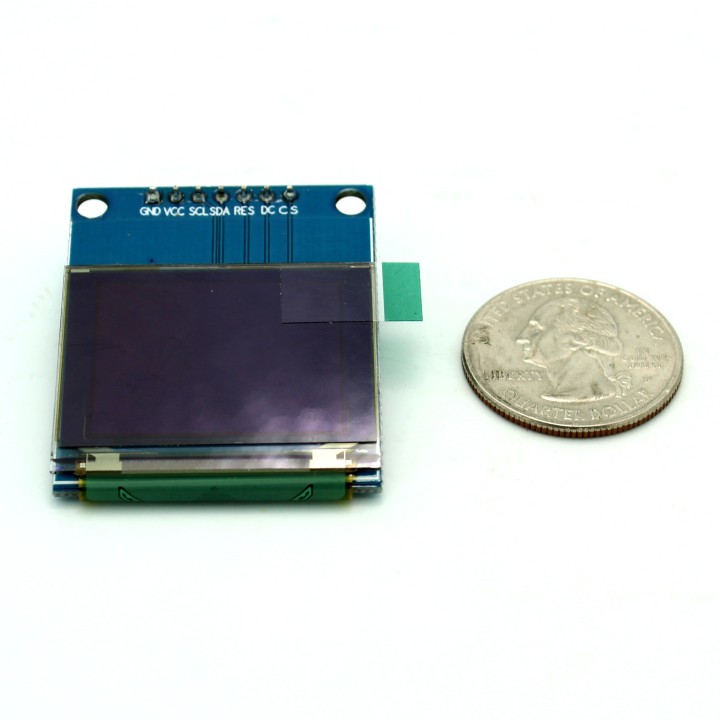

This Full Color 1.27" OLED display has lovely contrast with a deep black background and full color RGB led pixels. You can write or display color images with ease using this Organic LED module for Raspberry Pi and Arduino.

More details

Availability: Sold Out
Call to
Backorder

Tinkersphere

TS2274

$33.99

Just plug your Raspberry Pi or Arduino into this little Organic LED module for a wonderfully high contrast mini display. Very low power consumption and deep contrast make OLEDs perfect for watches, wearables, and low power projects where you'd like a little display. Easy to interface with using standard SPI Protocol.

Specifications:

  • Full Color RGB OLED Module for Arduino & Raspberry Pi
  • Number of pins: 7
  • Comes pre-soldered so no soldering is required.
  • Operating Voltage: 3V - 5V
  • Communication Protocol: SPI
  • Resolution: 128x96
  • Colors: Full Color RGB
  • 16 Bit Color
  • Screen Size: 1.27"
  • Viewing Angle: >160 degrees
  • Operating Temperature: -30C to 70C
  • Chipset: SSD1351
  • Arduino & Raspberry Pi compatible
  • Pinout:
    • GND: Ground
    • VCC: Positive Voltage
    • SCL: Clock Line
    • SDA: Data Line
    • RES: Reset
    • DC: Data/Demand
    • CS: Chip Select
