Pixhawk PX4 2.4.8 Flight Controller Maximize

Pixhawk PX4 2.4.8 Flight Controller

The Pixhawk PX4 2.4.8 Flight controller is great for multicopters with integrated backup power and failure backup control as well as Gyroscope, 3-axis Accelerometer / Magnetometer, 6-Axis Accelerometer / Magnetometer and Barometer!

More details

Availability: Sold Out
Call to
Backorder

Tinkersphere

TS2024

$99.99

The Pixhawk PX4 2.4.8 Flight Controller 32 Bit ARM PX4FMU PX4IO Combo for Multicopters integrates PX4FMU and PX4IO. Pixhawk is with new 32-bit chip and sensor technology. It utilizes advanced 32-bit CortexM4 ARM high performance processor and can run RTOS NuttX real time operating system. With integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control. It also provides redundant power input and fault transfer function.

Features:
1. Integrated PX4FMU and PX4IO
2. New 32-bit chip and sensor technology
3. Advanced 32-bit 2M flash memory STM32F427 CortexM4 processor, with hardware floating point processing unit
4. Can run RTOS NuttX real time operating system
5. Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control
6. Provides redundant power input and fault transfer function
7. 14x PWM / actuator outputs
8. Bus interface (UART, I2C, SPI, CAN)
9. Automatic and manual modes
10. Colored LED indicator
11. Multi tone buzzer interface
12. Micro SD for recording flight data

Specifications:
1. Processor: 32-bit 2M Flash Memory STM32F427 Cortex M4
2. Main Frequency: 256K, 168MHz RAM
3. Backup Co Processor: 32-bit STM32F103
4. Sensors: L3GD20 3-Axis Digital 16-bit Gyroscope, LSM303D 3-Axis 14-bit Accelerometer / Magnetometer, MPU6000 6-Axis Accelerometer / Magnetometer, MS5611 High Precision Barometer
5. Interface: 5*UART, 1*Compatible High Voltage, 2*Hardware Flow Control, 2*CAN, Spektrum DSM/DSM2/DSM-X Satellite Receiver Compatible Input, Futaba SBUS Compatible Input and Output, PPM Signal Input, RSSI (PWM or Voltage) Input, I2C, SPI, 3.3V and 6.6V ADC Input, External USB MICRO Interface
6. Dimensions: (1.57 x 1.18 x 0.20)" / (4 x 3 x 0.5)cm (L x W x H)
7. Weight: 1.31oz / 37g

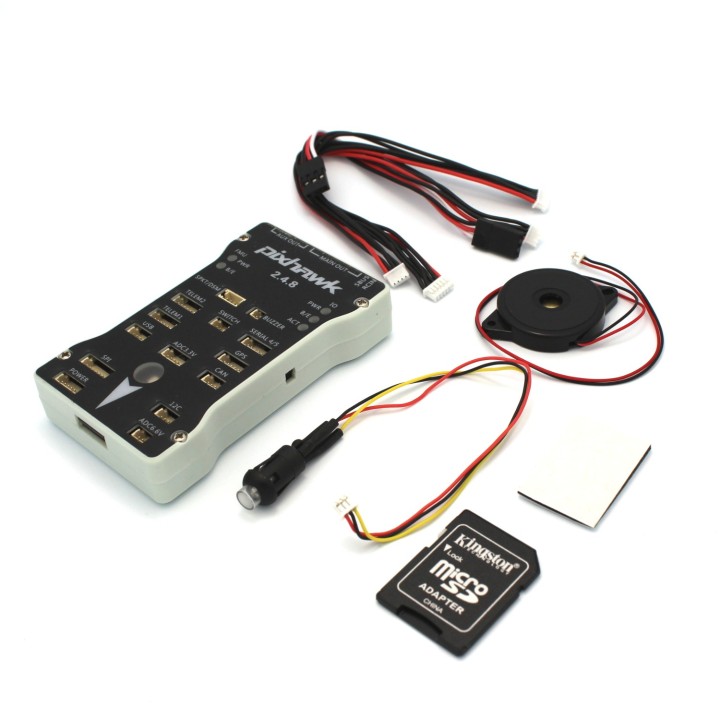

Package Includes:
1 x 2.4.8 Pixhawk Main Control
1 x Safety Switch
1 x Flight Control Shell
1 x Buzzer
1 x 6pin to 6pin Cable
1 x 4pin to 4pin Cable
1 x 3pin Jumper Cable
