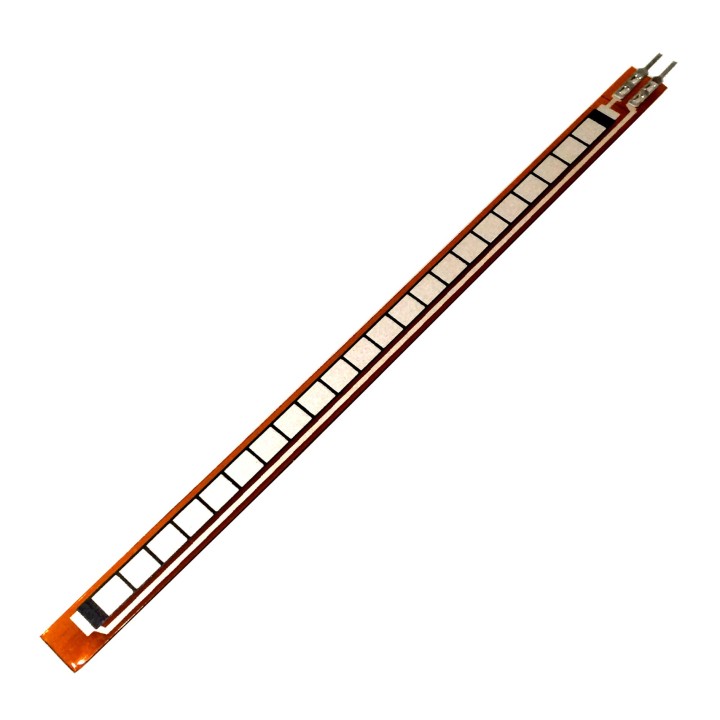

Long Flex Sensor: 4.5" Maximize

Long Flex Sensor: 4.5"

When this long 4.5 inch sensor flexes (bends) the resistance changes. Famous for being in the Nintendo Powerglove.

More details

Availability: Ships 4/29/2024

Last Updated: 04/25/2024

Tinkersphere

TS-927

$16.90

Have a question? 0 answered questions

Use this Long 4.5" Flex Sensor to detect flexing along the sensor. As the sensor is flexed, the resistance on the 2 output pins changes. Easy to use and great for detecting flexing / bending motions.

Specifications:

  • Length: 4.5"
  • Life Cycle: >1 million
  • Height: 0.43mm (0.017")
  • Flat Resistance: 10K Ohms ±30%
  • Bend Resistance: minimum 20K Ohms ±30% (@ 180° pinch bend)
  • Power Rating : 0.5 Watts continuous; 1 Watt Peak



Click here to download the datasheet.
