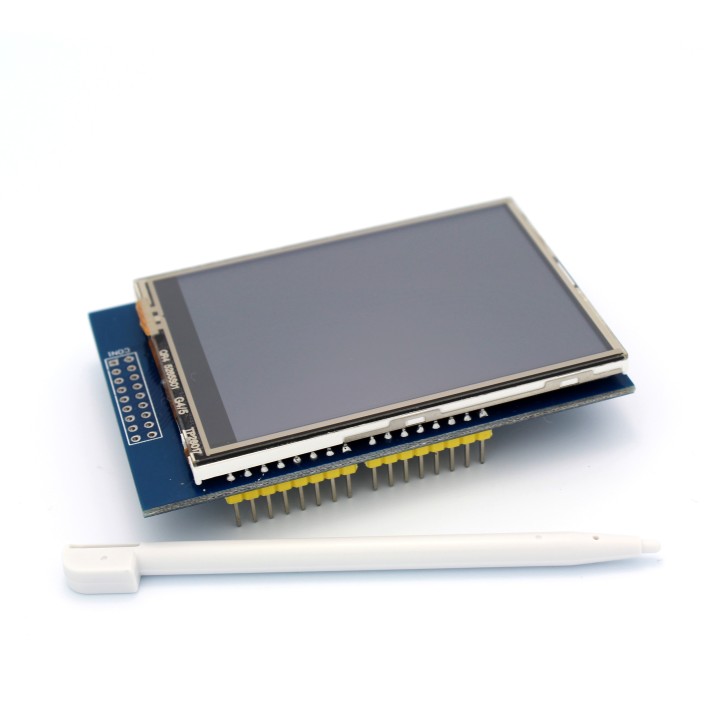

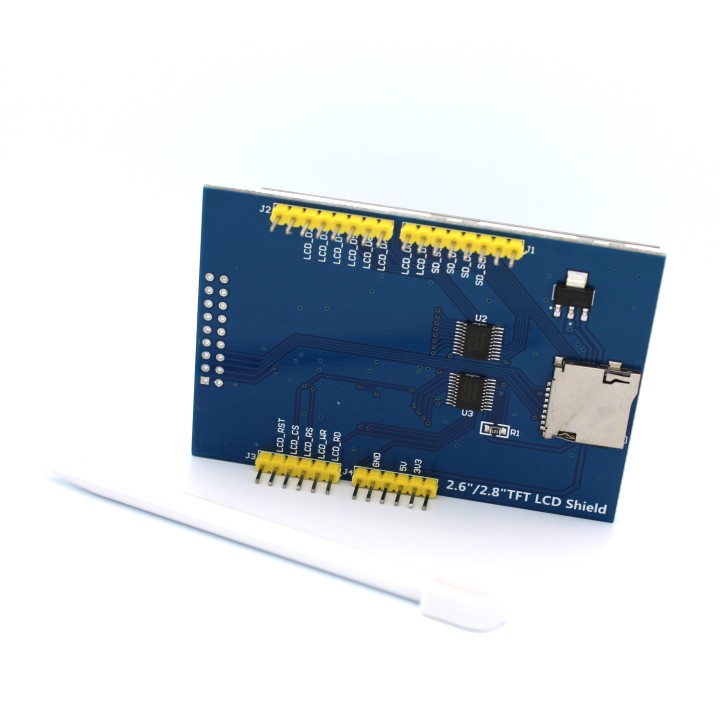

2.8" TFT Touch Shield for Arduino with Resistive Touch Screen

Place this shield on top of your Arduino board to add a 2.8" touch screen to your Arduino project.

More details

Availability: IN STOCK

Tinkersphere

TS1782

$34.99

Add a 2.8" color touch screen to your Arduino projects with this Touch Screen Shield for Arduino. For Beginner to Intermediate Arduino Developers.

Features:

  • Touch Screen Shield for Arduino
  • Chipset: ILI9341
  • 2.8" Color TFT
  • Resistive Touch
  • Comes fully assembled
  • No extra wiring needed
  • MicroSD card slot onboard
  • 240x320 resolution, 18-bit (262,000) color
  • Works with the libraries: Adafruit_TFTLCD and Adafruit_GFX
  • Includes Stylus
  • Operating Voltage: 5V
  • High speed SPI display with digital SPI touchscreen driver
  • The display uses digital pins D2 - D13. If you do not use the Microsd card reader, you can also use D10 - D13.
  • Onboard 3.3V @ 300mA LDO regulator
  • LED backlight
