Liquid Level Controller Maximize

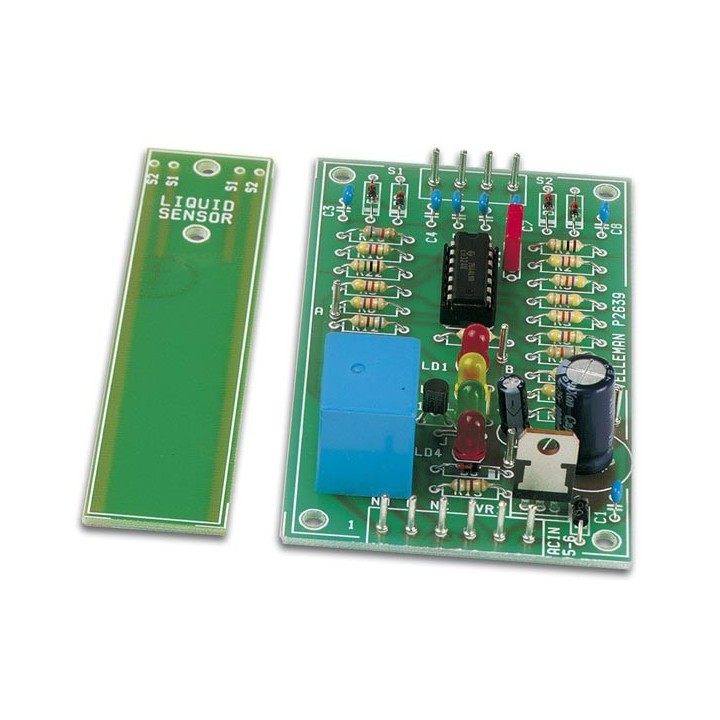

Liquid Level Controller

This Liquid Level Controller Kit can be used in many ways! It will let you know when your water level goes above or below a certain threshold.

More details

Availability: IN STOCK

Tinkersphere

TS-91

$24.99

This Liquid Level Controller Kit can be used in many ways! It will let you know when your water level goes above or below a certain threshold. Sample uses include, fish tank alarm to warn you when you need to add more water or water leak alarm to warn you if you have a water leak in your basement or forgot to turn off the tap!

This multifunctional device is easy to use in a variety of applications : 1) LED control of set fluid level : LOW, MIDDLE, HIGH ; 2) Controller : the relay automatically switches a pump and/or valve to keep the fluid level between the LOW and HIGH marks ; 3) Alarm : if the sensor detects a level which is too high or too low (variable), the relay will operate a bell or other alarm device.

Specifications

  • power supply: 12-14V AC or 16-18V DC / 100mA
  • relay output: 240V / 3A max.
  • dimensions:
    • controller PCB: 4.1 x 2.4"
    • sensor PCB: 4.1 x 1"
