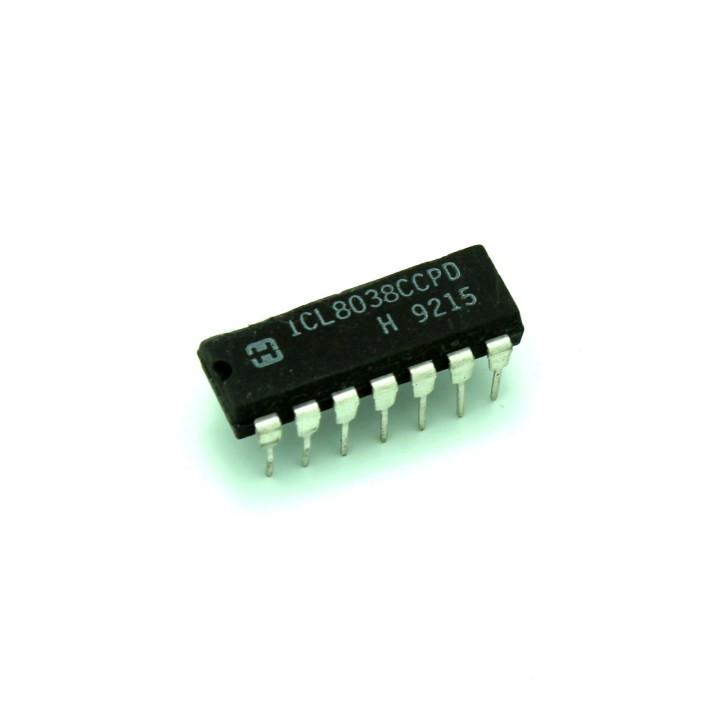

ICL8038CCPD ICL8038 Waveform Generator Gen Dip-14 IC Chip

ICL8038CCPD ICL8038 Waveform Generator Gen Dip-14 IC Chip. The ICL8038 waveform generator is a monolithic integrated circuit capable of producing high accuracy sine, square, triangular, sawtooth and pulse waveforms

Features:

• ICL8038CCPD ICL8038 Waveform Generator IC Chip
• Waveform generator
• Capable of producing high accuracy sine, square, triangular, sawtooth and pulse waveforms!

• Low Frequency Drift with Temperature: 250ppm/oC
• Low Distortion: 1% (Sine Wave Output)
• High Linearity: 0.1% (Triangle Wave Output)
• Wide Frequency Range: 0.001Hz to 300kHz
• Variable Duty Cycle: 2% to 98%
• High Level Outputs: TTL to 28V
• Simultaneous Sine, Square, and Triangle Wave Outputs
• Easy to Use - Just a Handful of External Components Required
• Package: 14 pin DIP
