8 x 5050 RGBW LED Stick - Natural White 4500K (Neopixel Compatible)

Name: 8 x 5050 RGBW LED Stick - Natural White 4500K (Neopixel Compatible)
Brand: Tinkersphere
SKU: TS2323
Price: 7.75 USD
Availability: InStock

Tinkersphere

$7.75

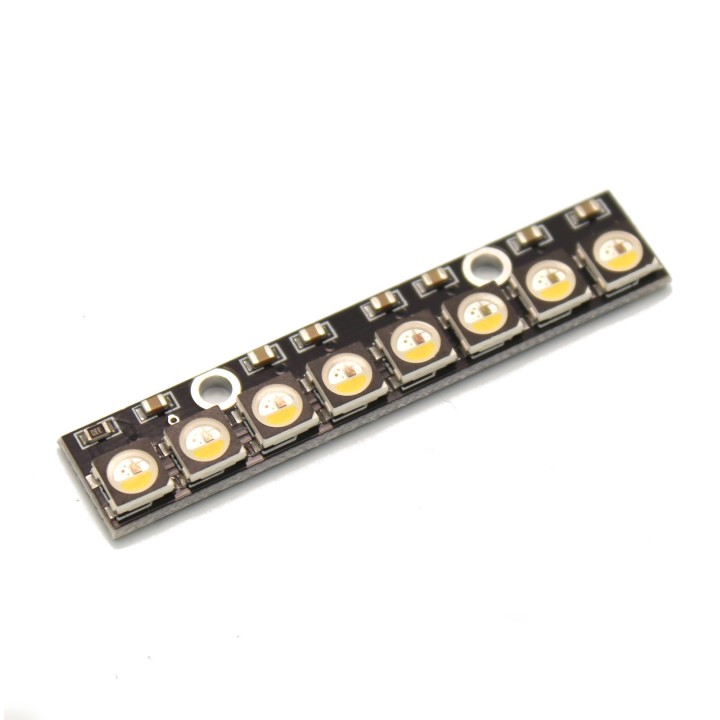

This RGBW LED Stick has 8 Pixels nicely arranged in a line. Each RGBW LED pixel is addressable and includes both RGB and a separate natural white LED to make lighting designs for photography where color temperature is important.

✅SHIPS TODAY

Use this 8 Pixel RGBW LED Stick to add a bar of light to your projects with built in Natural White 4500Ks LEDs. Uses just 1 pin for Input and 1 pin for Output to the next LED stick, ring or strip if you'd like to chain multiple together! Just connect V+ to 5V DC, G to 0V and Data Input to your Arduino or other microcontroller to control the whole ring. Each of the 8 RGB LEDs has a chip inside which allows you to control them when chained one after the other.

Specifications:

RGBW LED Stick
Can be set to Natural White (4500K)
Chipset: SK6812 (Neopixel compatible)
Number of LEDs: 8
Dimensions:
- Length: 2" (51.1mm)
- Width: 0.4" (10.22mm)
- Thickness: 0.12" (3.19mm)

Can be soldered to conductive thread or wire
Has 2 mounting holes

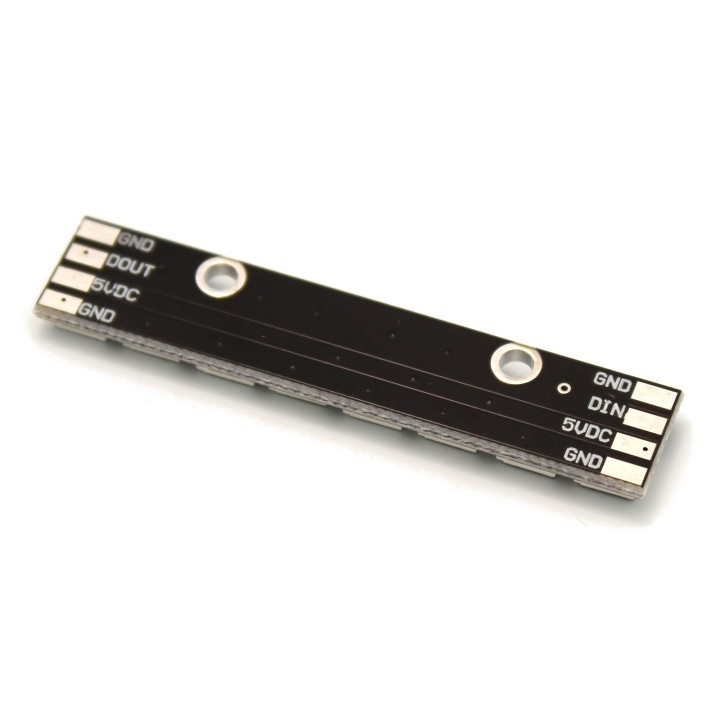

Pinout:
- 5V
- GND
- DIN: Data Input
- DOUT: Data Output (connect to the Data Input of the next LED ring or just leave unattached)
Click here to download the Arduino Sample Code
