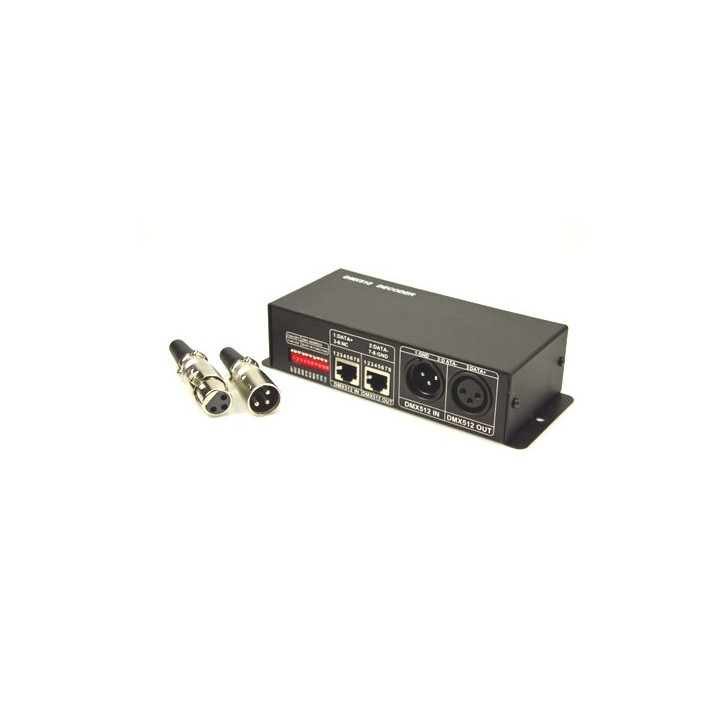

DMX 512 Decoder / Controller for RGB LED Strips

Control your RGB LED strips via DMX with this DMX 512 Decoder / Controller.

More details

Availability: IN STOCK

Tinkersphere

TS1698

$39.99

Features:

  • DMX Controller for 4-Pin RGB LED Strips
  • Allows you to control 12V 4-Pin RGB LED Strips (with 3 channels, Red Green & Blue) via DMX or standalone mode with the onboard DIP switches
  • Input voltage: 12V - 24V DC (for 12V RGB LED strips, use 12V)
  • Max output current: 8A per color channel
  • Max output power: 288W - 576W
  • Output: 3CH
  • Connection mode: Common Anode (+)
  • Product size: 6.5" x 2.6" x 1.6" (16.5 x 6.7 x 4.1cm)
  • Product weight: 310g / 10.9oz
  • Converts DMX to PWM signals for driving LEDs
  • Output: Three CMOS output RGB
  • Maximum Load Current: 8 Amps/channel (24 Amps total)
  • Control Methods:
    • DMX512 RJ45
    • DMX512 3-pin XLR
    • Standalone DIP switches
  • Standalone Modes: 9 total (7 static and 2 dynamic)

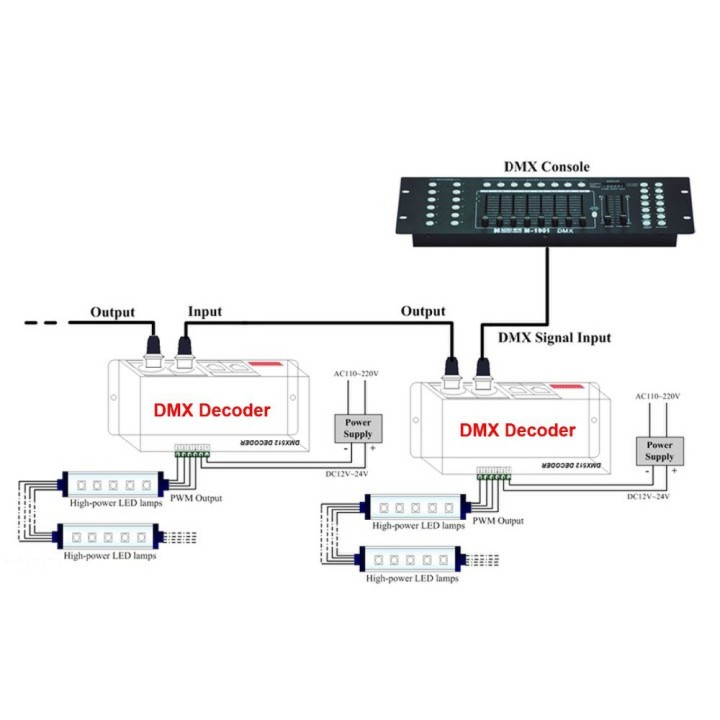

  • Adjustable DMX Address so you can use up to 511 controllers simultaneously!
  • Operating Temperature: -25C to 60C
  • Pinouts:
    • V+: 12V DC
    • V-: Ground
    • Com: LED strip Ground
    • CH1: R
    • CH2: G
    • CH3: B

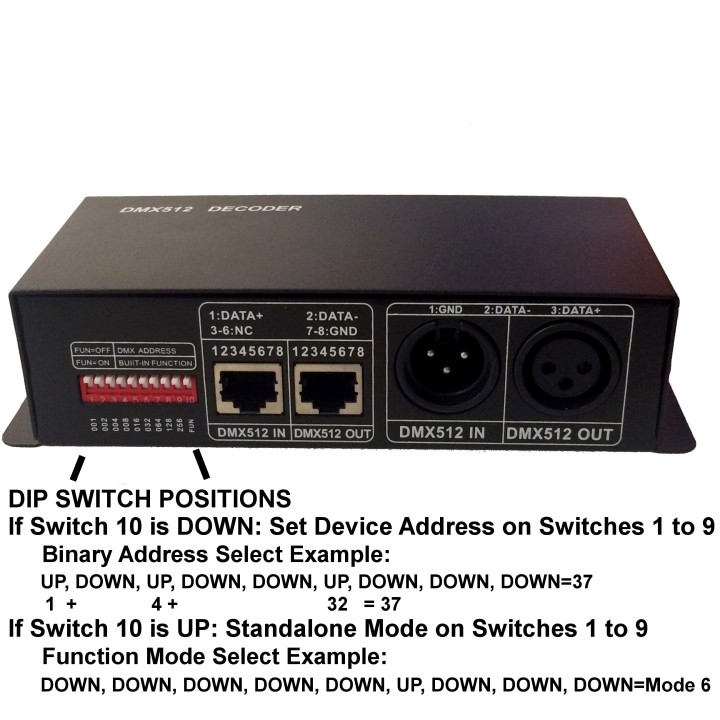

DIP Switch Settings:

  • When Switch 10 is DOWN, Switches 1 through 9 are used to set the device address in Binary
    • Example: If you want to set the device address for this DMX decoder to 37, you'd set the switches to the binary code 101001000 which corresponds to 1+4+32 for a total of 37 as follows:
      • Switch 1 (leftmost): UP
      • Switch 2: DOWN
      • Switch 3: UP
      • Switch 4: DOWN
      • Switch 5: DOWN
      • Switch 6: UP
      • Switch 7: DOWN
      • Switch 8: DOWN
      • Switch 9: DOWN
      • Switch 10: DOWN (this sets Standalone Function Mode to OFF)
  • When Switch 10 is UP, Switches 1 through 9 are used to set the standalone function mode to 1 of the 9 options below (only set one switch to the UP position at a time; if more than one is left UP, the greatest value will take priority)
    • Example: If you want to set the standalone function mode to 7 so your LED strip is white, you'd set switch 7 to UP and all other switches 1 to 9 to down:
      • Switch 1 (leftmost): DOWN
      • Switch 2: DOWN
      • Switch 3: DOWN
      • Switch 4: DOWN
      • Switch 5: DOWN
      • Switch 6: DOWN
      • Switch 7: UP
      • Switch 8: DOWN
      • Switch 9: DOWN
      • Switch 10: UP (this sets Standalone Function Mode to ON)
  • Standalone Function Modes:
    • Mode 1: Red
    • Mode 2: Green
    • Mode 3: Blue
    • Mode 4: Yellow
    • Mode 5: Purple
    • Mode 6: Cyan
    • Mode 7: White
    • Mode 8: Seven Color Jump Change (for this mode, you can set speed by turning on one of switches 1 through 7 with 7 being the fastest)
    • Mode 9: Seven Color Fade Change (for this mode, you can set speed by turning on one of switches 1 through 7 with 7 being the fastest)
