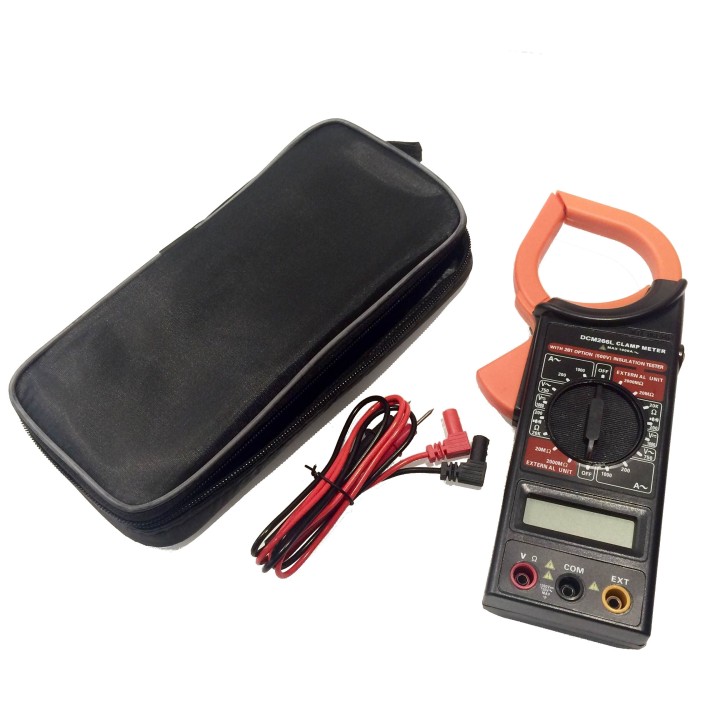

Digital Clamp Meter
Price:
$19.99
Clamp this meter around a wire to measure the current flowing through the wire without unplugging it!
Features:
- digital clamp meter
- 3 1/2 LCD display with automatic polarity indication
- data-hold function
- AC current measurements: max. 1000A
- insulation test: max. 2000Mohm (if used with optional DCMIT)
- voltage measurements: AC (max. 750V) and DC (max. 1000V)
- resistance measurements: max. 20Kohm
- with carrying bag
- DC voltage: 1000V
·basic accuracy: ± 0.8%
·input impedance: > 9Mohm
·maximum input: 1000V - AC voltage: 750V
·basic accuracy: ±1.0%
·input impedance: > 9Mohm
·maximum input: 750V - AC current: 200/1000A
·basic accuracy: ±2.0%
·overload protection: 1200A for 60 seconds - resistance: 200/20k (insulation test : 20M/2000M)
·basic accuracy: ±1.0% (±2.0% for insulation test)
·overload protection: 500V - overrange: yes "1"
- continuity buzzer: yes
- low-battery indication: yes "BAT"
- maximum display: 3 1/2
- ranging mode: manual
- data hold: yes
- backlight: no
- dimensions: 9.1" x 1.5" x 3.5"
- weight (with battery): ± 11.3oz
- power supply: 9V battery (incl.)
- accessories: manual / test leads / battery / carrying bag
- auto power-off: no
-
Brand
-
ReferenceTS1733
-
In stock2 Items
-
EAN13836479002081
