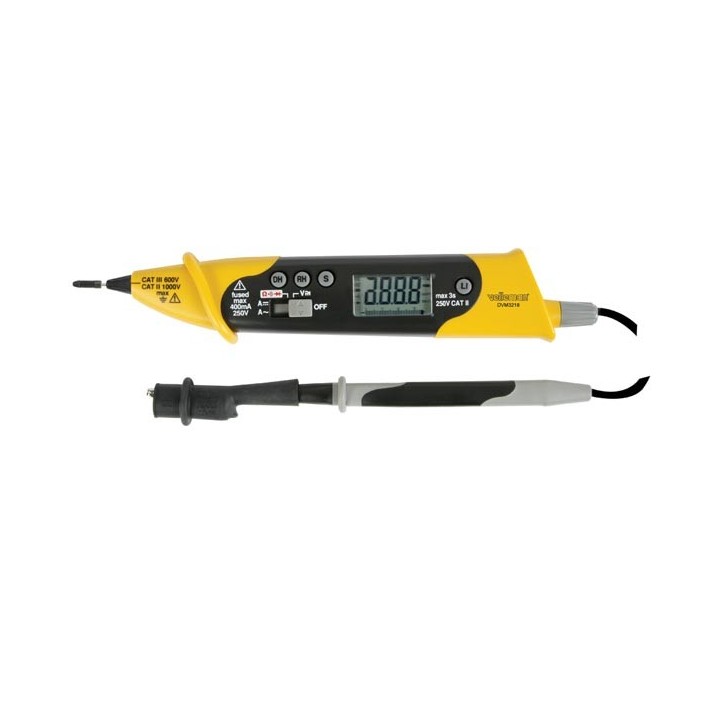

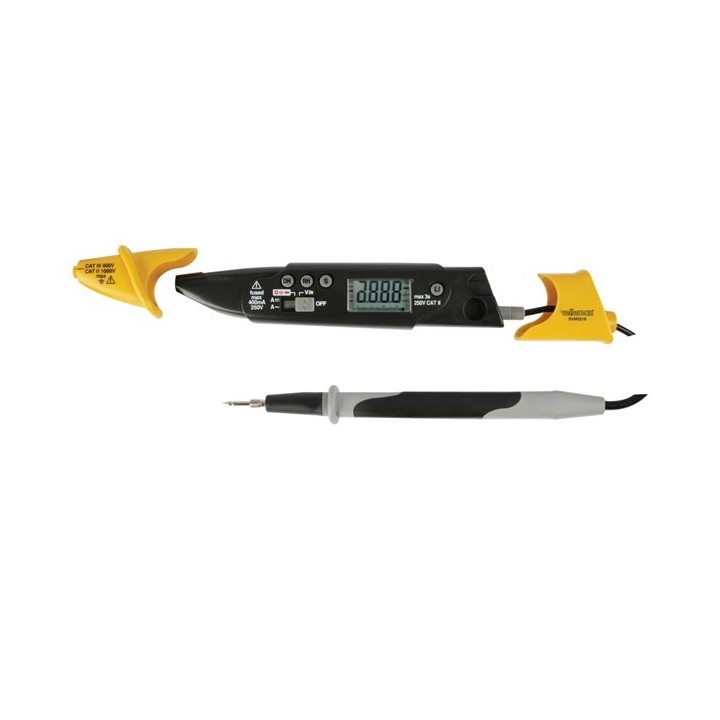

Pen Multimeter

Pen Style Multimeter that allows you to probe for voltage, current and resistance in a small form-factor. Useful for continuity testing.

More details

Availability: SHIPS TODAY

Last Updated: 01/27/2023

Tinkersphere

TS2874

$39.99

Features

  • auto range or manual range
  • data-hold function
  • auto power-off
  • diode and continuity test
  • voltage measurements: AC and DC 600V max.
  • current measurements: AC 34mA and DC 340mA max.
  • resistance measurements: 34Mohm max.
  • fuse protection: F500mA / 250V
  • compliance: IEC1010 CATII 1000V, CATIII 600V

Specifications

  • DC voltage: 340mV/3.4V/34V/340V/600V
    • basic accuracy: ± 0.8% for 340mV range / ± 1.0% for 3.4V~340V range / ± 1.2% for 600V range
    • input impedance: 10Mohm
    • maximum input: 1000Vdc
  • AC voltage: 3.4V/34V/340V/600V
    • basic accuracy: ± 1.2% for 3.4V~340V range / ± 1.5% for 600V range
    • input impedance: 10Mohm <100pF
    • frequency range: 40-400Hz
    • maximum input: 1000V
  • DC current: 34mA/340mA
    • basic accuracy: ±1.5%
    • overload protection: 0.4A / 250V fuse
  • AC current: 34mA/340mA
    • basic accuracy: ± 1.8% for 34mA range / ± 2.0% for 340mA range
    • overload protection: 400mA/250V fuse
  • resistance: 340/3.4K/34K/340K/3.4M/34M
    • basic accuracy: ±0.8% for 340 Ohm range / ±1.2% for 3.4K~340K range / ±2.0% for 3.4M range / ± 3.0% for 34M range
    • overload protection: 500V
  • overrange: yes "OL"
  • continuity buzzer: yes
  • transistor test: no
  • diode test: yes 1.0mA (open circuit voltage = 3.4V DC)
  • low-battery indication: yes
  • maximum display: 3400
  • ranging mode: manual or automatic
  • data hold: yes
  • backlight: no
  • dimensions: 9" x 1.4" x 0.8"
  • weight (with battery): approx. 7oz
  • power supply: 2 x 1.5V LR44 batteries (batteries included)

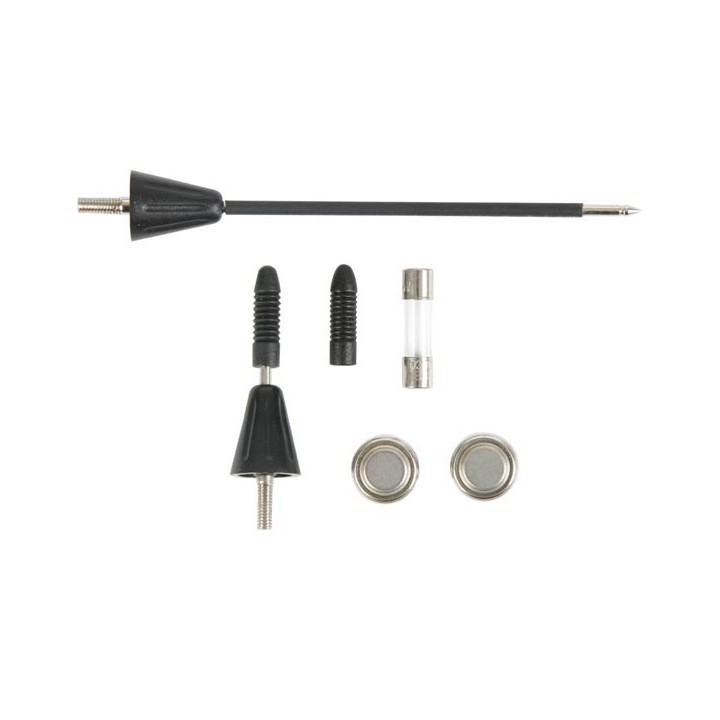

  • accessories: manual / battery
  • auto power-off: yes
