Game HAT for Raspberry Pi Zero 2, W, 5B, 4B, 3B, 3B+, 2B, A+ B+ Raspbian & Retropie

Tinkersphere
$24.90

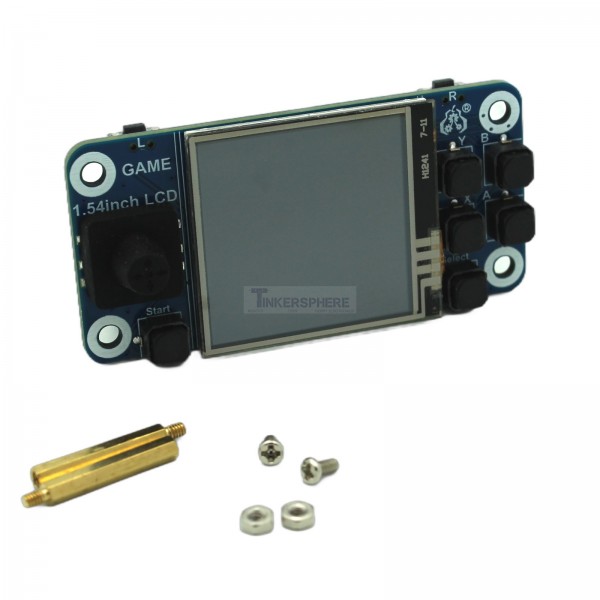

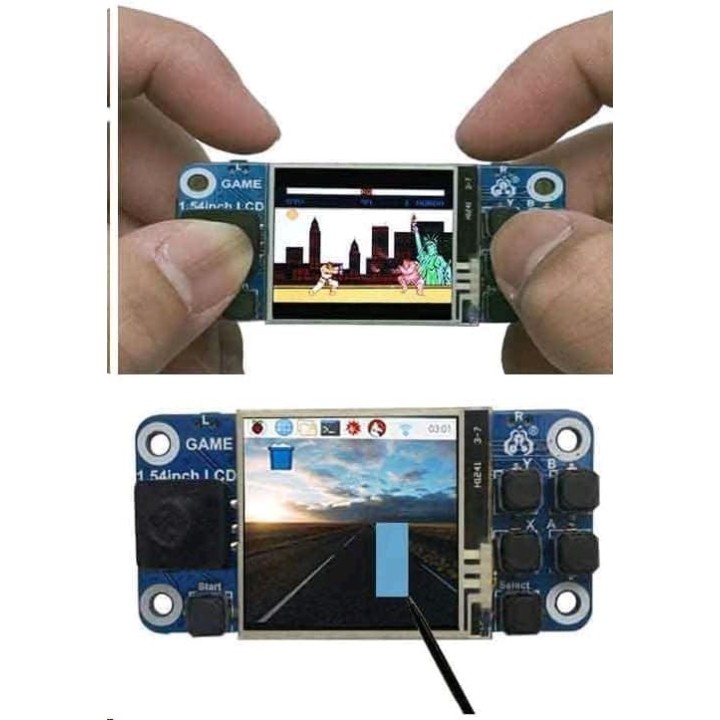

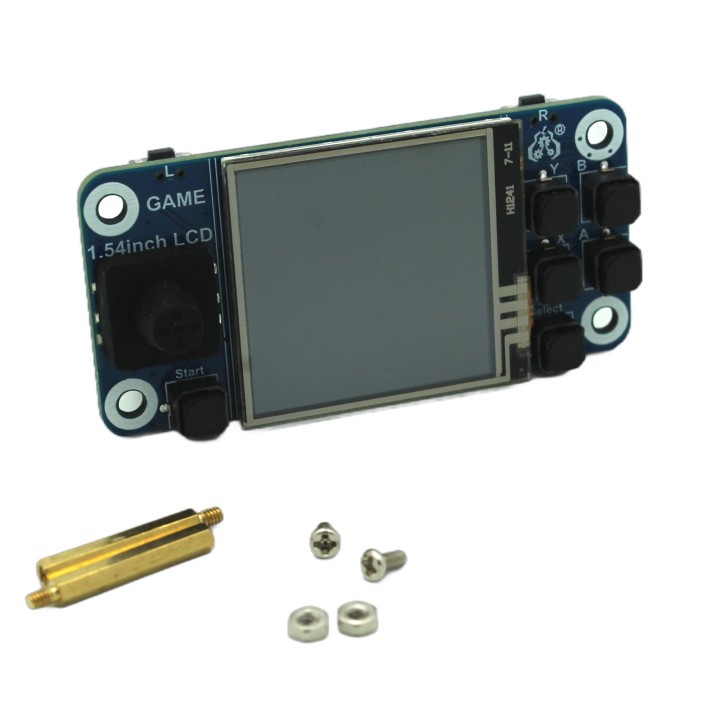

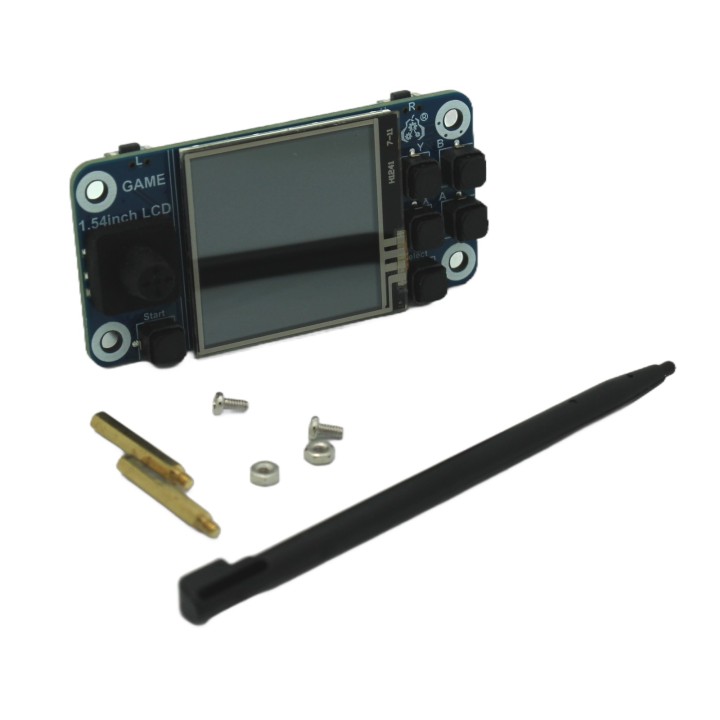

This Game HAT will turn your Raspberry Pi into a classic game console in a second, fun to set up, use and play.

✅SHIPS TODAY
Share

Game HAT Features

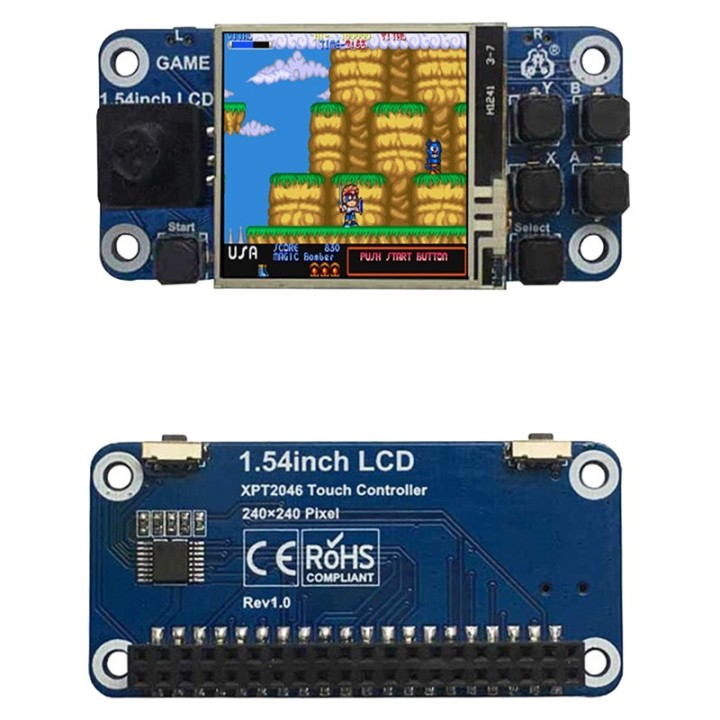

  • 1.5inch IPS screen, 240×240 resolution
  • 60 fps experience, smoothly display, no more frame loss
  • Compatible with Raspberry Pi Zero/Zero W/Zero WH/Zero 2/A+/B+/2B/3B/3B+/4B
  • (The software Resolution is set to 480x480 for larger display area)
  • With touch function (The game doesn't have touch functionality because the Retropie OS doesn't support touch)
  • Works with Raspbian and Retropie OS images and drivers
  • Operating voltage: 3.3V
  • Interface: SPI
  • LCD type: TFT
  • Display Controller: ST7789V

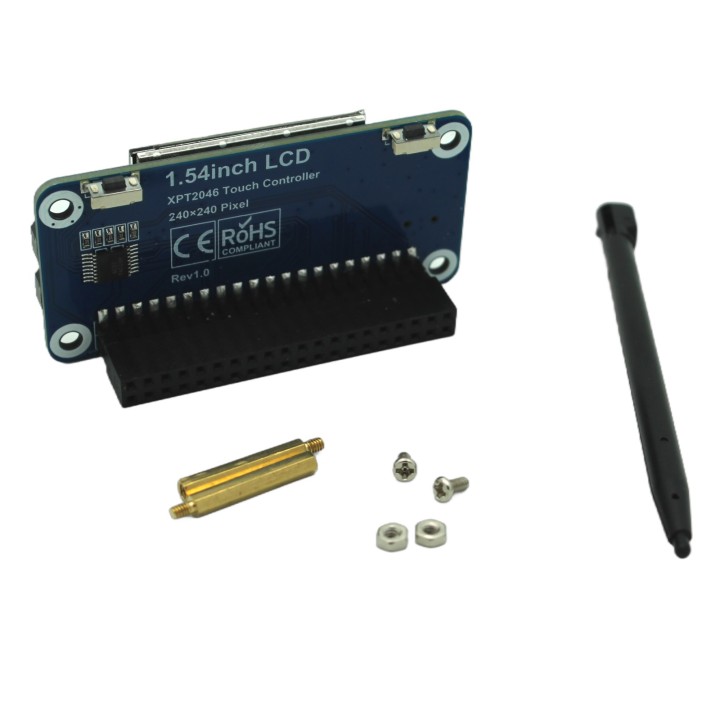

  • Touch Controller: XPT2046(The Retropie OS don't support touch)
  • Resolution: 240*240 （software 480x480)

Pre-configured Images

->Raspbian

->Retropie (Not work for Pi5)


Install the driver yourself image

->Work with Retropie (Not work for Pi5)



  • Display configuration tutorial ：

           fbcp-9341:higher fps or device tree:higher compatibility



->Work with Raspbian-Bookworm ( Work  For All Pi' Version)

->Work with Raspbian-Old buster&bullseye (Not work for Pi5)


ROMs



  • rom-500.zip   (Other game roms , unzip it and copy it to nes folder )
  • 700in1.zip (Just copy it to nes folder not need unzip it )



Driver , Code and configuration files





Software



Chip manual




Schematic





Size file

Pinout

  • Brand
  • Reference
    TS4334
  • In stock
    2 Items
