Raspberry Pi Compute Module 3 Maximize

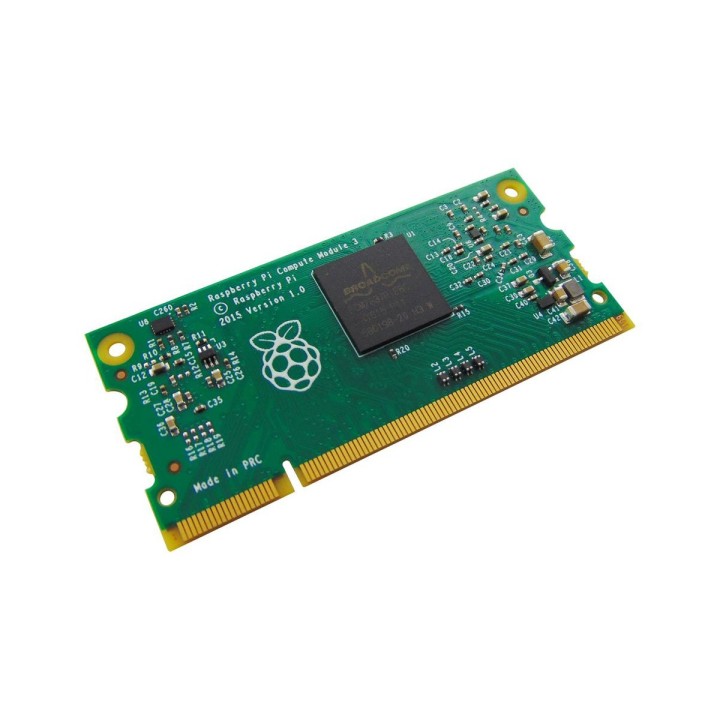

Raspberry Pi Compute Module 3

This Raspberry Pi Compute Module 3 is a microprocessor board that fits the power of a Raspberry Pi computer into a DDR2-SODIMM sockets for embedded use.

More details

Availability: Sold Out
Call to
Backorder

Tinkersphere

TS3696

$52.49

The Raspberry Pi Compute Module 3 has the form factor of a DDR2-SODIMM RAM board and has extra IO interfaces over and above what is available on the standard Raspberry Pi models. Use the Raspberry Pi Compute Module 3 to start building embedded Raspberry Pi products for mass production.

Includes:

  • 1 Raspberry Pi Compute Module 3 (CM3)

Features:

  • CM3 contains a BCM2837 processor (as used on the Raspberry Pi 3), 1GB LPDDR2 RAM and 4GB eMMC Flash
  • The BCM2837 processor is an evolution of the BCM2835 processor that can address more RAM (up to 1GB) and the ARM CPU complex has been upgraded from a single core ARM11 in BCM2835 to a Quad core Cortex A53 with dedicated 512Kbyte L2 cache. All IO interfaces and peripherals stay the same and hence the two chips are largely software and hardware compatible.
  • Peripherals:

    48x GPIO
    2x I2C
    2x SPI
    2x UART
    2x SD/SDIO
    1x HDMI 1.3a
    1x USB2 HOST/OTG
    1x DPI (Parallel RGB Display)
    1x NAND interface (SMI)
    1x 4-lane CSI Camera Interface (up to 1Gbps per lane)
    1x 2-lane CSI Camera Interface (up to 1Gbps per lane)
    1x 4-lane DSI Display Interface (up to 1Gbps per lane)
    1x 2-lane DSI Display Interface (up to 1Gbps per lane)

  • Software:

    ARMv6 (CM1) or ARMv7 (CM3, CM3L) Instruction Set
    Mature and stable Linux software stack
    Latest Linux Kernel support
    Many drivers upstreamed
    Stable and well supported userland
    Full availability of GPU functions using standard APIs
