WXD3-13-2W 200 ohm Rotary Multi-turn Wirewound Precision Potentiometer Maximize

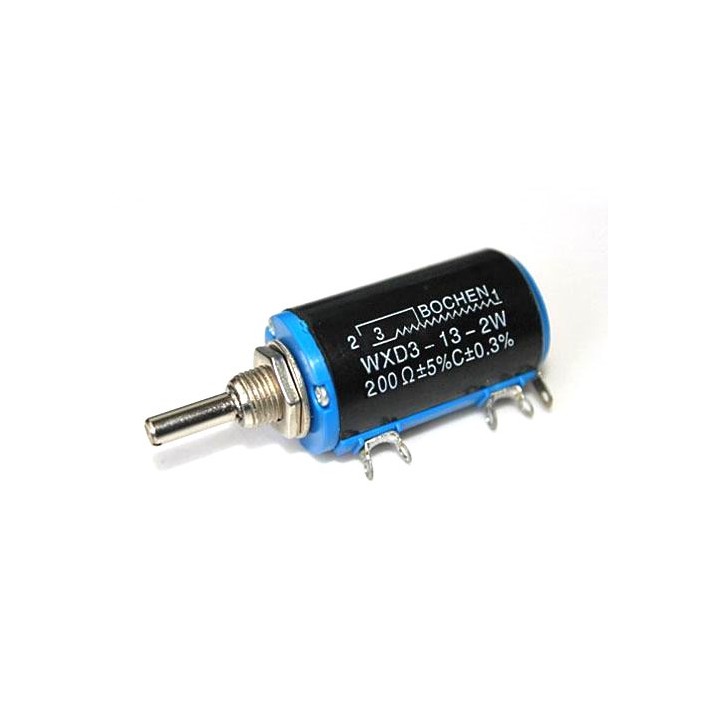

WXD3-13-2W 200 ohm Rotary Multi-turn Wirewound Precision Potentiometer

WXD3-13-2W 200 ohm Rotary Multi-turn Wirewound Precision Potentiometer

More details

Availability: SHIPS TODAY

Last Updated: 12/22/2024

Tinkersphere

TS3487

$3.99

Specifications:

  • Product Name Wire Wound Potentiometer
  • Model No. WXD3-13-2W
  • Type Rotary Potentiometer
  • Power Rating 2W
  • Max. Operating Voltage 160V
  • Resistance Range 200 Ohm
  • Resistance Tolarance ±5%
  • Angle of Rotation 3600±20 Degree
  • Torque 3.5-100mN·m
  • Shaft Diameter & Length 4 x 12mm / 0.157" x 0.47"
  • Threaded Collar Diameter 7.8mm / 0.31"
  • Overall Size 20.5 x 58mm / 0.8" x 2.3"(Diameter*Length)
  • Weight 250g
  • This Wirewound Potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipments.
