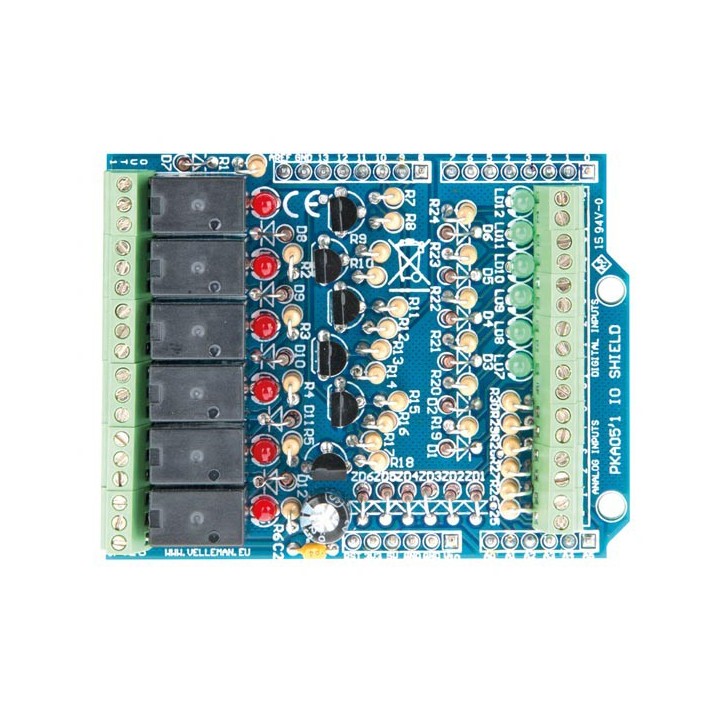

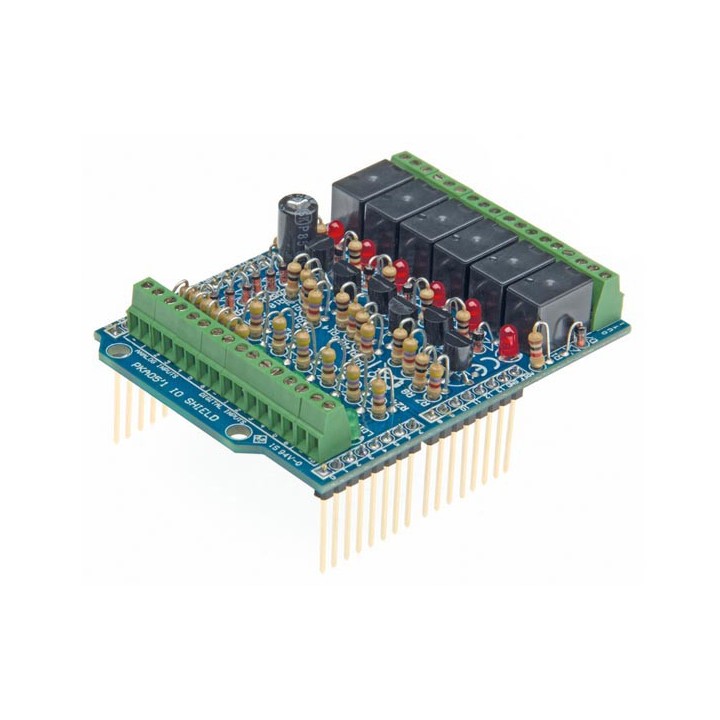

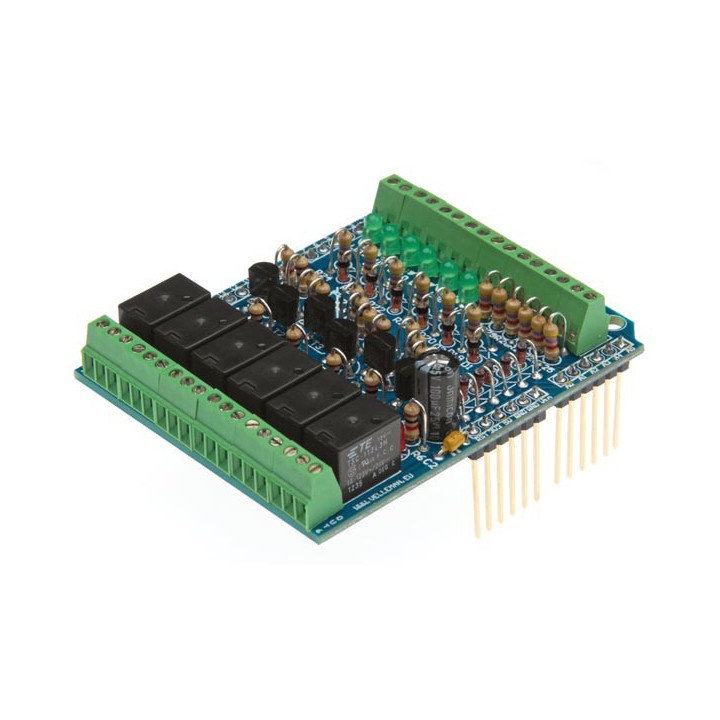

I/O Relay Shield for Arduino

This I/O Shield for Arduino is great when you want neat inputs and outputs to the Arduino UNO. With the I/O Shield you can easily connect loose wires into your Arduino UNO securely without worrying about them coming loose. In addition, you can hook up thick or stranded wire into your Arduino with ease using the onboard Screw-Terminals for each input. Onboard relays allow you to control things up to 120V & 1 A without burning our your Arduino! The LEDs allow for easy debugging showing you exactly when each port is on or off!

Features:

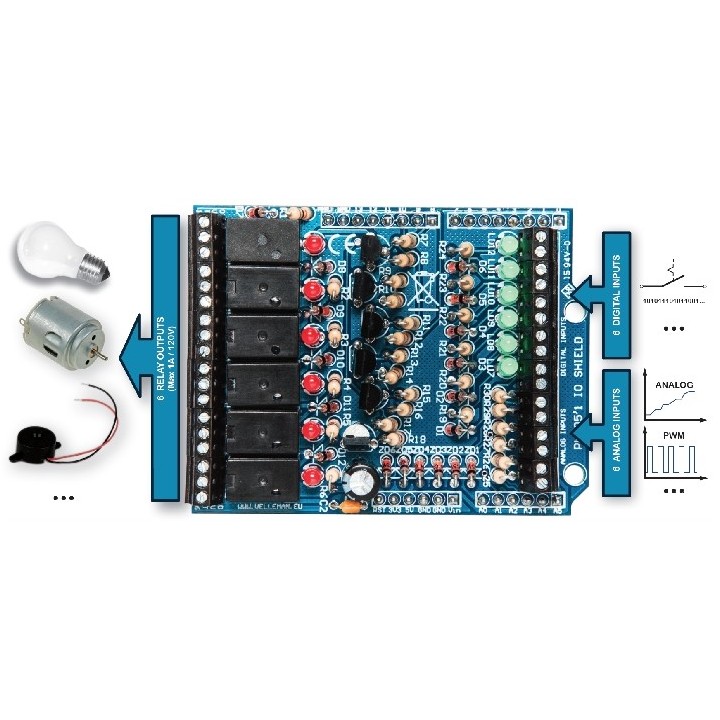

• 6 relay outputs
• 6 analog inputs
• 6 digital inputs
• Downloadable Sample Sketch (See the Download Tab above)

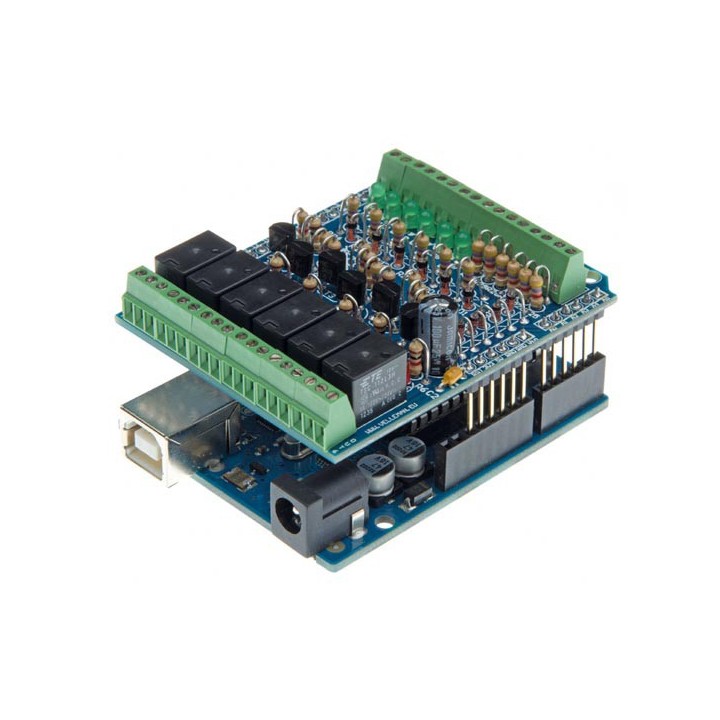

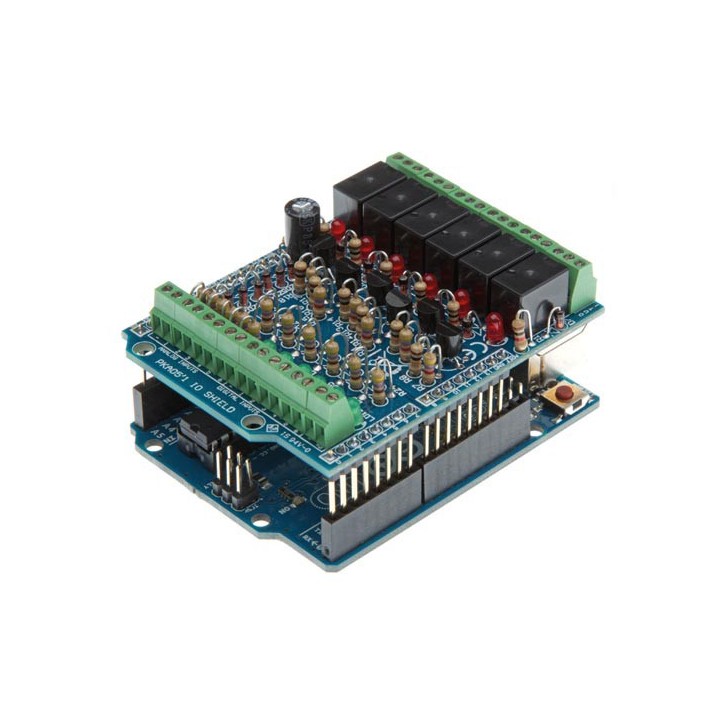

• Stackable design: the shield can be stacked with other shields
• Compatible with Arduino UNO (not included)

Specifications:

• 1 A (max.) load per output
• 120 V max. per output
• Uses pin 8 to 13 as outputs, pin A0 to A5 as analog inputs, and pin 2 to 7 as digital inputs
• Dimensions: 68 x 53mm / 2.67 x 2.08"
