MHF4 to U.FL PCB Antenna Size Converter UFL IPEX IPX

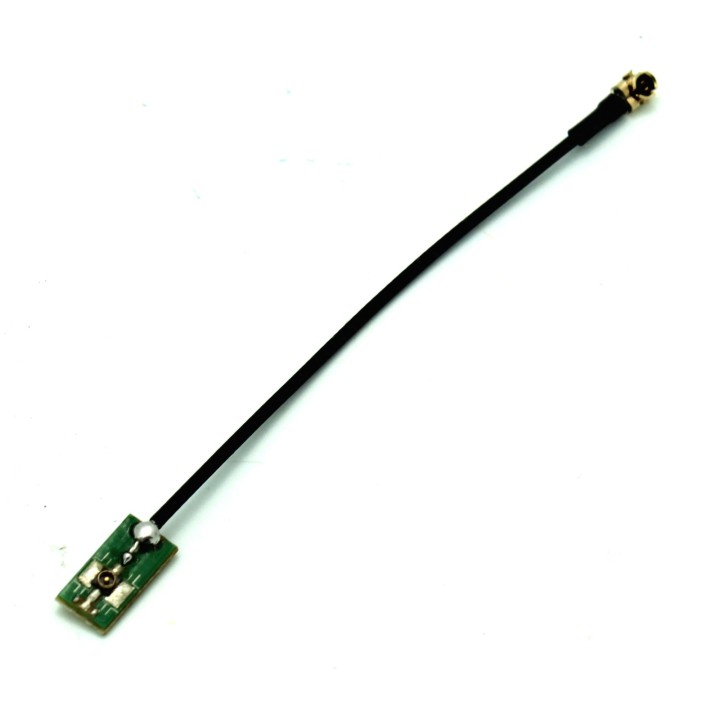

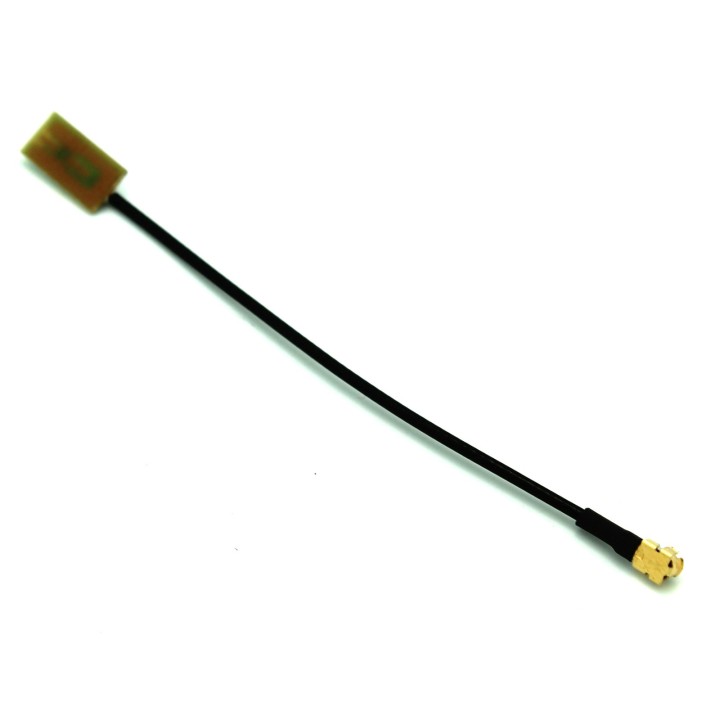

MHF4 to U.FL PCB Antenna Size Converter UFL IPEX IPX. 1 UFL U.FL PCB 0.81mm IPX Plug Right Angle to MHF4 PCB socket.

More details

Availability: SHIPS TODAY

Last Updated: 04/16/2024

Tinkersphere

TS3980

$4.99

Have a question? 0 answered questions

Features:

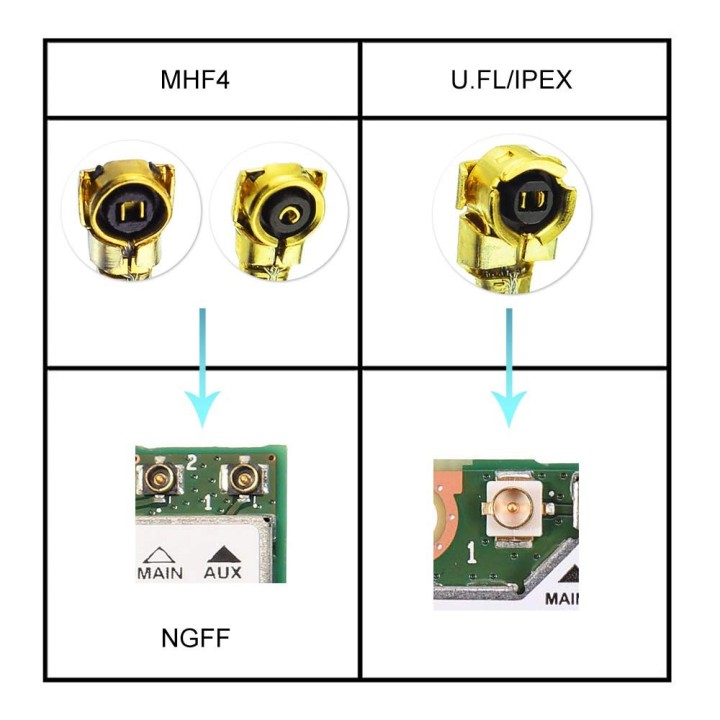

  • Useful for adapting between uFL/u.FL/IPX/IPEX antenna connections on printed circuit boards and MHF4 antenna cables

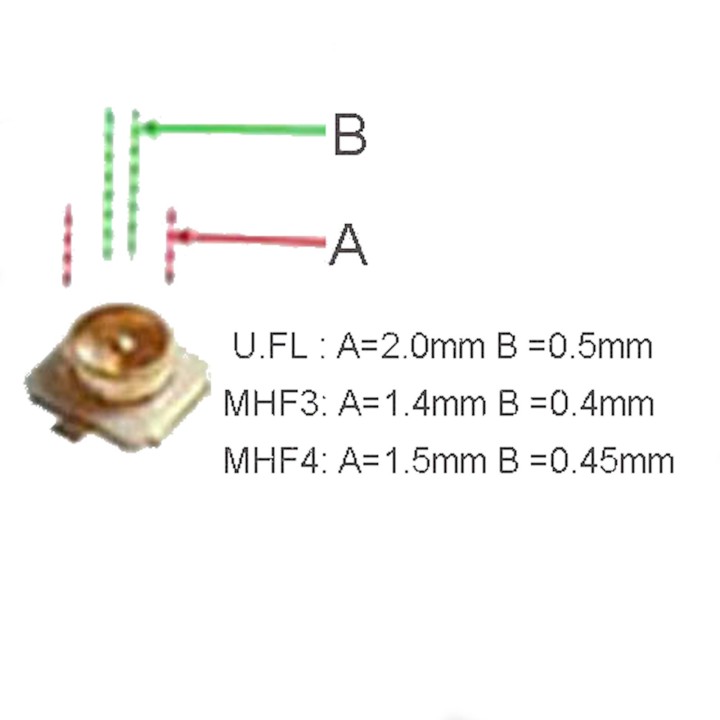

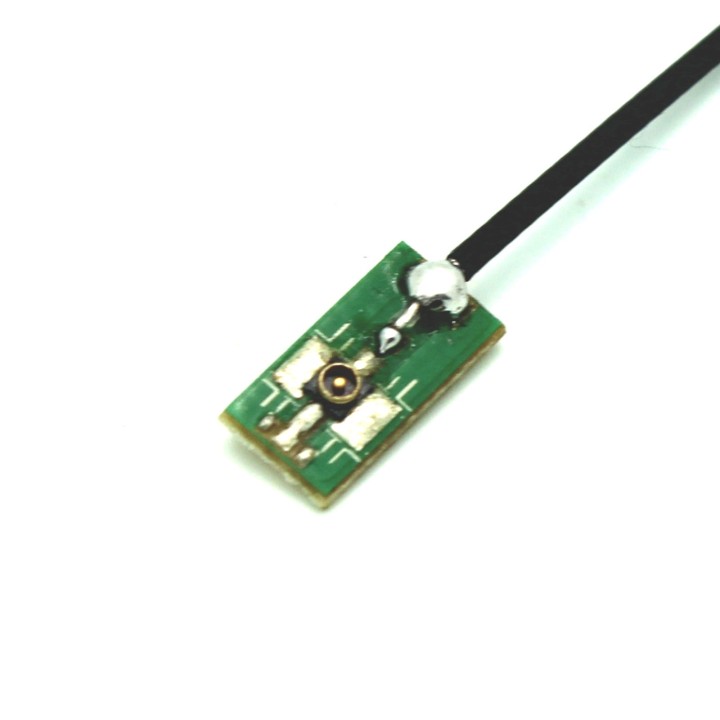

  • Side A : MHF4 on PCB ( center is male pin )

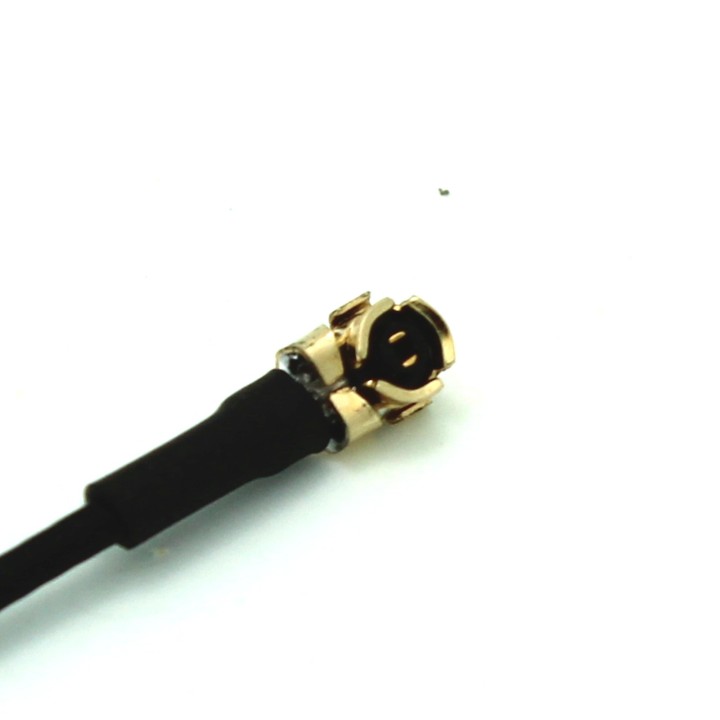

  • Side B : uFL/u.FL/IPX/IPEX SMD plug right angle connector ( center hole is female pin )
  • Cable Type : OD 0.81mm diameter RF Pigtail Coax
  • Cable Length : 2 inches ( 5cm )
  • Impedance : 50 ohm
  • Gold plated or Nickel plated contacts
  • Salt spray test : >= 48 hours, enhanced corrosion resistance
  • Mounting : machined brass construction crimp & soldered mount
  • Connection Protection: Black Heat Melt Shrink Tube Versafit or equivalent
  • Operating frequency :0-6 GHZ ( option: 1.2Ghz 2.4Ghz 3Ghz 6Ghz 8Ghz 12Ghz 18G... )
  • Technical characteristics : temp. range : -65 to +165 ( PE cable range : -55 to +85 )
