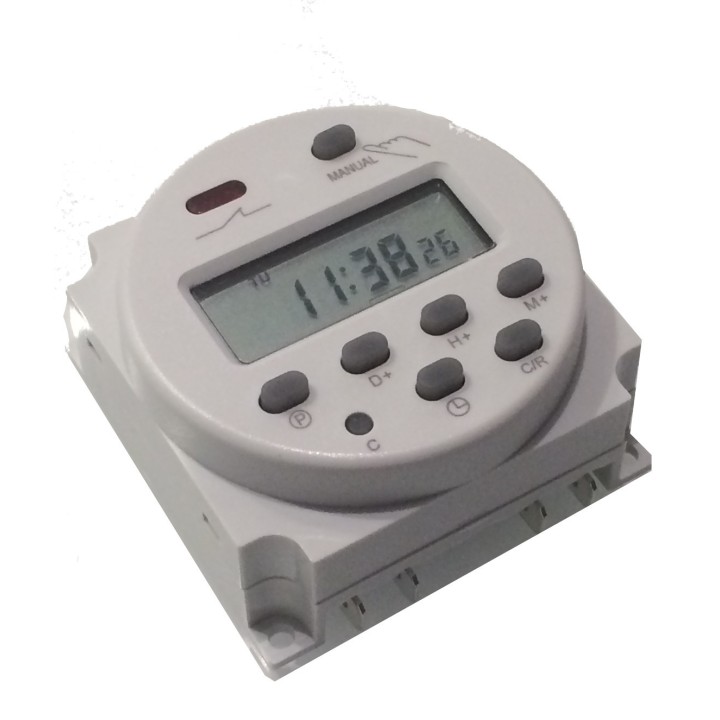

12V 16A Programmable Timer Relay

Features:

• Control up to 16A devices
• Weekly programmable
• Set the day of the week and time to turn on and off
• Power Input: 12V DC
• Max Current of Load: 16A
• LCD Display
• Full Time Range: 1 minute to 168 hours
• Contact Capacity: 16A(8)A, 250V AC
• Resistance load: 16A
• Inductive load: 8A
• Internal battery: 1.2V/40mA (rechargeable)
• Dimensions:approx.60x60x32mm
• Power failure memory: 60 days
• Operating Temperature: -10 to 40°C
• Minimum Interval: 1 minute

• Programmable: 17 time slot settings (week or day)

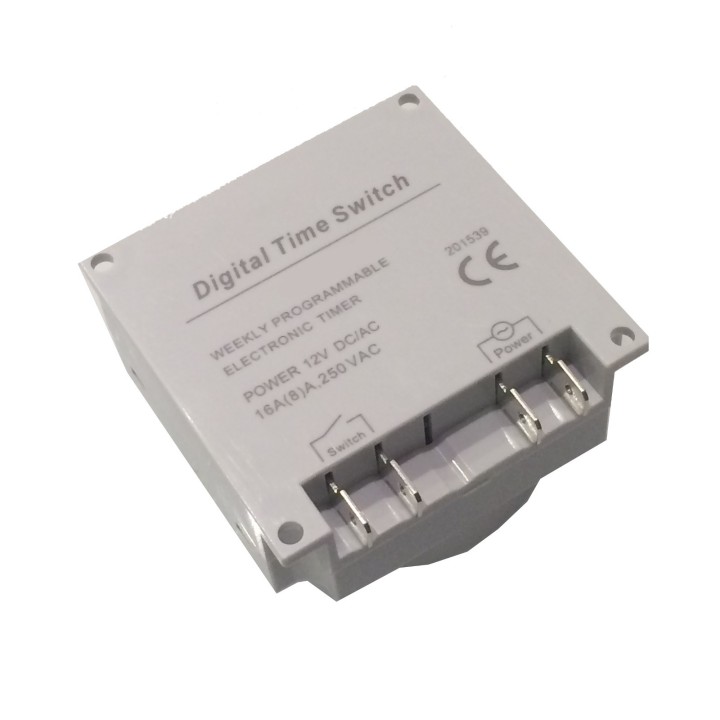

Pinout:

• Power:
  • 12V DC
  • GND
• Switch: (these will be connected when the timer is set to ON)
  • Terminal A
  • Terminal B
