OR Gate: 74HC32

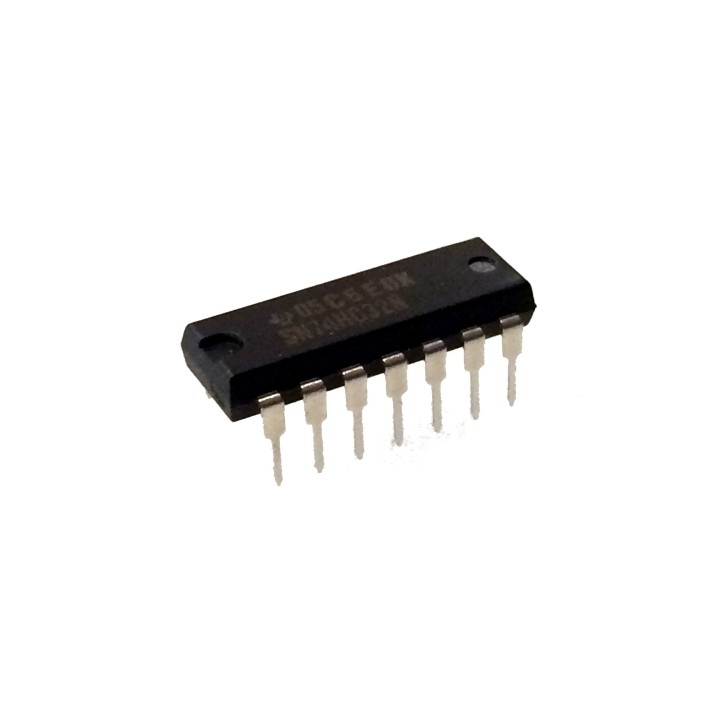

This chip includes 4 basic digital logic OR gates. Each OR gate takes in 2 inputs on the left side of the chip and gives out a HIGH output on the right side of the chip if input 1 OR input 2 is HIGH.

More details

Availability: SHIPS TODAY

Last Updated: 12/21/2024

Tinkersphere

TS-970

$1.99

Have a question? 0 answered questions

Specifications:

  • Basic OR Gate IC
  • Operating Voltage: 2V - 6V
  • 4 2-input OR Gates on-chip
  • Pinout:
    • OR GATE Number 1:

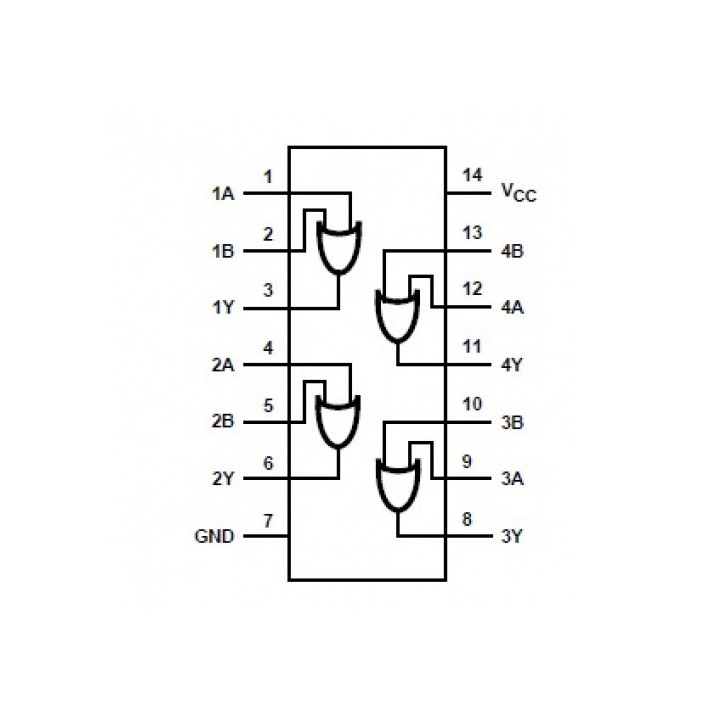

      • Pin 1 & 2: Inputs
      • Pin 3: Output
    • OR GATE Number 2:
      • Pin 4 & 5: Inputs
      • Pin 6: Output
    • OR GATE Number 3:
      • Pin 9 & 10: Inputs
      • Pin 8: Output
    • OR GATE Number 4:
      • Pin 12 & 13: Inputs
      • Pin 11: Output
    • Power:
      • Pin 14
    • Ground:
      • Pin 7



Click here to download the datasheet.
