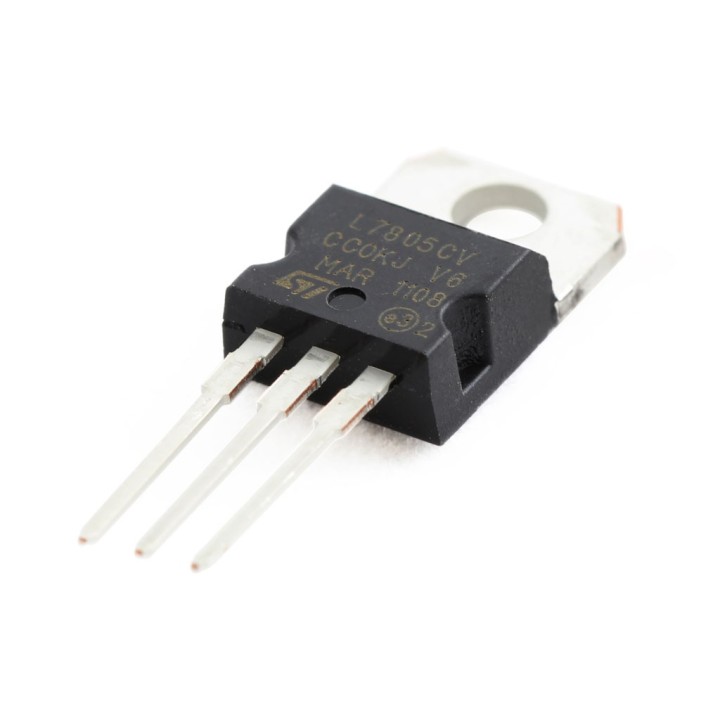

5V Voltage Regulator - L7805CV

Use this 5V Voltage Regulator to ensure you have a solid 5V signal at all times. This L7805CV will give you a 5V signal when hooked up with any battery between 7.5V and 35V! It's also virtually indestructible.

More details

Availability: ✅ Ships Today

Last Updated: 09/15/2025

Tinkersphere

TS-261

$1.45

Have a question? 0 answered questions

Voltage regulators are useful for robotics projects where you have a battery that drains and loses voltage over time. Using a voltage regulator can ensure that you have a steady voltage for your standard 5V CMOS TTL circuits and chips while using a battery that's draining. This L7805CV will give you a 5V signal when hooked up with any battery between 7.5V and 35V! Employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible!

Specifications:

  • Output Voltage: 4.75V - 5.25 V
  • Input Voltage: 7.5V - 35 V
  • Max Output Current: 1.5 Amps
  • Operating Temperature: 0 C - 125 C

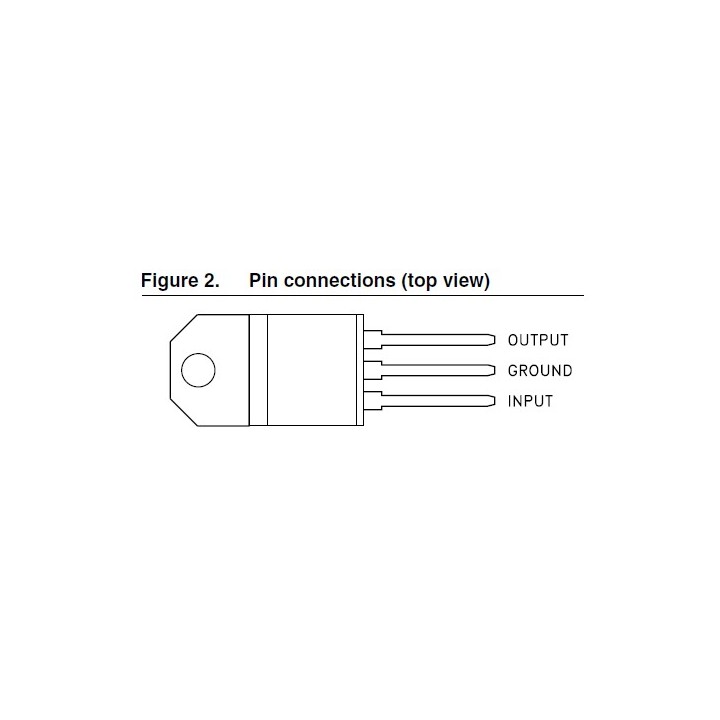

NOTE: The pinout on this regulator is not the same as the pinout of our 3.3V Voltage Regulator (see the image above for pinout).

Click here to download the datasheet.
