Remote Control 1 Channel 12V DC Relay Switch - Receiver Relay Module Only

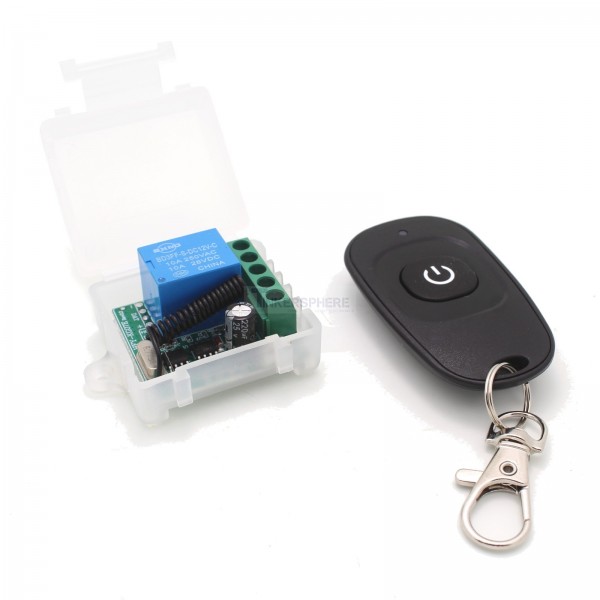

12V Wireless Universal Remote Control Relay Module – 433MHz RF Receiver Only

Technical Specifications:

• Input Voltage: DC 12V

• Receiver Sensitivity: Greater than -97 dBm

• Transmission Range: Over 100 meters in open space

• Decoding Method: MCU-based software decoding

• Remote Storage Capacity: Supports up to 20 remotes

• Compatible Remote Type: EV1527 learning code

• Working Modes: Momentary, Toggle, Latching (Time Delay: 5s, 10s, 15s)

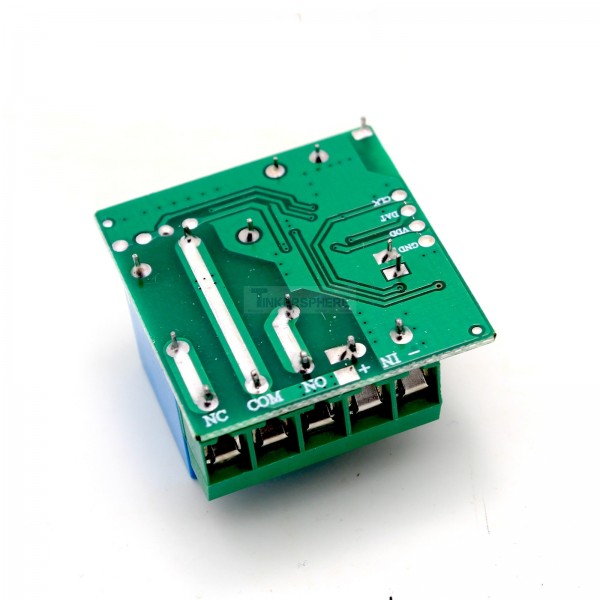

• Output Terminals: NO (Normally Open), NC (Normally Closed), COM (Common)

• Remote Control Battery: 2 x 3V CR2016 button cells

• Max Input Power: 250V

Product Highlights:

✅ Universal 433MHz Gate Remote Control

Designed to be a reliable universal solution for gate automation systems. Compatible with most 433MHz receivers, allowing seamless access control to gates, garages, and more.

✅ DC 12V 10A Relay Receiver Module

Equipped with a high-performance 10A relay, the receiver ensures stable and safe operation for a variety of low-voltage applications.

✅ Multi-Purpose Use

Ideal for remote control of garage doors, LED lights, home automation systems, or other electronic devices requiring a wireless switch.

✅ Compact and Easy to Install

The mini module form factor allows for quick installation in tight spaces without disrupting your existing setup.

✅ Long-Range and High Sensitivity

Offers a strong signal with an effective range of over 100 meters in open space, making it suitable for indoor and outdoor use.

Programming Instructions:

Resetting/Clearing Codes:

1. Press the learning button on the receiver 8 times.

2. All stored remote codes will be cleared.

3. You’ll need to reprogram remotes after this step.

 Learning Remote Codes (Toggle Mode Example):

1. Press the learning button on the receiver 2 times.

2. The LED turns off, indicating it’s in learning mode.

3. Press the desired button on your remote to pair.

4. Toggle mode: Press once to activate, press again to deactivate.

 Learning with Multiple Buttons:

1. Press the learning button on the receiver 3 times.

2. LED blinks 3 times and stays on.

3. Press button A on the remote – LED flashes 3 times.

4. Press button B – LED flashes 3 times.

5. Wait 3 seconds – LED turns off, pairing successful.

 Momentary & Latching Modes:

For advanced setup, including momentary and timed latching modes, please contact our support team for step-by-step guidance.

Perfect For:

• Gate and garage door automation

• LED light remote switching

• DIY smart home projects

• Remote-controlled electrical appliances

 Package Includes:

• 1 × 433MHz RF Receiver Module (Remote sold separately)
