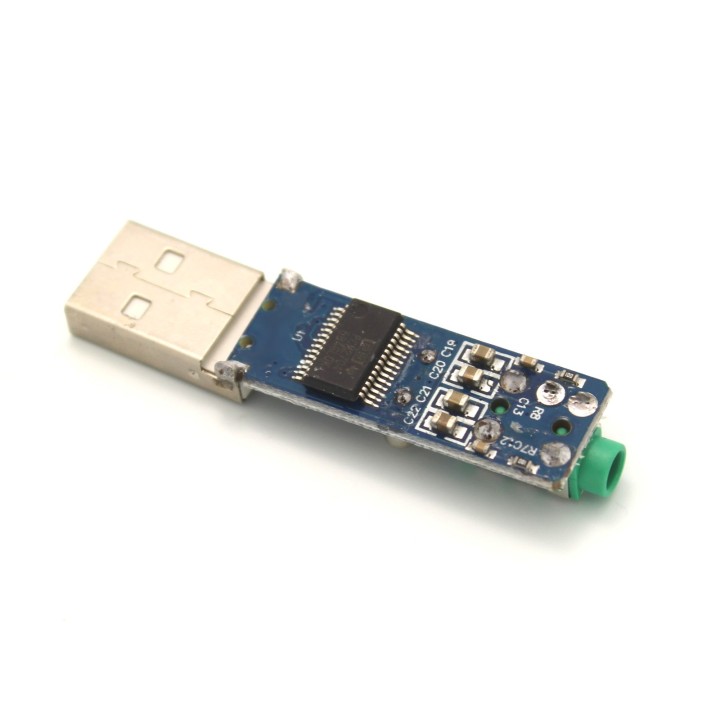

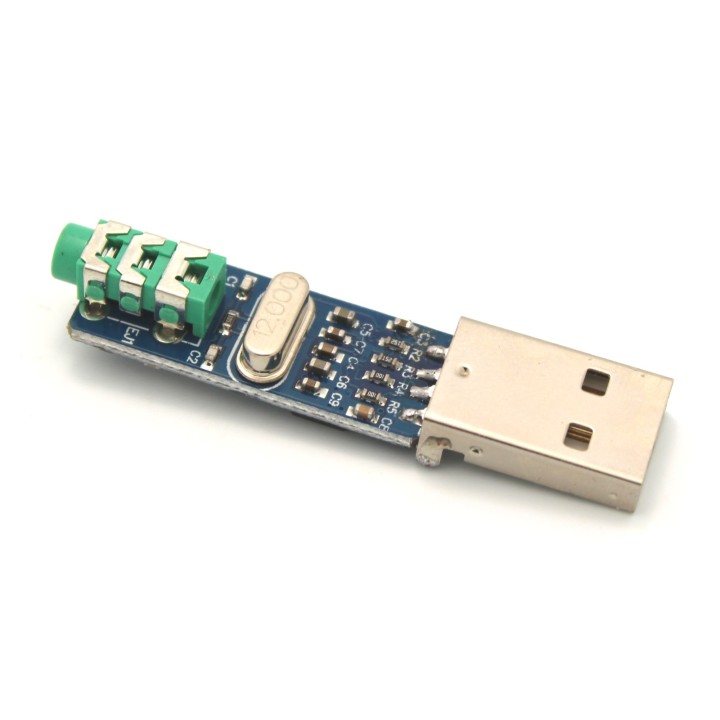

USB DAC for Raspberry Pi
Add Hifi Audio to your Raspberry Pi by just plugging this USB DAC into one of its USB ports! 3.5mm (1/8") jack onboard!
Categories
- Robots
- Parts & Components
- Motors & Wheels
- Breadboard / Perfboard Prototyping
- Components
- Arduino
- BeagleBone Micro PC
- Raspberry Pi
- Sensors
- Cables & Wires
- Batteries & Holders
- Enclosures / Storage
- Power
- Electronic Experiment Kits
- Wearable Electronics
- Audio
- LED Lighting
- LCD Screens
- Wireless Modules
- 3D Printer Parts & Supplies
- PCB Fabrication Supplies
- Mounting Hardware
- Electronics Tools
- Soldering Kits
- Novelties
- Tinkering Apparel
- Young Tinkerers
- Books
Newsletter
Features:
- USB Hifi Audio DAC for Raspberry Pi
- Works with all models of Raspberry Pi
- Chipset: PCM2704
- No external power required
- Operating voltage : 5V DC (via USB)
- Male USB A Plug to 3.5mm (1/8") Audio Out
- Distortion: THD + N: 0.006% (RL> 10 k)
- Distortion: THD + N: 0.025% (RL = 32 )
- SNR: 98dB
- Dynamic range: 98dB
- Output Power: 12mW on the output (headphone) jack (RL = 32 )
- Sampling Rates: 16 Bit, 32k, 44.1k, 48k
- Dimensions: 1.93" x 0.47" (4.9cm x 1.2cm)
