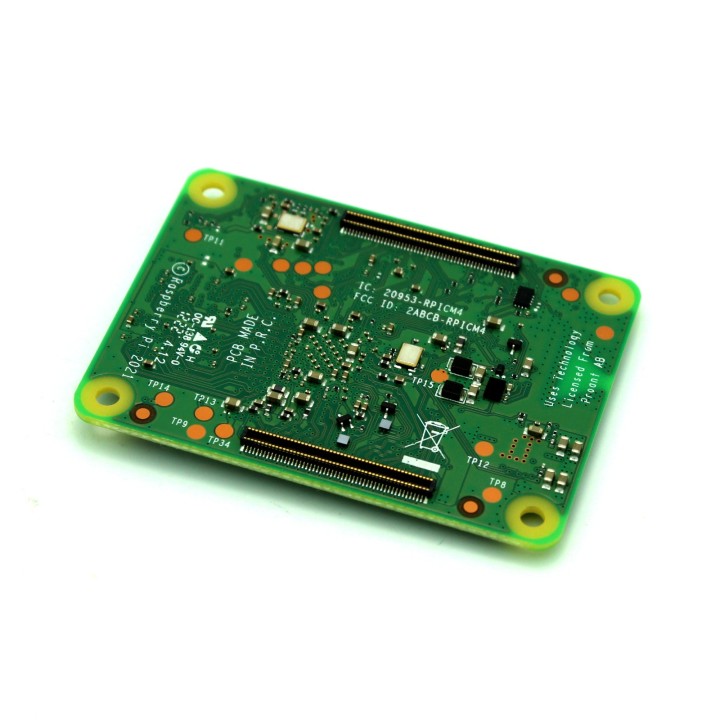

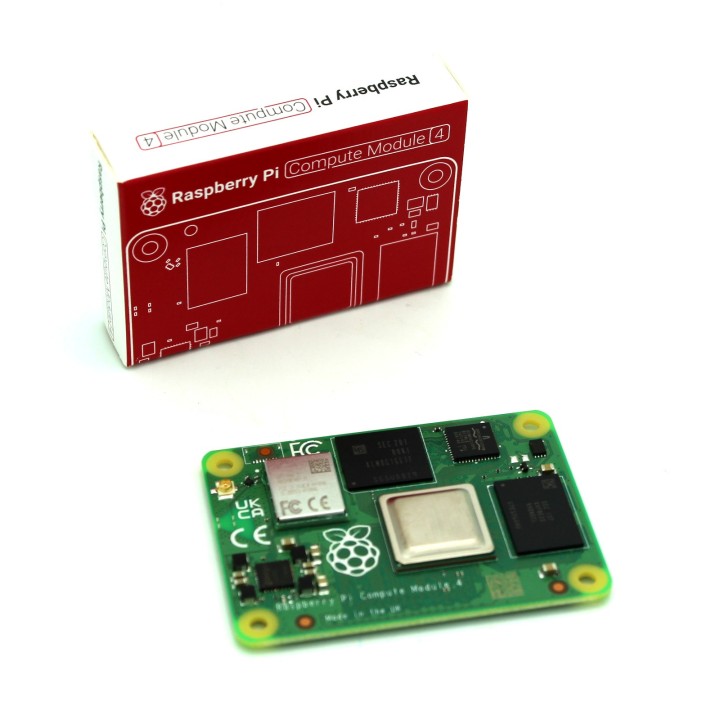

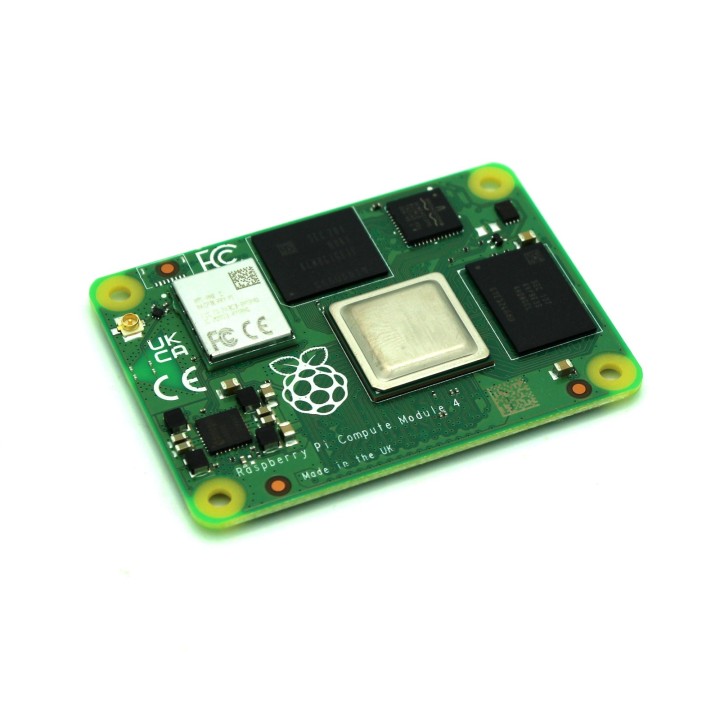

Raspberry Pi Compute Module 4, CM4, 1GB RAM, 8GB eMMC, BCM2711, ARM Cortex-A72 CM4101008

This Raspberry Pi Compute Module 4, CM4, 1GB RAM, 8GB eMMC, BCM2711, ARM Cortex-A72 CM4101008 is a microprocessor board that fits the power of a Raspberry Pi computer into a tiny package for embedded use.

More details

Availability: SHIPS TODAY

Last Updated: 12/06/2024

Tinkersphere

TS4045

$185.50

The Raspberry Pi Compute Module 4 has a 2.16 x 1.57 inch form factor board and has extra IO interfaces over and above what is available on the standard Raspberry Pi models. Use the Raspberry Pi Compute Module 4 to start building embedded Raspberry Pi products for mass production.

Includes:

  • 1 Raspberry Pi Compute Module 4 (CM4)

Features:

  • CM4 contains a BCM2711 processor, 1GB RAM, 8GB eMMC
  • 64-bit quad-core application processor
  • Delivers a step change in performance over its predecessors such as faster CPU cores, better multimedia, more interfacing capabilities.
  • 1GB RAM
  • 8GB eMMC storage
  • VideoCore VI graphics, supporting OpenGL ES 3.x
  • 4Kp60 hardware decode of H.265 (HEVC) video
  • 1080p60 hardware decode and 1080p30 hardware encode of H.264 (AVC) video
  • Dual HDMI interfaces, at resolutions up to 4K
  • Single-lane PCI Express 2.0 interface
  • Dual MIPI DSI display, and dual MIPI CSI-2 camera interfaces
  • Gigabit Ethernet PHY with IEEE 1588 support
  • 28 GPIO pins, with up to 6 x UART, 6 x I2C and 5 x SPI
  • 2.16 x 1.57 inches (55mm x 40mm) board size
  • ARMv6 (CM1) or ARMv7 (CM3, CM3L) Instruction Set
  • Mature and stable Linux software stack
  • Latest Linux Kernel support
  • Many drivers upstreamed
  • Stable and well supported userland
  • Full availability of GPU functions using standard APIs
