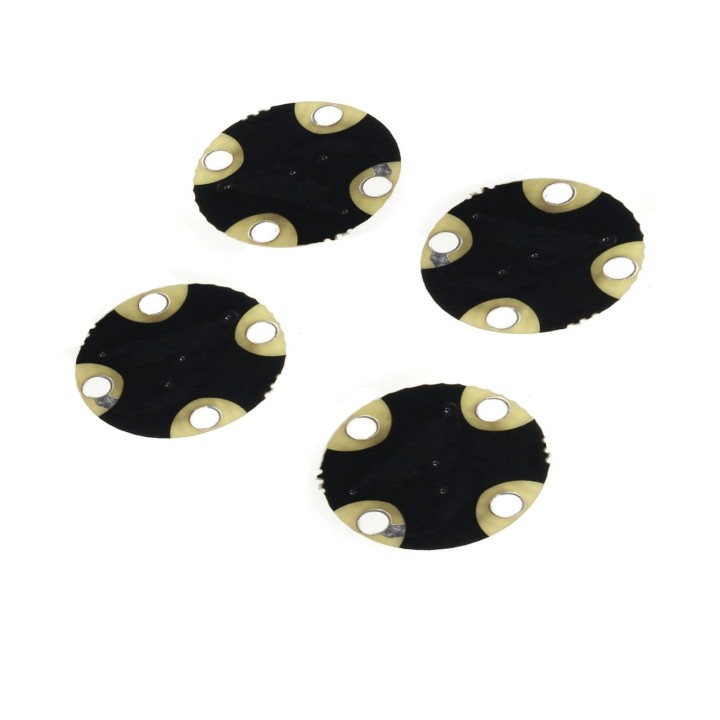

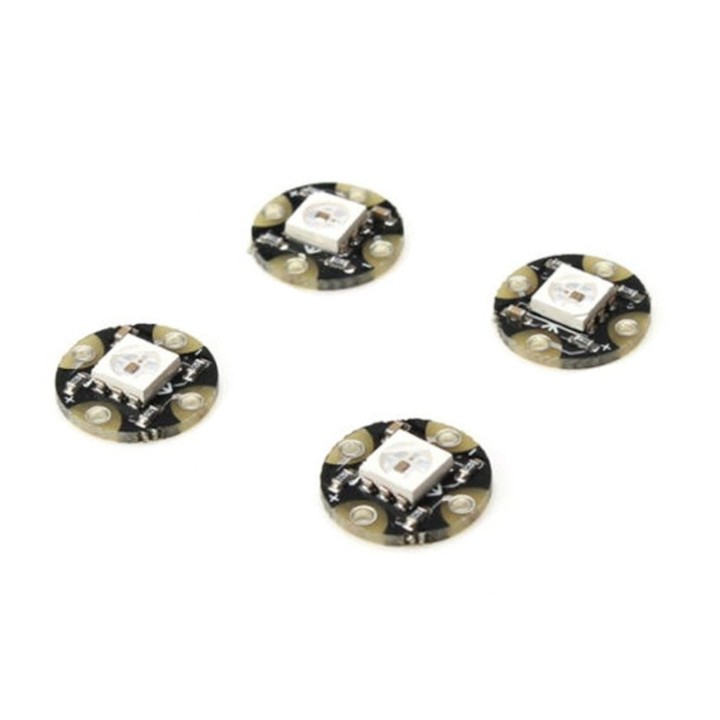

Sewable RGB Smart Pixel Pack (Neopixel & Flora Compatible)

Light up your costumes with this pack of 4 addressable RGB LED pixels with sewable tabs. Sew to your Flora, Gemma, Lilypad or Lilytiny to have digitally addressable rainbow LEDs! Neopixel & Flora Compatible

More details

Availability: SHIPS TODAY

Last Updated: 11/14/2024

Tinkersphere

TS3630

$7.99

These washable RGB LEDs are great for adding dots of color to your costumes where you want to control the color of each individually. Sew to the through the holes on top and bottom using conductive thread and attach to a Lilypad USB, Lilytiny, Flora, Gemma or other micr for fully addressable LEDs. Daisy chain multiple or use just one. These LED Pixels are Neopixel Library Compatible so adding amazing lighting effects to your e-textile projects has never been easier. Machine washable! No soldering required!

If you only want one pixel, consider the Sewable Pixel RGB LED for Lilypad (Neopixel Compatible) which is exactly the same just on a slightly larger board.

Features:

  • 4 Pack of RGB Smart Pixels
  • Machine Washable for costumes and clothing!
  • Sewable tabs so you don't have to solder
  • Operating Voltage: 3.5V - 9V DC  (below 5V, the color will be dimmed)
  • Operating Current: 18.5mA per pixel
  • Max Current: 55mA per pixel
  • Color: RGB (any color)
  • Neopixel compatible
  • Chipset: WS2812 (same as our LED sequins)
  • Daisy-chainable Design
  • Frequency: 800kHz
  • Works with Lilypad USB, Lilypad Starter Kit, Lilytiny, Flora, Gemma, etc
  • Dimensions:
    • Diameter: 0.5" (12.5mm)
    • Thickness: 0.1" (2.5mm)
  • Pinout:
    • Din: Data input
      •   Connect either one of the 2 pads labelled DI to your Arduino, Lilypad USB, Lilytiny, or other sewable board. (There are 2 pins labeled DI so it's easy to access from anywhere on your project but it doesn't matter which one you use.)
    • Dout: Data Output
      • Connect this pin to the next LED if you are chaining multiple LEDs, otherwise, you can ignore these 2 pins (There are 2 pins labeled DI so it's easy to access from anywhere on your project but it doesn't matter which one you use.)
    • +5V: Power
      • Connect this pin to 5V to power the LED
    • GND: Ground
      • Connect this pin to GND (0V) to power the LED



Useful Tutorial: https://learn.adafruit.com/flora-rgb-smart-pixels
