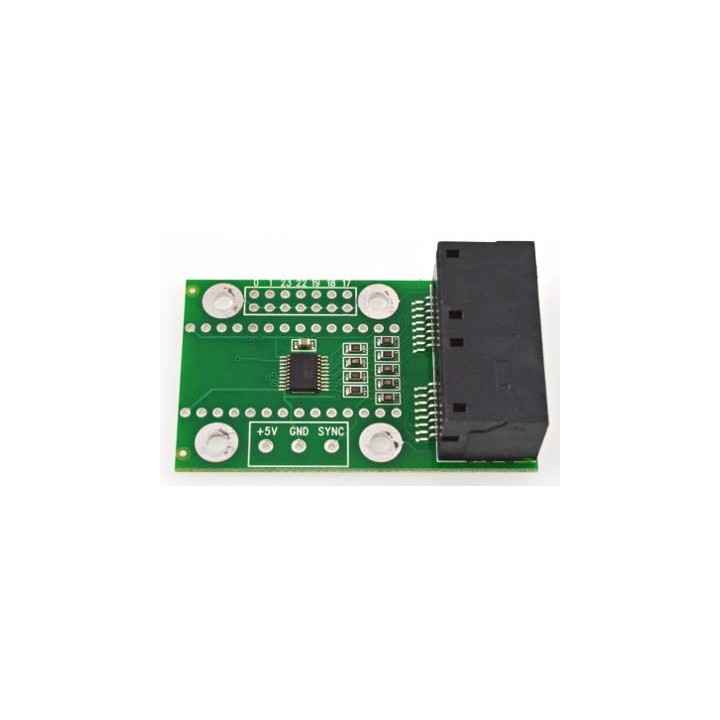

Teensy OctoWS2811 Adapter

Control multiple adressable RGB LED strips from your Teensy with this Octo28-Adaptor from Teensy. Works with WS2811, WS2812, WS2812B and APA102 RGB LED strips.

More details

Availability: SHIPS TODAY

Last Updated: 12/21/2024

Tinkersphere

TS1869

$12.49

Have a question? 0 answered questions

Features:

  • Control WS2811, WS2812, WS2812B and APA102 Addressable RGB LED strips from your Teensy with this adapter!
  • Features a 74HCT245 buffer chip and 100 ohm impedance matching resistors.

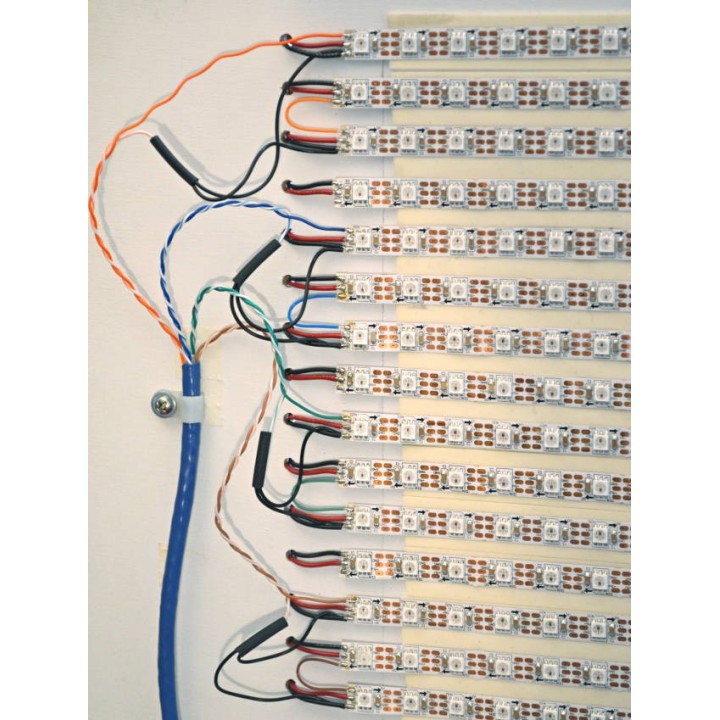

  • CAT6 Ethernet cable is used from this board to the LED strips.
  • CAT6 cable is designed for very high bandwidth, minimal cross-talk between twisted pairs, and 100 ohm impedance, for a very high quality signal.
  • The RJ-45 network jacks allow your LED array to be easily disconnected from the electronics.
  • Four mounting screws are supplied with the OctoWS2811 Adaptor board.

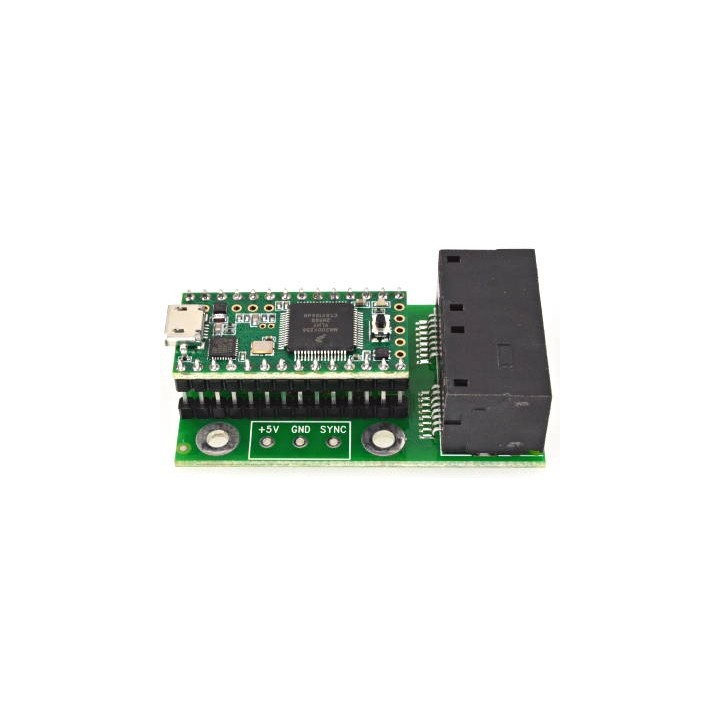

  • Teensy 3.x is added on top of the adaptor using stacking header pins, or a header and socket pair if you wish to be able to remove the Teensy 3.x board.
  • Supports dithering & gamma correction via OctoWS2811 library
