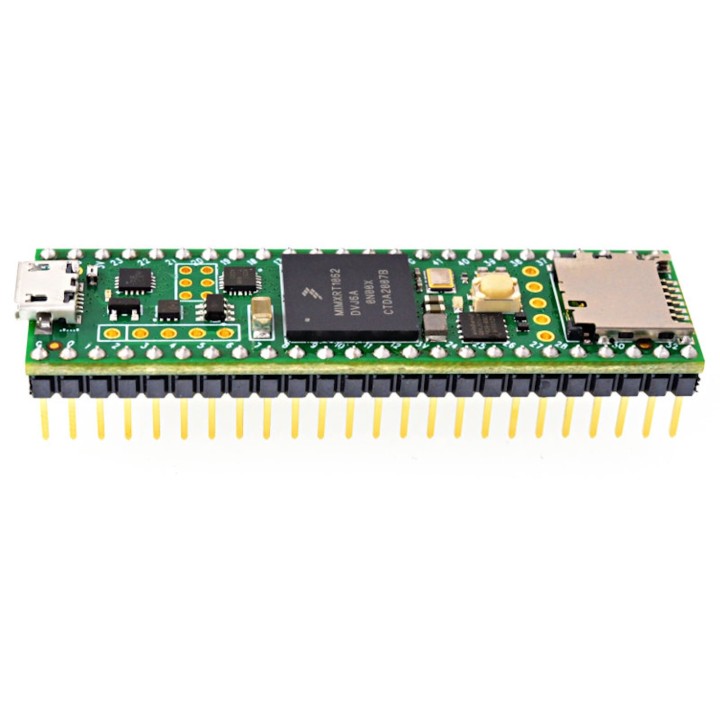

Teensy 4.1 with Ethernet and Header Pins

Use this Teensy 4.1 with your Teensy code to keep your projects small when you need high speed! 600 MHz, with an ARM Cortex-M7 chip and 10 / 100 Mbit ethernet. Assembled with header pins attached.



More details

Availability: SHIPS TODAY

Last Updated: 03/18/2024

Tinkersphere

TS3954

$44.88

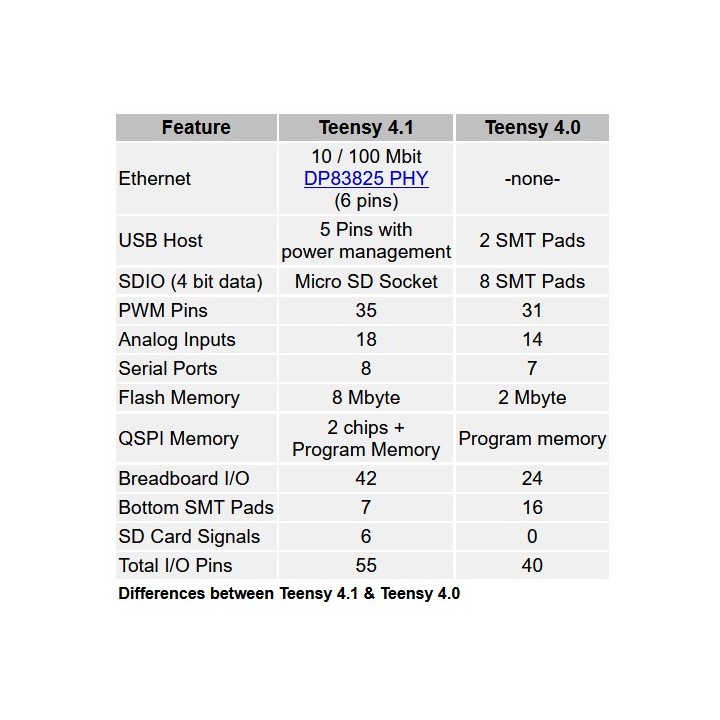

Teensy 4.1 is the larger than the Teensy 4.0, and has more I/O pins and 10 / 100 Mbit ethernet.

Features:

  • Teensy 4.1 with Ethernet and Header Pins
  • Assembled with header pins attached
  • ARM Cortex-M7 at 600 MHz
  • Float point math unit, 64 & 32 bits
  • 7936K Flash, 1024K RAM (512K tightly coupled), 4K EEPROM (emulated)
  • QSPI memory expansion, locations for 2 extra RAM or Flash chips
  • USB device 480 Mbit/sec & USB host 480 Mbit/sec

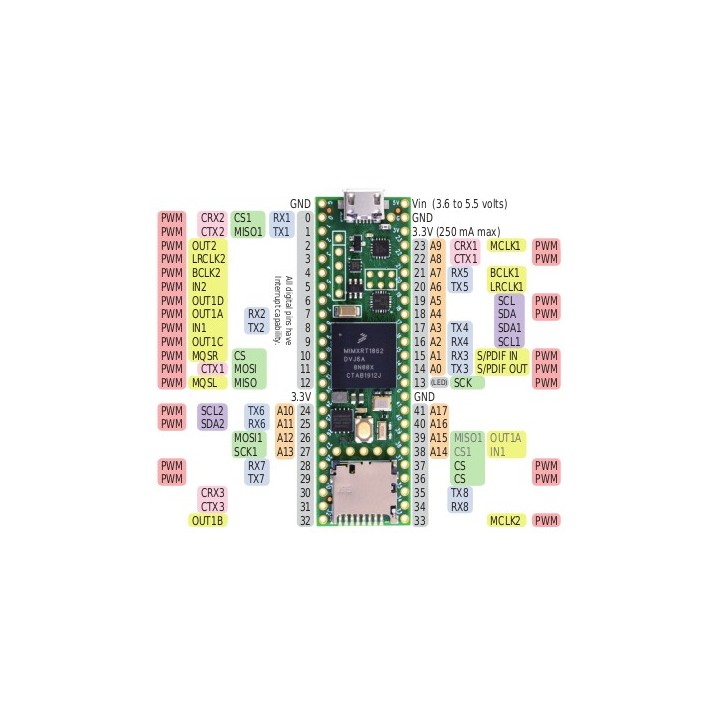

  • 55 digital input/output pins, 35 PWM output pins
  • 18 analog input pins
  • 8 serial, 3 SPI, 3 I2C ports
  • 2 I2S/TDM and 1 S/PDIF digital audio port
  • 3 CAN Bus (1 with CAN FD)
  • 1 SDIO (4 bit) native SD Card port
  • Ethernet 10/100 Mbit with DP83825 PHY
  • 32 general purpose DMA channels
  • Cryptographic Acceleration & Random Number Generator
  • RTC for date/time
  • Programmable FlexIO
  • Pixel Processing Pipeline
  • Peripheral cross triggering
  • Power On/Off management
