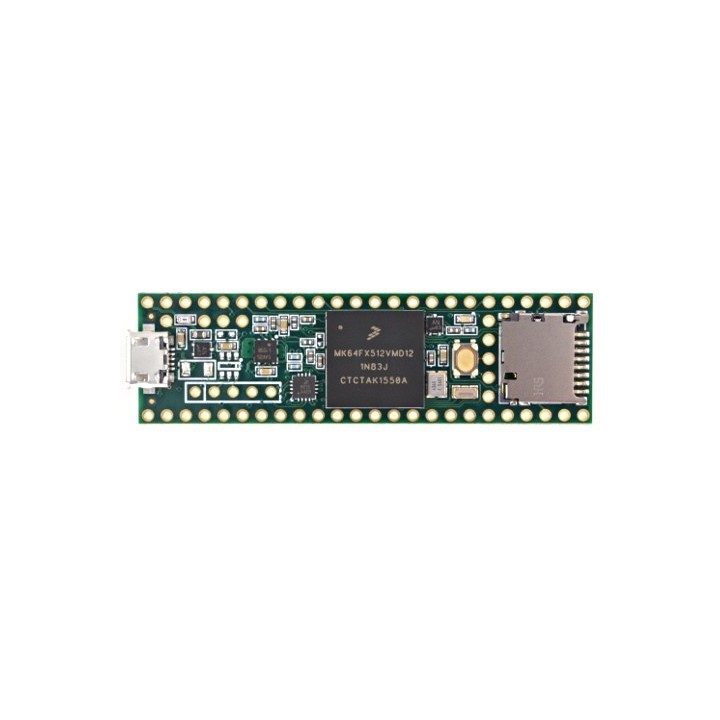

Teensy 3.5

Use this Teensy 3.5 with your Teensy code to keep your projects small when you need more processing power than a Pro Micro.



More details

Availability: SHIPS TODAY

Last Updated: 11/12/2024

Tinkersphere

TS1866

$284.99

Teensy 3.5 is an upgrade to the Teensy 3.2.

Features:

  • 32 bit ARM Cortex-M4 120 MHz CPU with floating point unit
  • Flash Memory: 512K Flash Memory
  • RAM: 192K
  • EEPROM: 4K

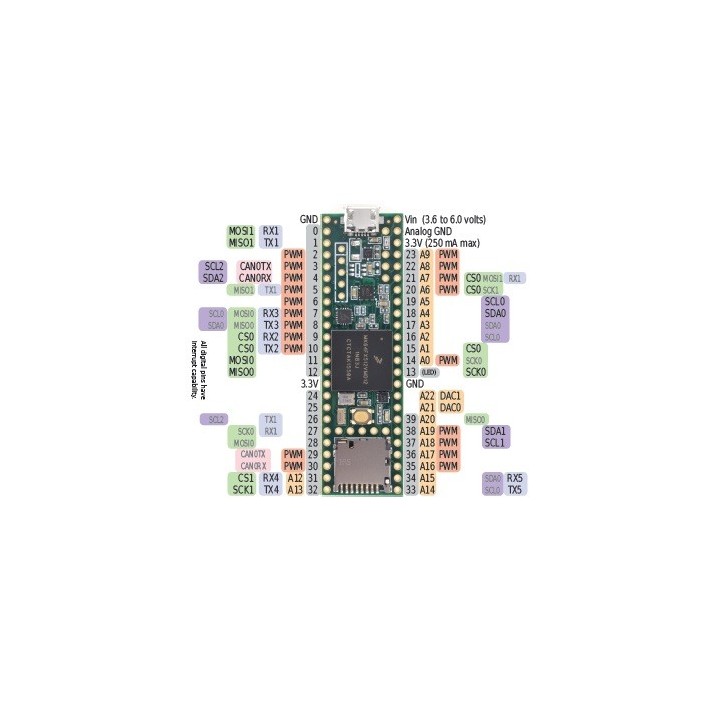

  • 62 I/O Pins (42 breadboard friendly)
  • 25 Analog Inputs to 2 ADCs with 13 bits resolution
  • 2 Analog Outputs (DACs) with 12 bit resolution
  • 20 PWM Outputs (Teensy 3.6 has 22 PWM)
  • Supports SPI, I2C, I2S, CAN Bus
  • I2S high quality audio interface
  • Real Time Clock
  • 16 DMA channels
  • 5 Volt Tolerance On All Digital I/O Pins
  • USB Full Speed (12 Mbit/sec) Port
  • Ethernet mac, capable of full 100 Mbit/sec speed
  • Native (4 bit SDIO) micro SD card port
  • I2S Audio Port, 4 Channel Digital Audio Input & Output
  • 14 Hardware Timers
  • Cryptographic Acceleration Unit
  • Random Number Generator
  • CRC Computation Unit
  • 6 Serial Ports (2 with FIFO & Fast Baud Rates)
  • 3 SPI Ports (1 with FIFO)
  • 3 I2C Ports (Teensy 3.6 has a 4th I2C port)
