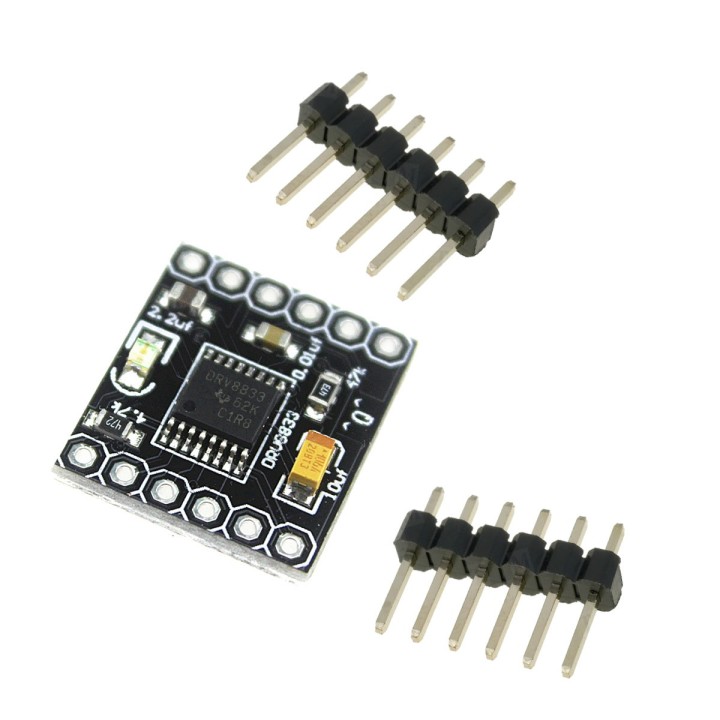

DRV8833 DC/Stepper Motor Driver Breakout Board
Control two DC motors or one 4-wire stepper motor with up to 1.5A per channel using this DC / Stepper Motor Driver.
Categories
- All products
- Robots
- Parts & Components
- Motors & Wheels
- Breadboard / Perfboard Prototyping
- Components
- Arduino
- BeagleBone Micro PC
- Raspberry Pi
- Sensors
- Cables & Wires
- Batteries & Holders
- Enclosures / Storage
- Power
- Electronic Experiment Kits
- Wearable Electronics
- Audio
- LED Lighting
- LCD Screens
- Wireless Modules
- 3D Printer Parts & Supplies
- PCB Fabrication Supplies
- Mounting Hardware
- Fiber Optics
- Cell Phone Accessories
- Keyboards and Mice
- Hard Drives & Memory Sticks
- Electronics Tools
- Soldering Kits
- Novelties
- Tinkering Apparel
- Young Tinkerers
- Books
- Crafts
- Office / School Supplies
Newsletter
Parts & ComponentsArduinoArduino Compatible ComponentsDRV8833 DC/Stepper Motor Driver Breakout BoardFeatures:
- DRV8833
- 2 Full H-bridges onboard
- Operating Voltage: 2.7V - 10.8V
- Max Current Per Channel: 1.5A
- Control 2 bi-directional DC motors or 1 stepper motor
- Built in kick-back diodes
- Logic Voltage High: 2.7V or greater (works with Arduino, Orange Pi, Raspberry Pi & other 5V or 3.3V microcontrollers)
- Overcurrent protection, Short circuit protection, undervoltage lockout, overheating protection & low-power sleep modes

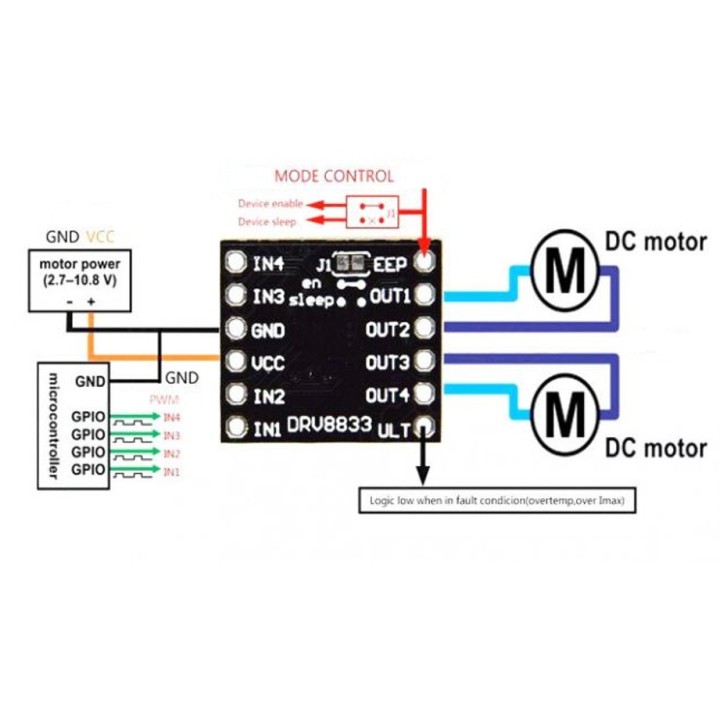

- Pinout:
- ULT PIN: Mode select pin (Low level is sleep mode)
- IN1 / IN2: H-bridge that controls OUT1 and OUT2
- IN3 / IN4: H-bridge that controls OUT3 and OUT4
- EEP PIN: Output protection. For normal use this does not need to be connected.
- VCC: 2.7V - 10.8V DC
- GND
