Triple Axis Accelerometer Breakout - ADXL345 Maximize

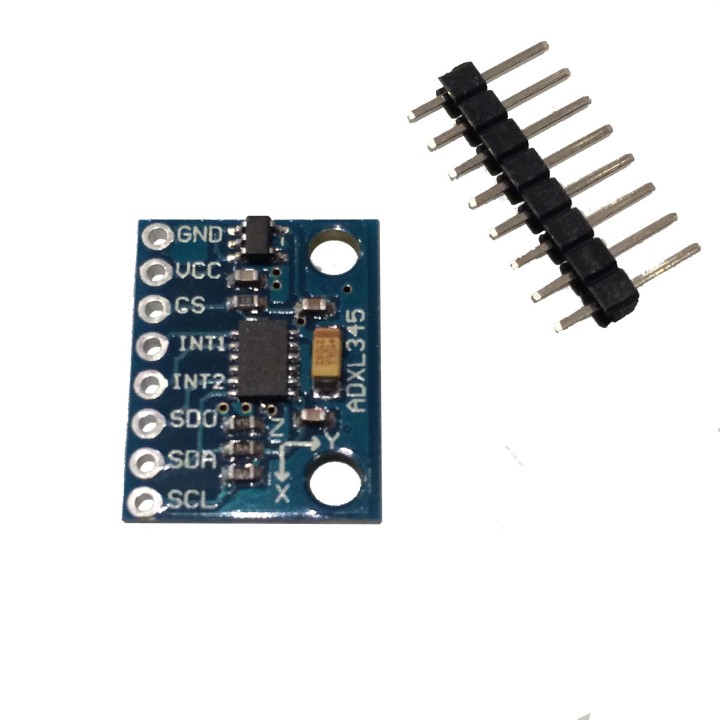

Triple Axis Accelerometer Breakout - ADXL345

This Triple Axis Accelerometer Board contains the ADXL345 which is a 3 axis accelerometer that can detect tilt and acceleration. Great for detecting static tilt, motion & shock! Raspberry Pi and Arduino compatible!

More details

Availability: SHIPS TODAY

Last Updated: 10/10/2024

Tinkersphere

TS-354

$17.99

This Triple Axis Accelerometer Breakout Board makes use of the ADXL345 to give you a 3 axis accelerometer that's easy to use and affordable! This Triple Axis Accelerometer Board is great for detecting motions such as static tilt relative to the ground (like your iPhone does) & acceleration (this allows you to detect someone/something moving the sensor or shock) in your projects! Comes with straight male headers.

If you are looking for a full IMU to also be able to detect pitch, roll and yaw (measuring rotation around a particular axis) check out our Triple Axis Accelerometer and Gyro Breakout - MPU-6050 which combines a 3 axis gyro and 3 axis accelerometer to detect all motion with just one module!

Specifications:

  • Main chip: ADXL345
  • Supply Voltage: 3V - 5V DC
  • I/O Voltage Range: 1.7V to 3.6V
  • Communication Protocol: I2C or SPI (you can use either one)
  • Tap/Double Tap Detection
  • Free-Fall Detection
  • 13 bit Digital Output
  • Accelerometer Range: ± 2g ± 4g ± 8g ± 16g
  • Pin Pitch: Standard 0.1" (2.54mm)
  • Included Headers: straight
