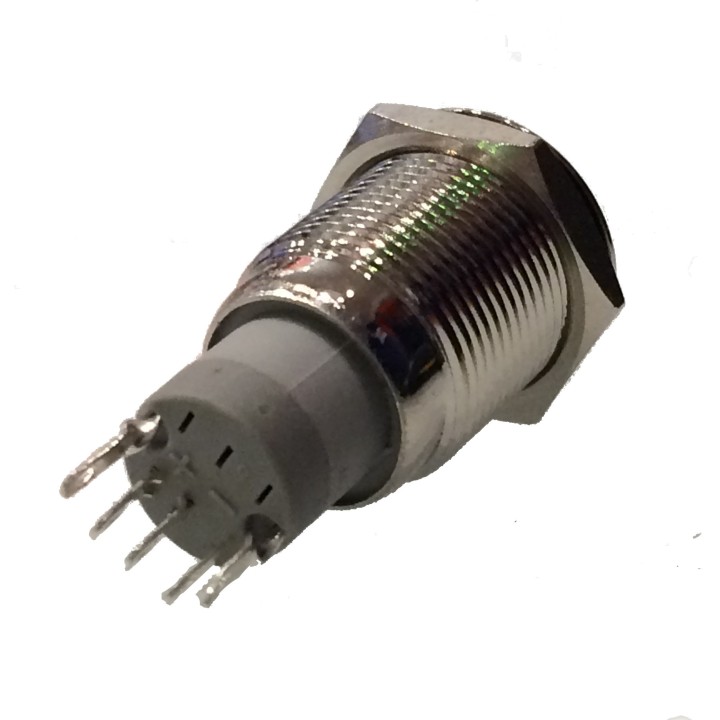

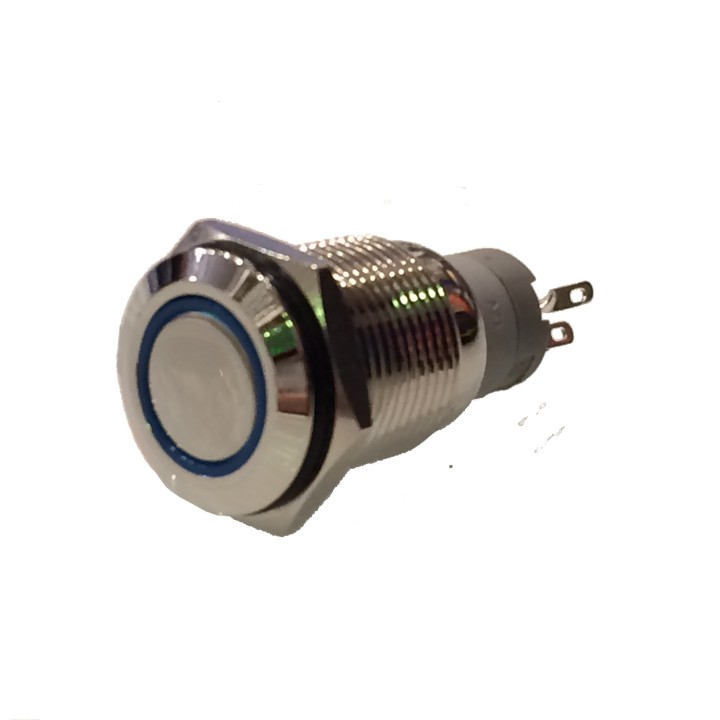

Metal Pushbutton - Latching 16mm Green
This heavy duty Nickel plated push button has an illuminated green LED ring for a sleek futuristic look! This is a tough panel mount latching switch. Great as an on/off button.
Categories
- All products
- Robots
- Parts & Components
- Motors & Wheels
- Breadboard / Perfboard Prototyping
- Components
- Arduino
- BeagleBone Micro PC
- Raspberry Pi
- Sensors
- Cables & Wires
- Batteries & Holders
- Enclosures / Storage
- Power
- Electronic Experiment Kits
- Wearable Electronics
- Audio
- LED Lighting
- LCD Screens
- Wireless Modules
- 3D Printer Parts & Supplies
- PCB Fabrication Supplies
- Mounting Hardware
- Fiber Optics
- Cell Phone Accessories
- Keyboards and Mice
- Hard Drives & Memory Sticks
- Electronics Tools
- Soldering Kits
- Novelties
- Tinkering Apparel
- Young Tinkerers
- Books
- Crafts
- Office / School Supplies
Newsletter

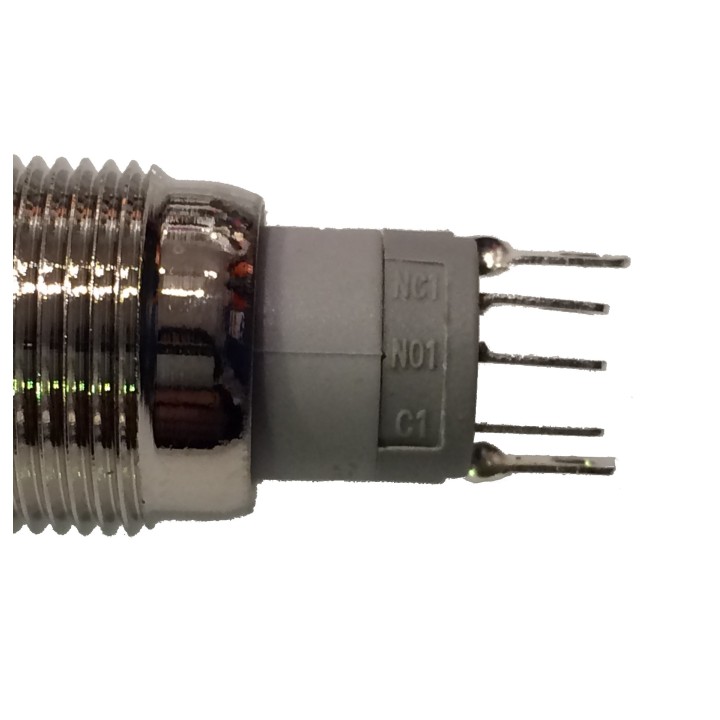

This sleek illuminated metal button is a nice addition to high-end projects where you want a green illuminated button to dazzle your users. Nickel-Plated and waterproof so that it can be mounted indoors or out. Just connect 12V to the outer 2 pins to light up the Green LED ring. When the button is pressed down C1 is connected to NC1, when it is not pressed C1 is connected to NO1. This button is latching which means it will hold its position; press once to turn on and the button will remain on, press again to turn off.
Specifications:
- Stainless Steel Metal Button with Illuminated Green LED Ring
- Button Type: SPDT
- Latching (when you press it, it will hold it's on/off position)
- Threaded Hole Diameter: 16mm
- Thread Pitch: 1mm
- IP67 Waterproof
- Material: Nickel-Plated Brass
- Dimensions:
- Length: 1 1/2" (from solder tabs to button face)
- Button Face Outer Diameter: 3/4" (18mm)
- LED Ring Outer Diameter: 1/2"
- Button Diameter: 3/8"
- Current Rating: 3A
- Voltage Rating 250VAC
- LED Illumination via 2 outermost pins at 12V DC
