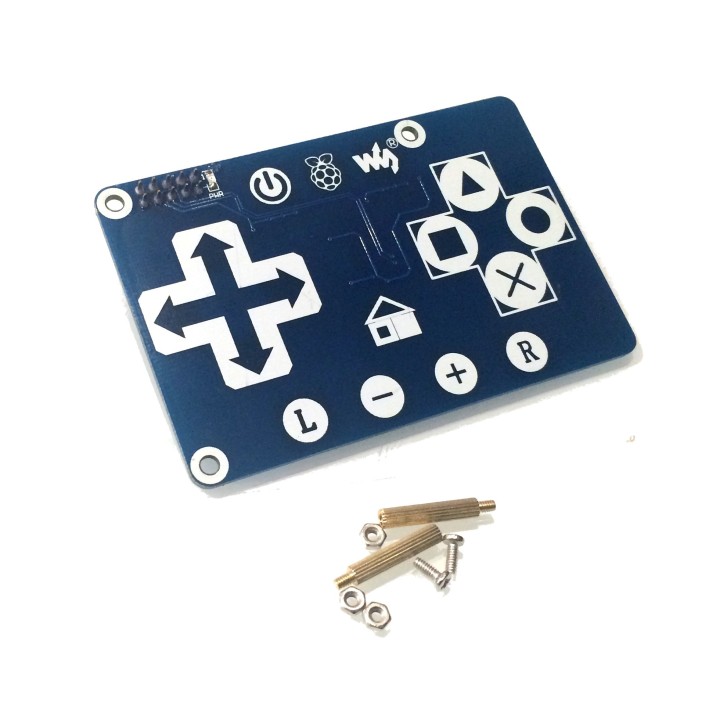

Raspberry Pi Capacitive Touch Gamepad Controller Hat

Place this Gamepad Controller on top of your Raspberry Pi for instant gaming controls! Capacitive Touch so even the lightest of fingerpresses are registered.

More details

Availability: Sold Out
Email to
Backorder

Last Updated: 12/05/2024

Tinkersphere

TS-945

$16.95

This Gamepad Controller fits right atop the Raspberry Pi for nice controls with no wiring necessary. The Pi Hat uses Capacitive touch technology to ensure even the lightest of touches are registered. Just place on top of your Raspberry Pi and game away!

Specifications:

  • Raspberry Pi Gamepad Controller Hat
  • Fits directly on top of all Raspberry Pi Models
  • Touch type: Capacitive
  • Number of buttons: 16
  • Chipset: TTP229-LSF, supports up to 16 keys with adjustable sensitivity and built-in LDO
  • The system re-calibrates automatically when all keys are not detected touch more than about 4 seconds
  • Interface : I2C
  • Sampling rate : 8Hz
  • Human Body Mode : 6KV
  • Operating voltage : 2.4V-5.5V
  • Operating temperature : -40℃ to +85℃
  • Storage temperature : -50℃ to +125℃
  • Dimensions : 8.5CM × 5.6CM
  • Pinout:
    • VCC : Power supply (2.4V-5.5V)
    • GND : Ground
    • SDA : I2C SDA
    • SCL : I2C SCL



Click here to download the sample code.
