Capacitive Touch Module (Raspberry Pi & Arduino Compatible)

Detect even the lightest touch using this Square Capacitive Touch Module. Only 3 Pins, Power, Ground and Signal. Easy to use!

More details

Availability: SHIPS TODAY

Last Updated: 12/21/2024

Tinkersphere

TS2987

$3.89

Have a question? 0 answered questions

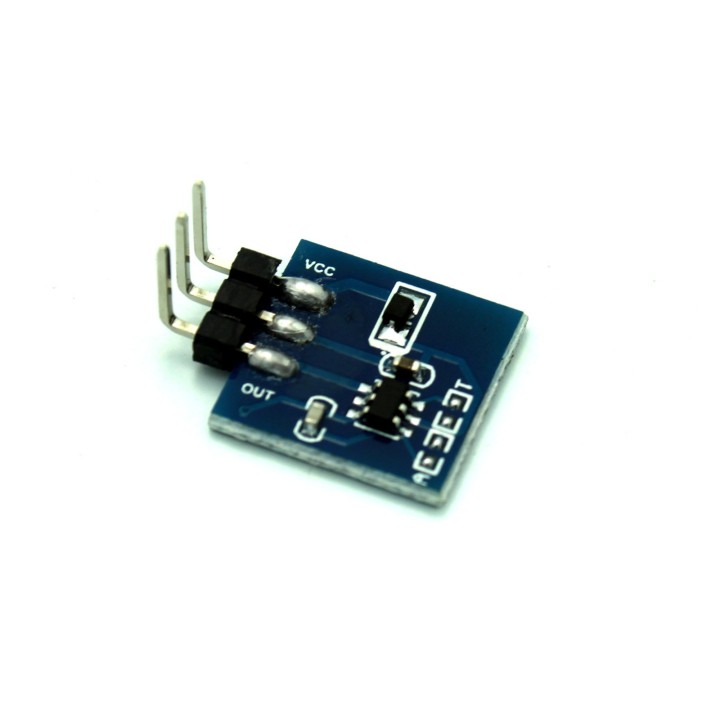

Use this Capacitive Touch Module to detect even the lightest touch digitally. When the blank side of the sensor is touched, the OUT pin will be high and the onboard LED will illuminate! Simple as that!

Specifications:

  • Operating Voltage: 2V - 5.5V
  • Compatible with Arduino based Boards & Raspberry Pi
  • Pinout:
    • VCC: 2V - 5.5V Power
    • OUT: Digital Output (to your Arduino, Raspberry Pi or other microcontroller)
    • GND: 0V
  • Onboard Power LED illuminates when power is connected

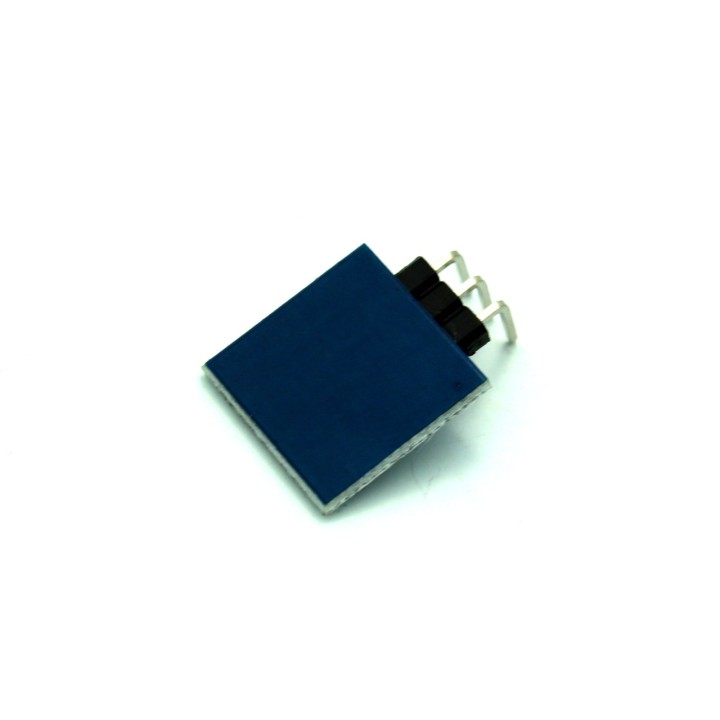

  • Flat design for the sensing side for easy integration into your projects
  • Comes pre-soldered with right angle header pins
  • Size: 14mm x 14mm



Click here to download the datasheet for the main chip.
