12 Pin Toggle Switch: 4PDT

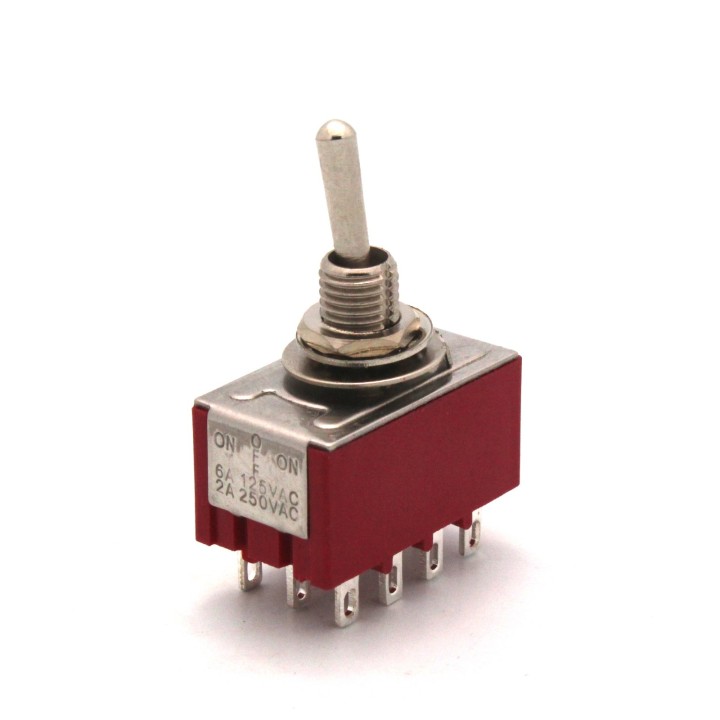

This Metal Panel Mount Toggle Switch is easy to mount in a housing and has a long metal handle for easy toggling between 3 options. With a total of 12 pins, you can control up to 4 things all from one switch!

More details

Availability: SHIPS TODAY

Last Updated: 01/27/2023

Tinkersphere

TS2628

$5.99

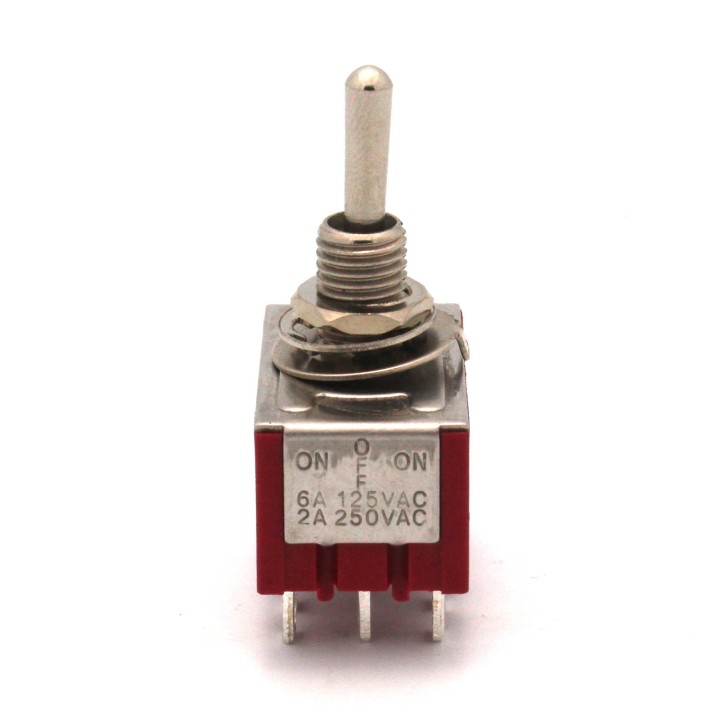

This Panel Mount 4PDT Metal Toggle Switch is good for controlling up to 4 things at once! It's just like having 4 standard toggle switches side by side.

It has 4 Poles and is Four Pole Double Throw (4PDT) which means that when you slide the switch to the up position, the top and middle poles for all 4 columns get connected, when you slide the switch to the center position all pins are disconnected (OFF), and when you slide the switch to the down position, the bottom and middle poles of all 4 columns get connected. Very convenient in circuits because you can not only use it as quadruple ON/OFF switch by connecting the middle and the top or the middle and the bottom poles of each vertical column to your circuits, but also as a toggle switch connecting the middle pole to the top and the middle pole to the bottom when you flip it up and down respectively.

Extra sturdy metal design. Can control up to 4 circuits at once! It's the same as having 4 standard SPDT switches side by side!

Specifications:

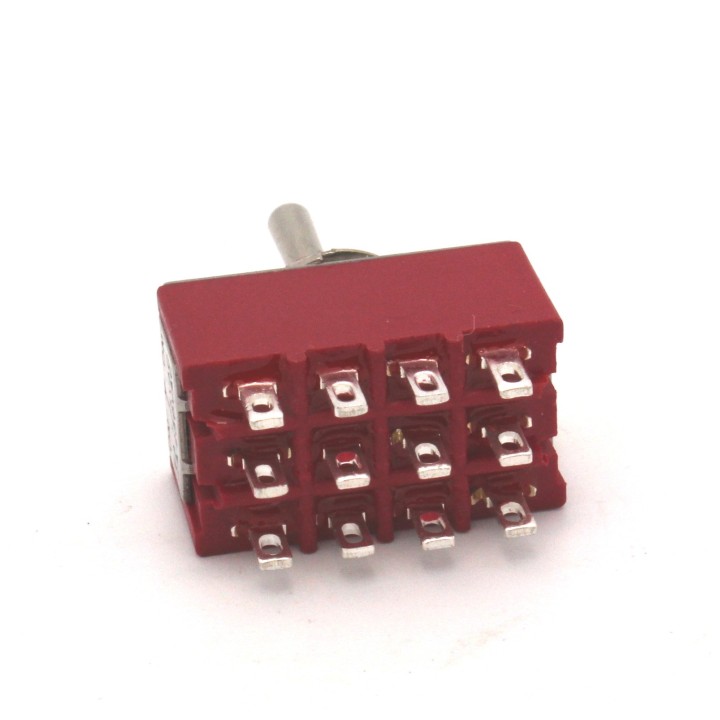

  • Number of Pins: 12
  • Switch Type: Four Pole - Double Throw
  • 3 Positions: ON-OFF-ON

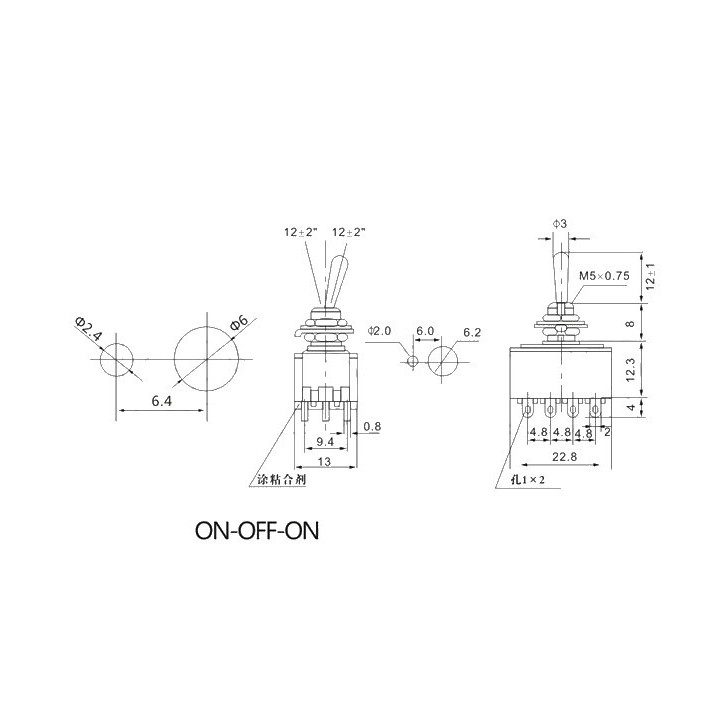

  • Size: 33mm x 13mm x 22.5mm
  • Switch Handle Height: 12mm
  • Pin Length: 4mm
  • Pin Spacing: 4.8mm
  • Rated Voltage and Current: 125VAC @ 6A ; 250VAC @ 2A
  • Operating Temperature: -25C to 85C
  • Contact resistance: < 20MΩ
  • Insulation resistance: >500VDC 1000MΩ 1 Minute
  • Dielectric Strength: >1000VAC, 1 Minute
  • Operating Temperature -25°C~+85°C
  • Mechanical life: greater than 50,000 cycles
  • Electrical life: greater than 10000 cycles
  • Includes:
    • Toggle Switch
    • Lock Washer
    • Washer
    • Mounting Nut
