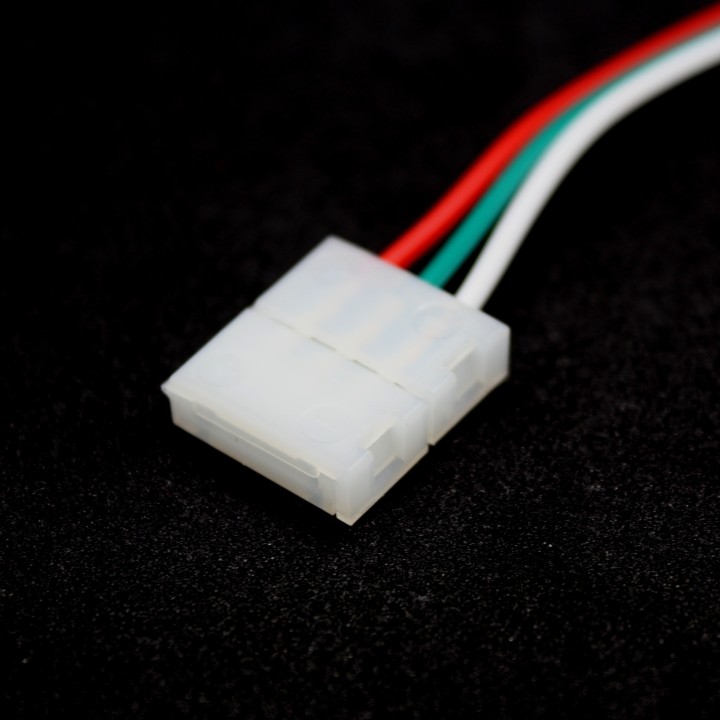

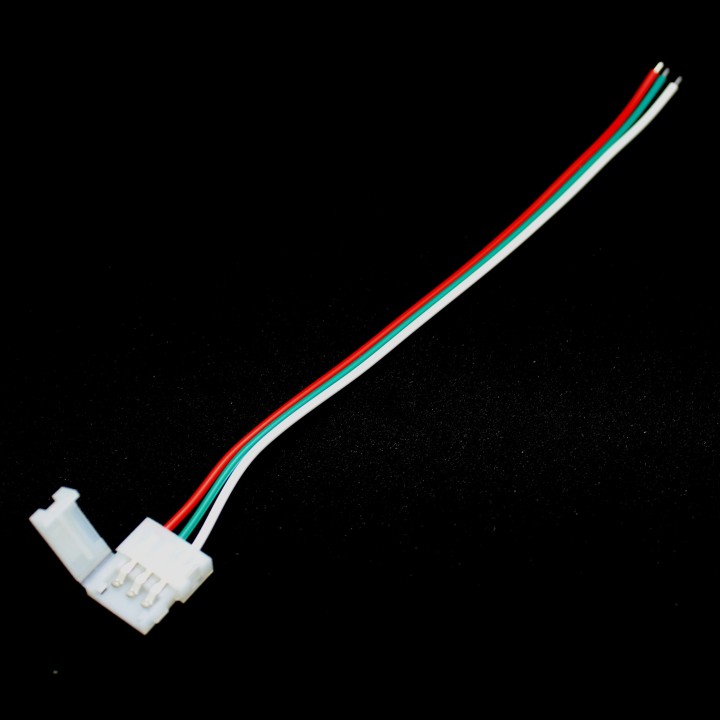

3 Pin LED Strip Connector with Wires
Attach wire connectors to your 3 Pin LED strips even after they've been cut! This 3 Pin LED strip coupler is a solderless connector for cut addressable 3 pin LED strips!
Categories
- All products
- Robots
- Parts & Components
- Motors & Wheels
- Breadboard / Perfboard Prototyping
- Components
- Arduino
- BeagleBone Micro PC
- Raspberry Pi
- Sensors
- Cables & Wires
- Batteries & Holders
- Enclosures / Storage
- Power
- Electronic Experiment Kits
- Wearable Electronics
- Audio
- LED Lighting
- LCD Screens
- Wireless Modules
- 3D Printer Parts & Supplies
- PCB Fabrication Supplies
- Mounting Hardware
- Fiber Optics
- Cell Phone Accessories
- Keyboards and Mice
- Hard Drives & Memory Sticks
- Electronics Tools
- Soldering Kits
- Novelties
- Tinkering Apparel
- Young Tinkerers
- Books
- Crafts
- Office / School Supplies
Newsletter
| Price Break | Unit Price | Extended Price |
|---|---|---|
| 50 | $2.25 | $112.50 |
| 100 | $1.99 | $199.00 |
After cutting your 3 Pin LED strips to size, you can use this 3 Pin LED Strip Connector to hook them up to a cpntroller and power without soldering. Just place the strip in and snap shut for instant wires that you can hook straight up to a battery / power source and controller such as Arduino! Ideal for easily reusing already cut pieces and for making many shorter segments out of a large roll such as the 3 Pin Addressable LED Strips. Perfect for lighting professionals who want customized LED strip lengths!
Specifications:
- 3 Pin LED Strip Connector with Wires
- Number of contacts: 3

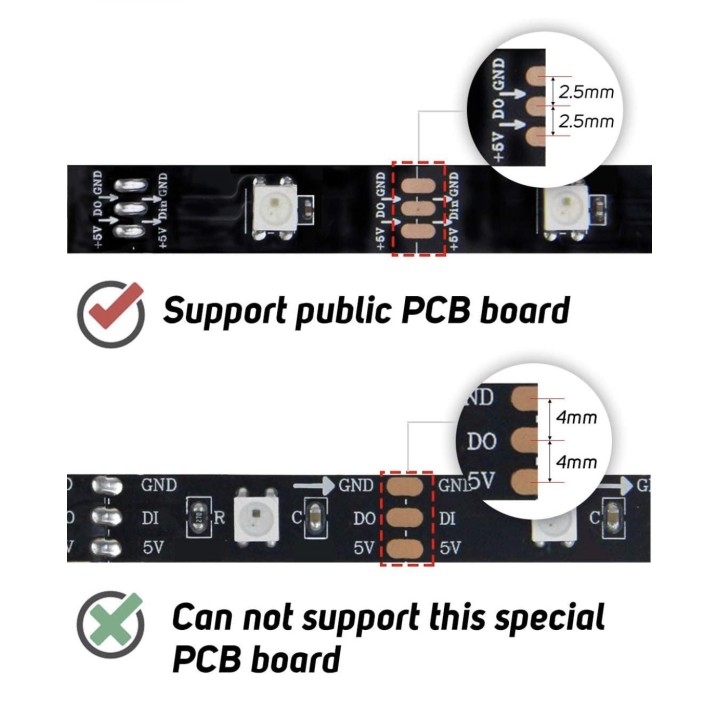

- Pin Pitch: 2.5mm
- Side A: 3 Pin LED Strip Receptacle
- Side B: Red, Green and Black Wires
- Snap together design to hold strip tightly in place
- Works with
- TS2316 High Density RGBWW Natural White LED Strip
- TS1342 Addressable RGB LED Strip 144 pixel
- TS1179 Addressable RGB LED Strip 30 pixel
- TS1178 Addressable RGB LED Strip 150 pixel
- TS-813 Addressable RGB LED Strip 150 pixel Waterproof
- Instructions:

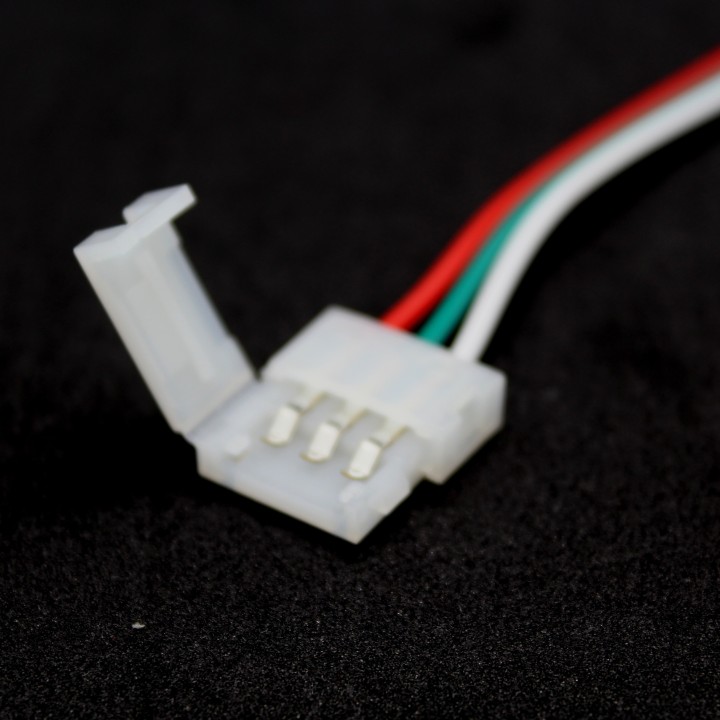

- Open the plastic cover clip to reveal the metal pins inside the connector
- Slide the bare LED strip under the metal contacts
- Make sure the 3 metal contacts on the LED strip are touching the connector's metal contacts
- Close the plastic cover clip to secure in place
