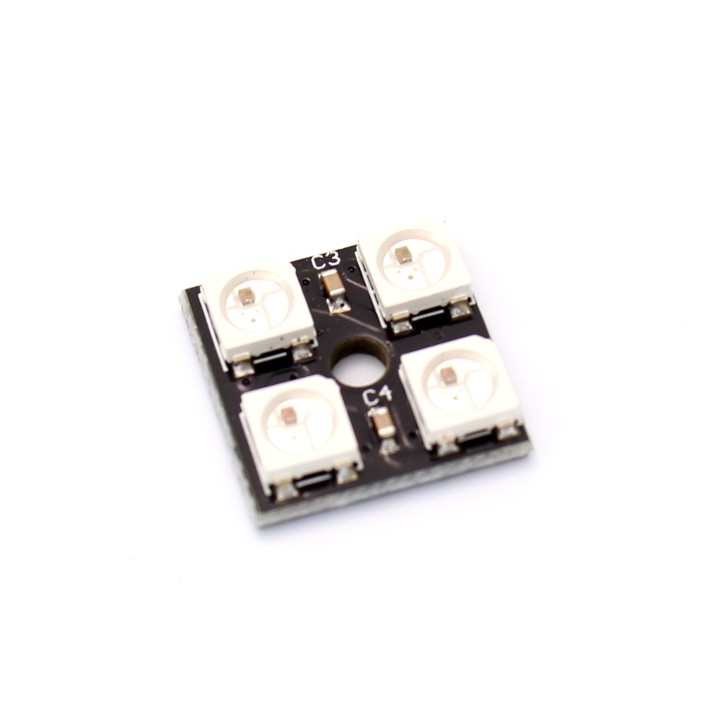

4 x WS2812 5050 RGB LED Square with Integrated Drivers (Neopixel Compatible)

Use this 4 Pixel RGB LED Square to add squares of light to your projects. Uses just 1 pin for Input and 1 pin for Output to the next LED square, stick, ring or strip if you'd like to chain multiple together! Just connect V+ to 5V DC, G to 0V and Data Input to your Arduino or other microcontroller to control the whole square. Each of the 4 WS2812 RGB LEDs has a chip inside which allows you to control them when chained one after the other.

Specifications:

• RGB LED Square
• Chipset: WS2812 (Neopixel compatible)
• Number of LEDs: 8
• Dimensions:
  • Length: 0.7" (18mm)
  • Width: 0.7" (18mm)
  • Thickness: 0.12" (3.19mm)

• Can be soldered to conductive thread or wire
• Max Current Draw: 0.24A

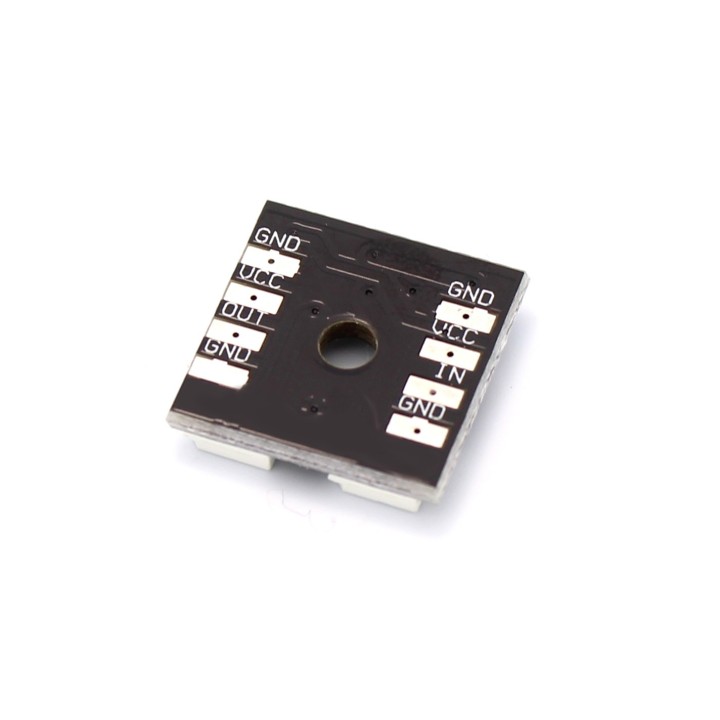

• Pinout:
  • 5V
  • GND
  • DIN: Data Input
  • DOUT: Data Output (connect to the Data Input of the next LED ring or just leave unattached)
• Click here to download the Datasheet
• Click here to download the Arduino Sample Code




  Use this power supply, this controller and this connector to light up the LED square.
