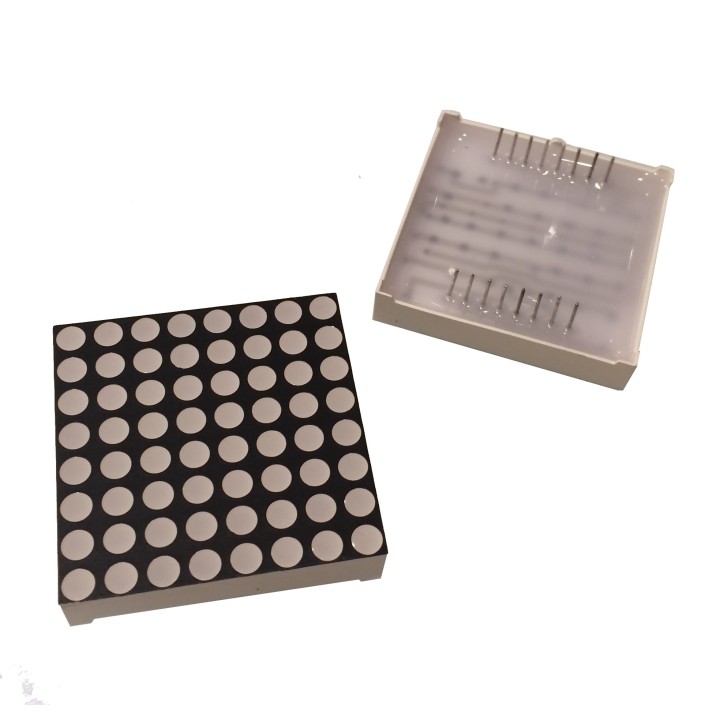

1.5" Red LED Matrix Panel - Small 8x8

This Mini 1.5" 8x8 Red LED Matrix contains 64 Red LEDs all in one housing to generate basic red LED displays!

More details

Availability: SHIPS TODAY

Last Updated: 01/27/2023

Tinkersphere

TS-365

$3.99

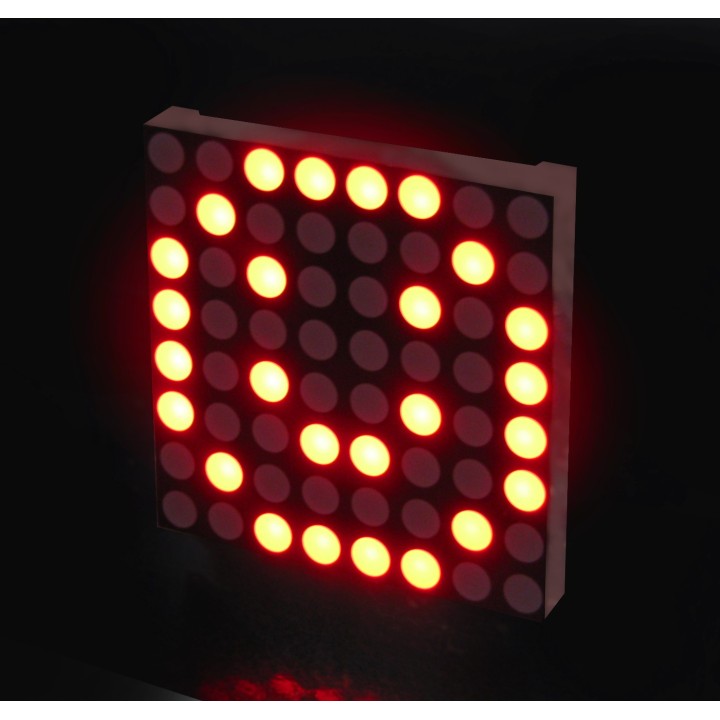

This Mini 8x8 Red LED Matrix Display contains 64 Red LEDs that can each be controlled individually! Use these LED Matricies for a basic red display with 64 pixels. Common applications include:

  • Scrolling message boards
  • Scoreboards
  • Banking Displays
  • Digital Clock Faces
  • Equalizers
  • & Other Digital Displays



Specifications:

  • LED Matrix Size: 8x8
  • LED Type: Red
  • Common Anode
  • Breadboard-friendly
  • Num of Pins: 16
  • Num of LEDs: 64
  • Forward Voltage: 2V - 2.6V
  • Luminous Intensity (Brightness): 60 mcd
  • Wavelength: 622 - 632 nm
  • Operating Temperature: -40 C to 80 C
  • Max Power Dissipation per Dot: 60mW
  • Max Peak Forward Current per Dot: 100mA
  • Max Continuous Forward Current per Dot: 25mA
  • Max Reverse Voltage: 5V

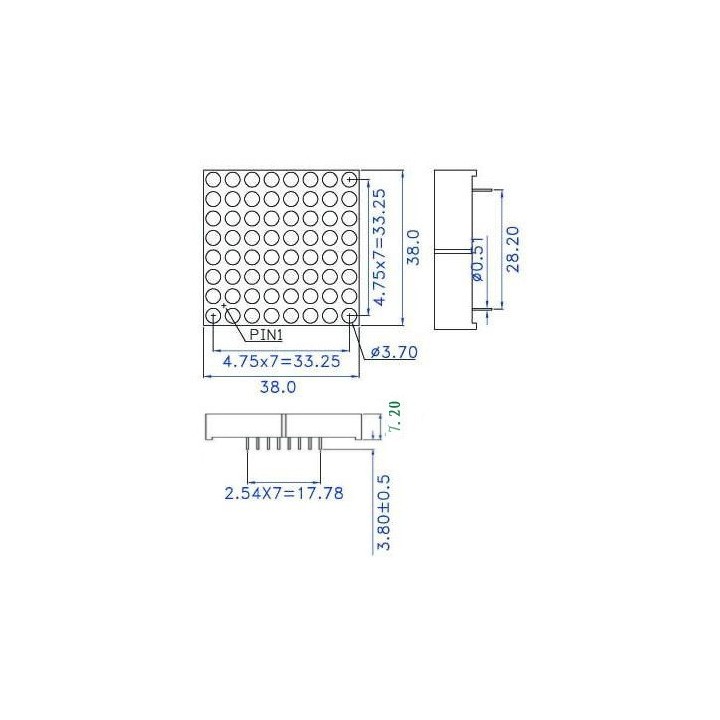

  • Dimensions: 0.28" x 1.5" x 1.5" / 7.2mm x 38mm x 38mm

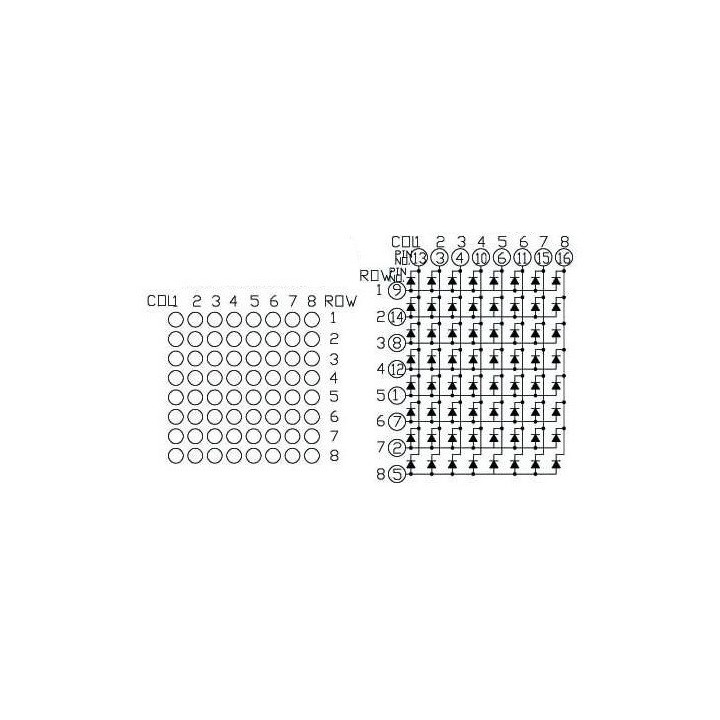

  • Pinout:

Tinkersphere 1.5" Red LED Matrix Panel - Small 8x8 Wiring Diagram
