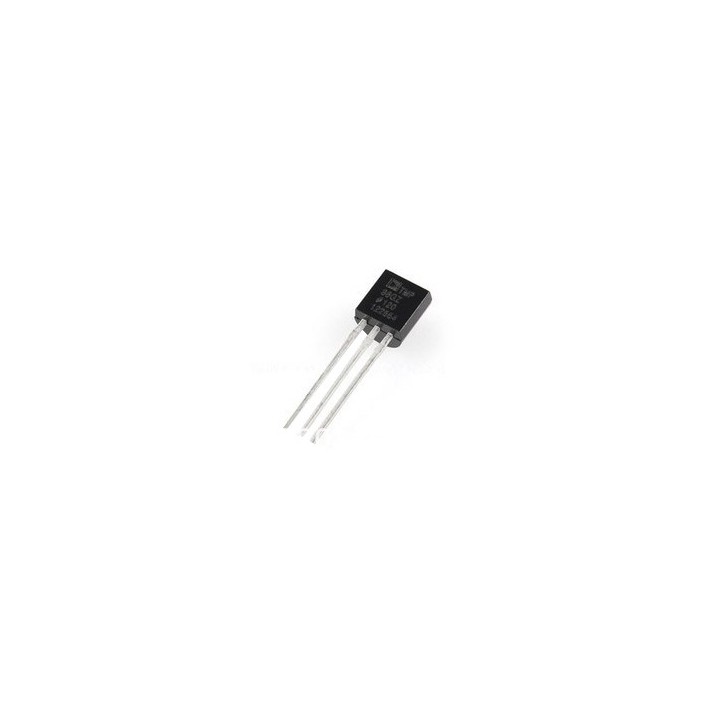

TMP36 Temperature Sensor (Arduino Compatible)

Use this Temperature Sensor to measure temperatures from -40 to 125 degrees Celcius! Perfect addition to any project!

More details

Availability: SHIPS TODAY

Last Updated: 04/19/2024

Tinkersphere

TS-195

$1.45

Have a question? 0 answered questions

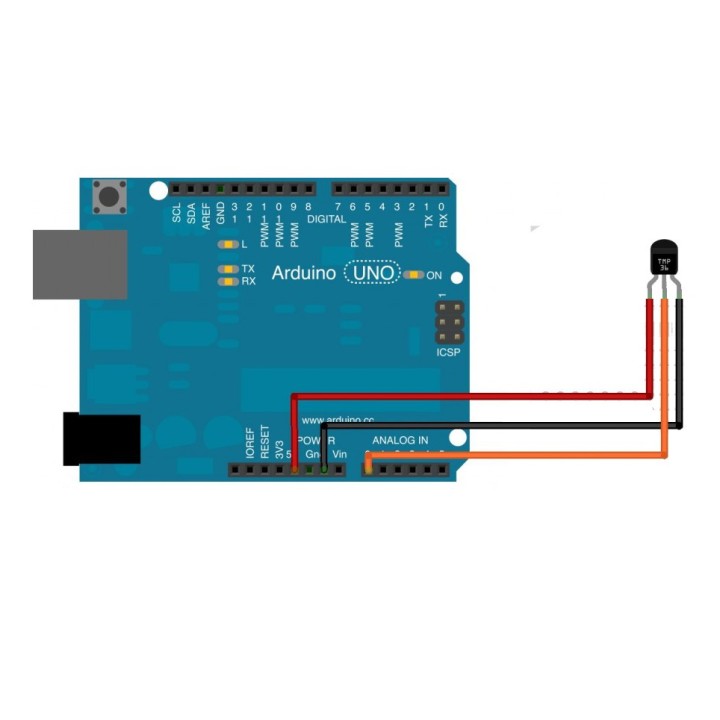

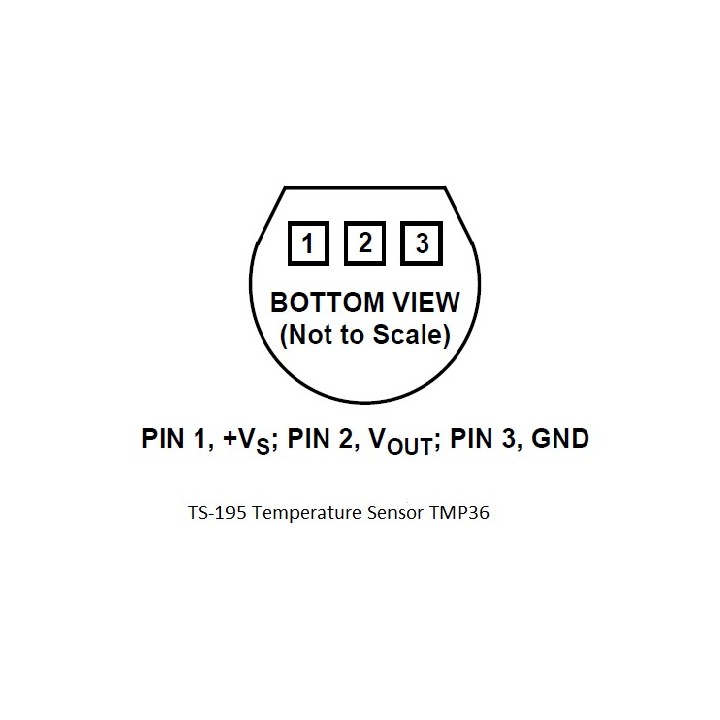

This Analog Temperature sensor has only 3 pins. Just plug the the right and left pins to power and ground as shown in the diagram above and the center pin will be an analog signal that varies between 0 and the power voltage! This is the simplest temperature sensor to use.

Specifications:

  • Operating Voltage (+2.7 V to +5.5 V)
  • Calibrated Directly in °C
  • 10 mV/8°C Scale Factor
  • ±2°C Accuracy Over Temperature (typ)
  • ±0.5°C Linearity (typ)
  • Stable with Large Capacitive Loads
  • Specified -40 °C to +125 °C, Operation to +150 °C
  • Less than 50 µA Quiescent Current
  • Shutdown Current 0.5 µA max
  • Manufacturer Part Number: TMP36 (replacement for LM35)



Click here to download the datasheet.
