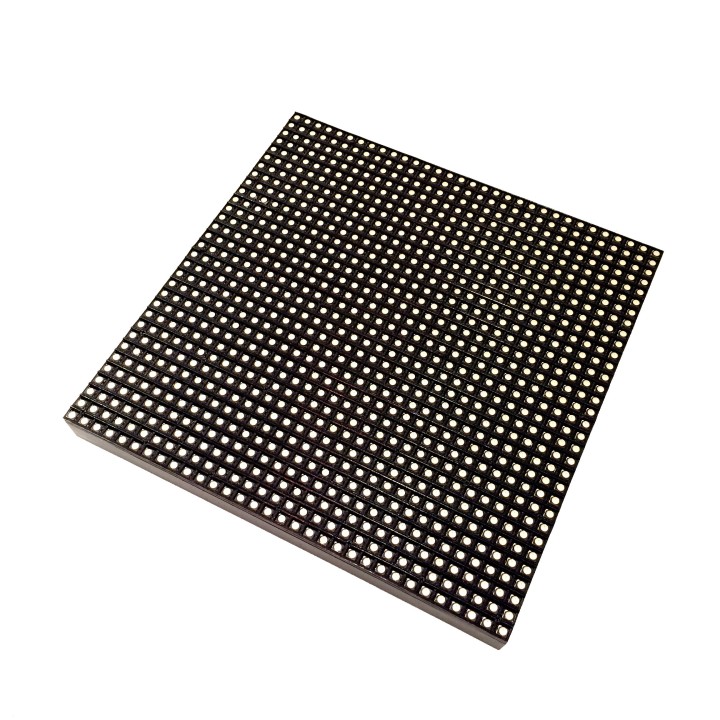

Full Color RGB LED Matrix Panel - 32x32

This Extra Large 32x32 Full Color RGB LED Matrix Panel contains 1024 Red, 1024 Green and 1024 Blue LEDs all in one housing to generate amazing color displays!

More details

Availability: SHIPS TODAY

Last Updated: 02/27/2024

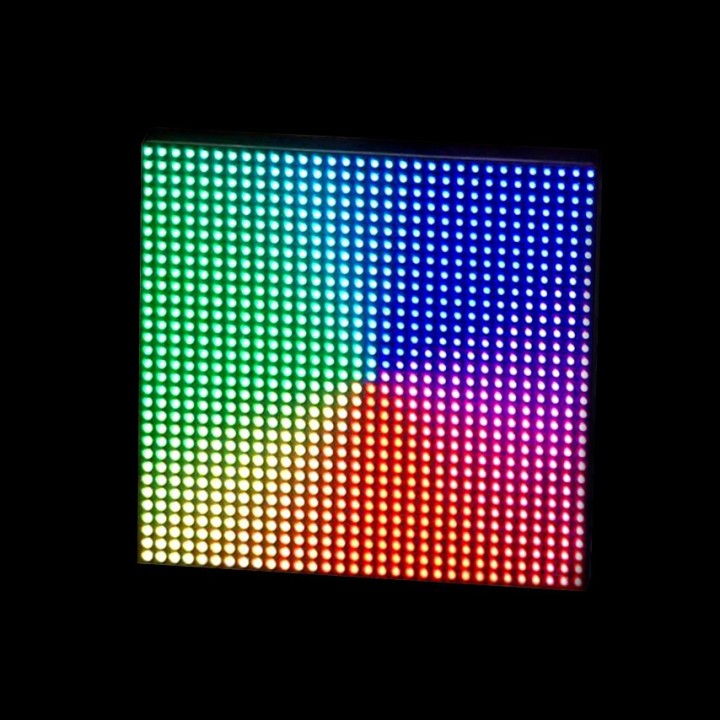

This 32x32 RGB LED Matrix Display contains 1024 RGB LEDs that can each be controlled individually! Use these LED Matricies for a full color display with 1024 pixels. Can be controlled by Arduino or Raspberry Pi. Common applications include:

  • Scrolling message boards
  • Scoreboards
  • Billboards
  • Banking Displays
  • Digital Clock Faces
  • Equalizers
  • & Other Digital Displays



  • LED Matrix Size: 32x32
  • LED Type: RGB

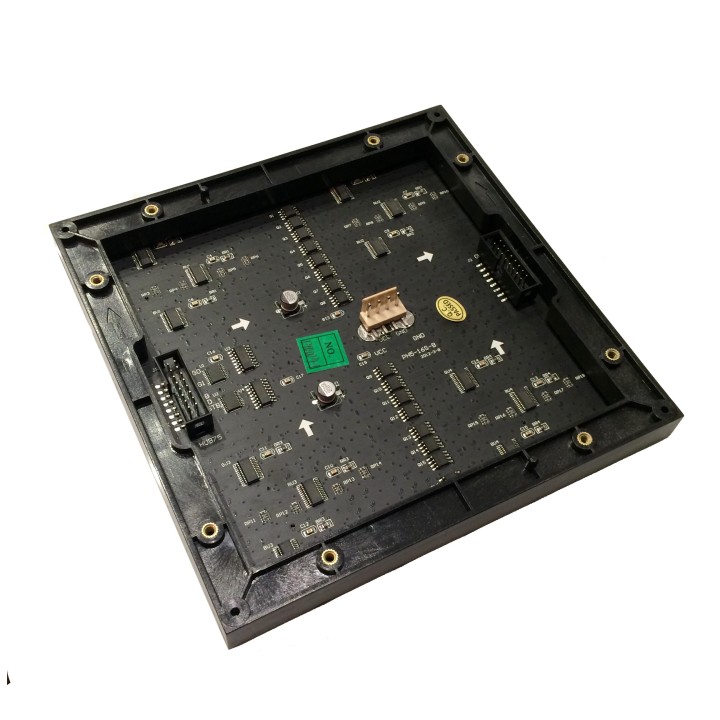

  • Num of Pins: 16 Input, 4 power, 16 Output (to next panel if using more than one)
  • Num of LEDs: 1024
  • Pixel Pitch: 5mm
  • Operating Voltage: 5V
  • Luminous Intensity (Brightness): 2000 cd / sq meter
  • Ideal Viewing Distance: 5m - 40m
  • Drive Mode: Constant Current 1/16 Scan
  • Refresh Frequency: greater than 400Hz
  • Viewing Angle: 110 degrees
  • 12 Bit Resolution
  • Operating Temperature: -20 C to 60 C
  • Operating Humidity: 10% - 90%
  • Max Power Dissipation: 33.28W
  • Average Power Dissipation: 14.08W
  • Max Current Draw: 6.65A
  • Average Current Draw: 2.8A
  • Mounting Screw Hole Size: M3
  • Dimensions: 0.47" x 6.30" x 6.30" / 12mm x 160mm x 160mm

 Use this power supply, this controller, this power cable and this programming cable to program the controller and light up the matrix panel.

Has anyone used these panels with LED Vision software?
I personally haven\'t but it looks like it will work based on this tutorial:
Default User Icon Jersey · 10/14/2021
Was this answer helpful? (0) (0)
