RGB Shield for Arduino

Control your Analog RGB LED strips directly from an Arduino with this RGB Shield. Just place on top of your Arduino UNO, Mega, Leonardo, etc. Plug power cables into the 2 Terminals on the left and your LED strips into the terminals on the right! Easy to use!

Features:

• Works with:
  • TS-567 RGB LED Strip 5050
  • TS-857 High Density RGB LED Strip 5050
• Downloadable example sketch
• Stackable design: the shield can be stacked with other shields

• Control RGB LED strips via Arduino
• 2 A load via Vin or 6 A load via external power
• 12 or 24 V external power supply
• uses pin 3, 5, 6 PWM on an Arduino board
• dimensions: 68 x 53mm / 2.67 x 2.08"

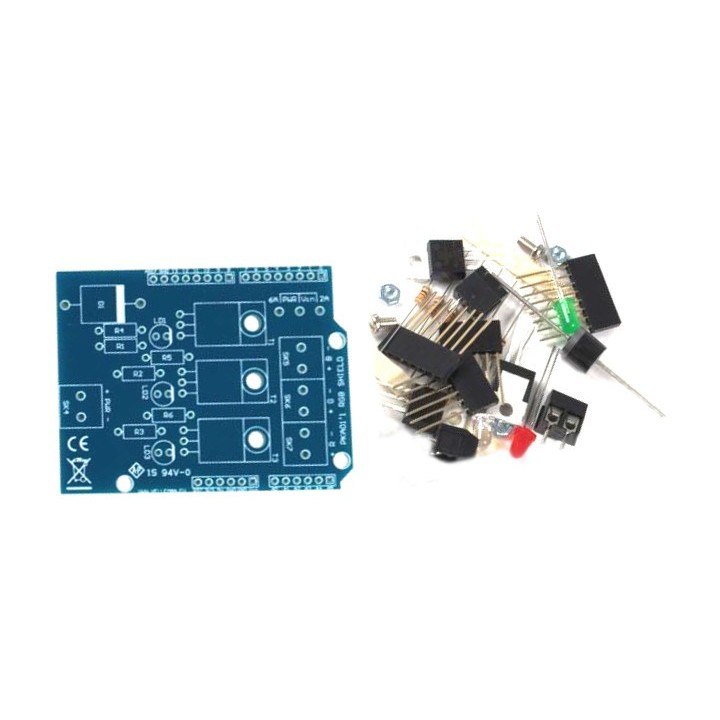

• Available either pre-assembled or as a soldering kit that requires soldering. (Select above)
