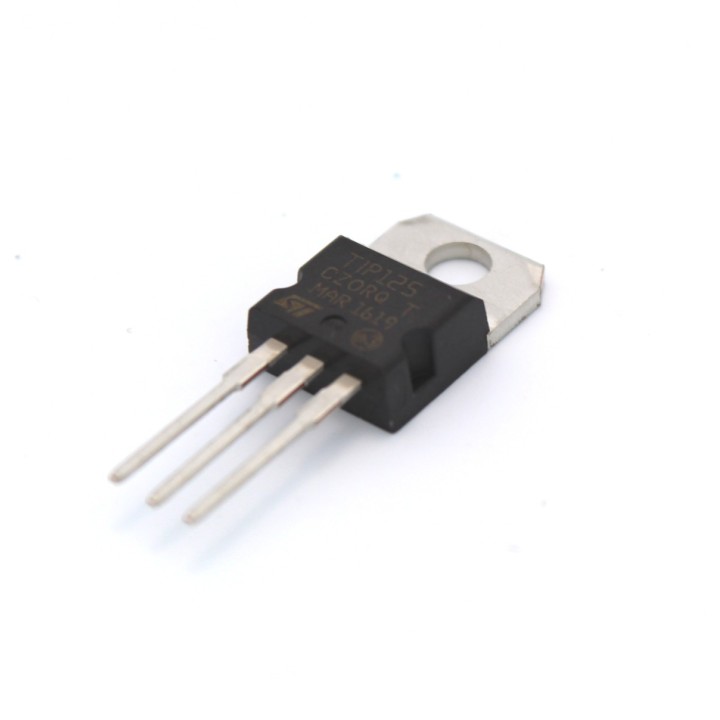

TIP125 PNP Power Darlington Transistor: 60V 8A Maximize

TIP125 PNP Power Darlington Transistor: 60V 8A

Use this TIP125 PNP Darlington Power Transistor to control something that draws up to 60V and 8A from your low power circuits & microcontrollers.

More details

Availability: SHIPS TODAY

Last Updated: 12/26/2024

Tinkersphere

TS2049

$1.99

Have a question? 0 answered questions

The TIP125 is a High Power PNP Transistor. Controlling high power devices is easy using the TIP125. Just attach the center pin to a 2.5V - 5V control signal and the other two pins to the high powered item you'd like to control. Complement to the NPN TIP120 Transistor.

Specifications:

  • Transistor Type: PNP - Darlington
  • Max Collector Current: 5A
  • Max Collector Emitter Breakdown: 60V
  • Max Vce Saturation: 4V @ Ib=20mA & Ic=5A
  • Max Collector Cutoff Current: 500µA
  • Min DC Current Gain (hFE): 1000 @ Ic=3A, Vce=3V
  • Max Power: 2W
  • Mounting Type: Through Hole
  • Package: TO-220
