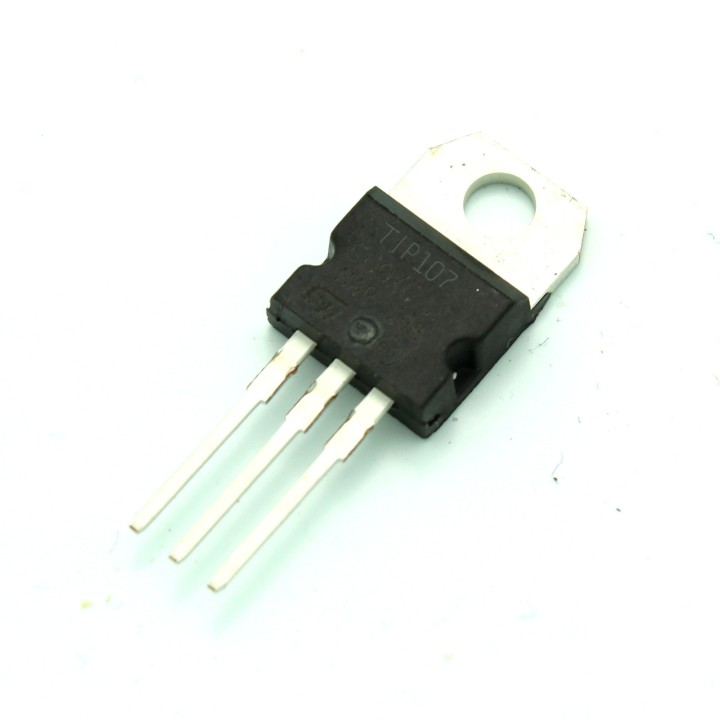

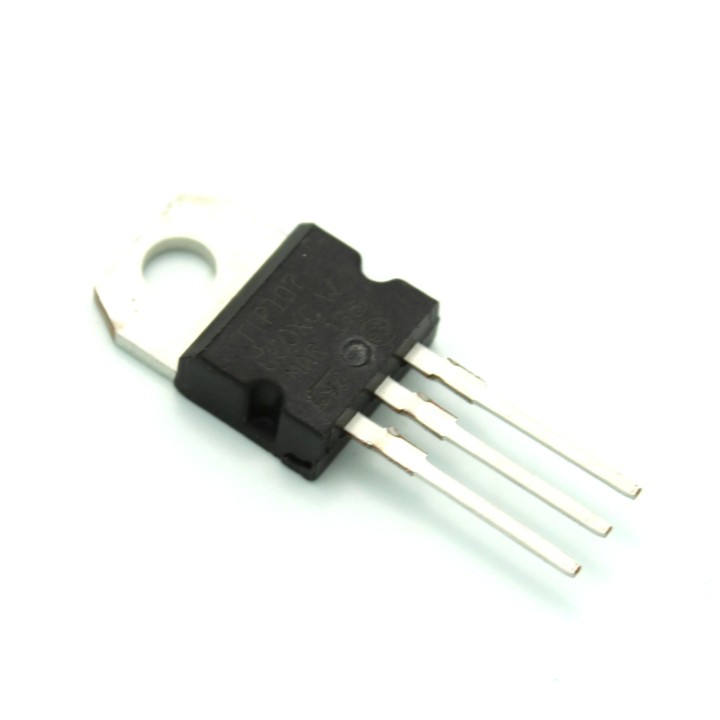

TIP107 PNP Power Darlington Transistor: 100V 8A

Use this TIP107 PNP Darlington Power Transistor to control something that draws up to 100V and 8A from your low power circuits & microcontrollers.

More details

Availability: SHIPS TODAY

Last Updated: 12/21/2024

Tinkersphere

TS3605

$1.99

Have a question? 0 answered questions

The TIP107 is a High Power PNP Transistor. Controlling high power devices is easy using the TIP107. Just attach the center pin to a 2.5V - 5V control signal and the other two pins to the high powered item you'd like to control.

Specifications:

  • Transistor Type: PNP - Darlington
  • Collector-Base Voltage (IE = 0): 100V
  • Collector-Emitter Voltage (IB = 0): 100V
  • Emitter-Base Voltage (IC = 0): 5V
  • Collector Current: 8A
  • Collector Peak Current: 15A
  • Base Current: 1A
  • Total Dissipation: 80W at Tcase < 25C ; 2W at Tamb < 25C
  • Storage Temperature: -65C to 150C
  • Max. Operating Junction Temperature: 150C
  • Mounting Type: Through Hole
  • Package: TO-220
