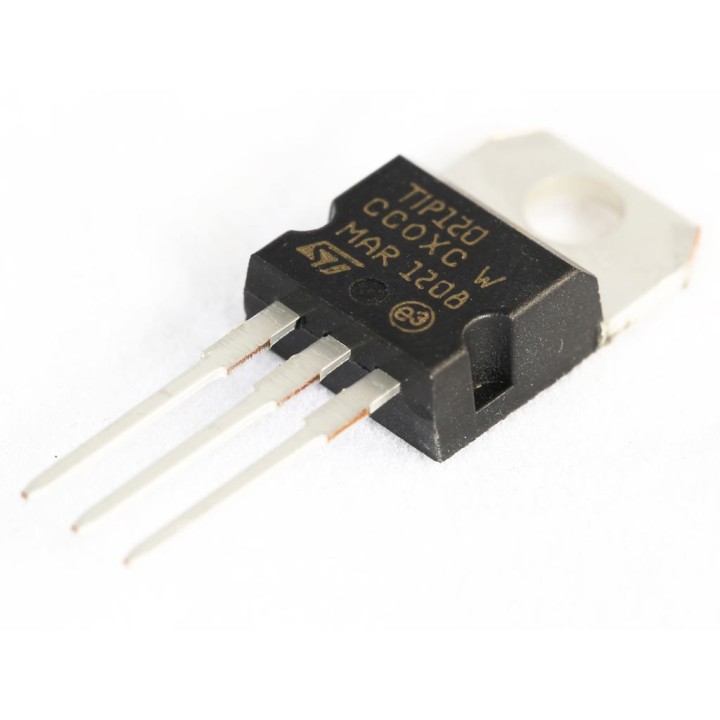

TIP120 Power Transistor Maximize

TIP120 Power Darlington Transistor: 60V 8A

Use this TIP120 Darlington Power Transistor to control something that draws up to 60V and 8A from your low power circuits & microcontrollers.

More details

Availability: SHIPS TODAY

Last Updated: 12/21/2024

Tinkersphere

TS-522

$1.99

Have a question? 0 answered questions
Price BreakUnit PriceExtended Price
25 $0.83 $20.75

The TIP120 is a High Power Transistor. Controlling high power devices is easy using the TIP120. Just attach the center pin to a 2.5V - 5V control signal and the other two pins to the high powered item you'd like to control.

Specifications:

  • Transistor Type: NPN - Darlington
  • Max Collector Current: 5A
  • Max Collector Emitter Breakdown: 60V
  • Max Vce Saturation: 4V @ Ib=20mA & Ic=5A
  • Max Collector Cutoff Current: 500µA
  • Min DC Current Gain (hFE): 1000 @ Ic=3A, Vce=3V
  • Max Power: 2W
  • Mounting Type: Through Hole
  • Package: TO-220
