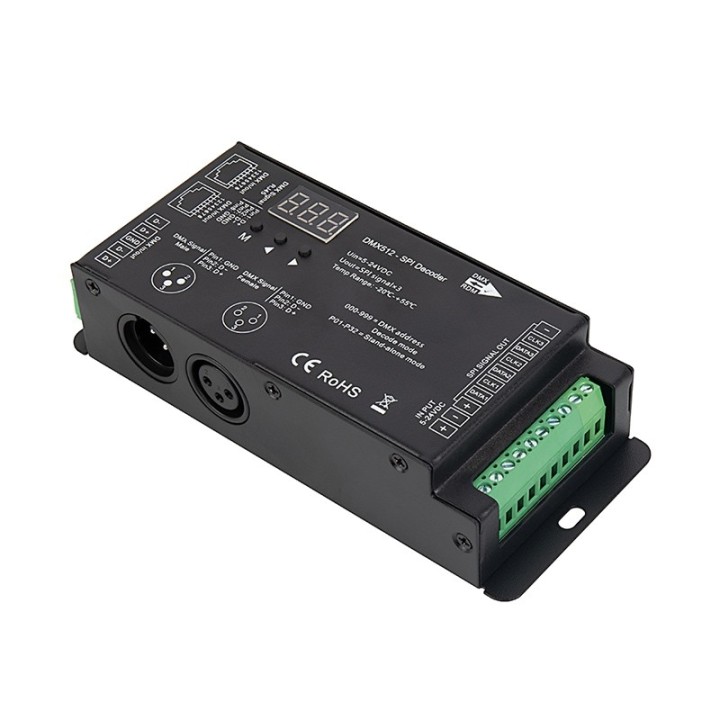

DMX512 SPI Decoder - Digital RGB Addressable LED Decoder/Controller - 5-24 VDC

Control your Addressable RGB LED strips via DMX with this DMX 512 Decoder / Controller. 5V to 24V DMX512 to SPI Converter DSA DMX SPI signal Decoder Controller For Addressable WS2811, WS2812 , WS2812B, LPD6803, TM1812 RGB Pixel LED Strips

More details

Availability: SHIPS TODAY

Last Updated: 07/14/2024





  • DMX Controller for 3 Pin Addressable RGB LED Pixel Strips
  • Allows you to control 5V-24V 4-Pin RGB LED Strips (with 3 channels, Red Green & Blue) via DMX
  • Input voltage: 5V - 24V DC (for 5V WS2811, WS2812 , WS2812B, LPD6803, TM1812 RGB LED strips, use 5V)
  • DMX23 series DMX512 Decoder converts DMX signals to an SPI digital signal for controlling digital LED lights.
  • Compatible with several IC chip types (see complete list below), this interface will run anywhere from 5-24 VDC and control up to 1024 pixels, making it possible to individually control digital pixel lights,
  • DreamColor LED strip lights, and other modules with compatible IC chip types.

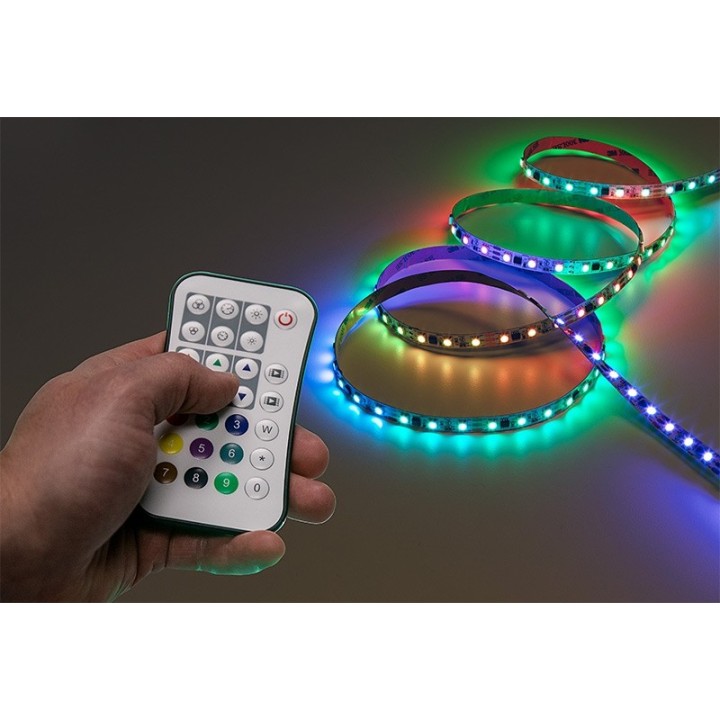

  • Choose from among 32 dynamic color-chasing patterns and adjust brightness and speed with the user-friendly digital display and arrow buttons. Or, pair with optional remote control (sold separately) for wireless control from a distance of nearly 100ft.

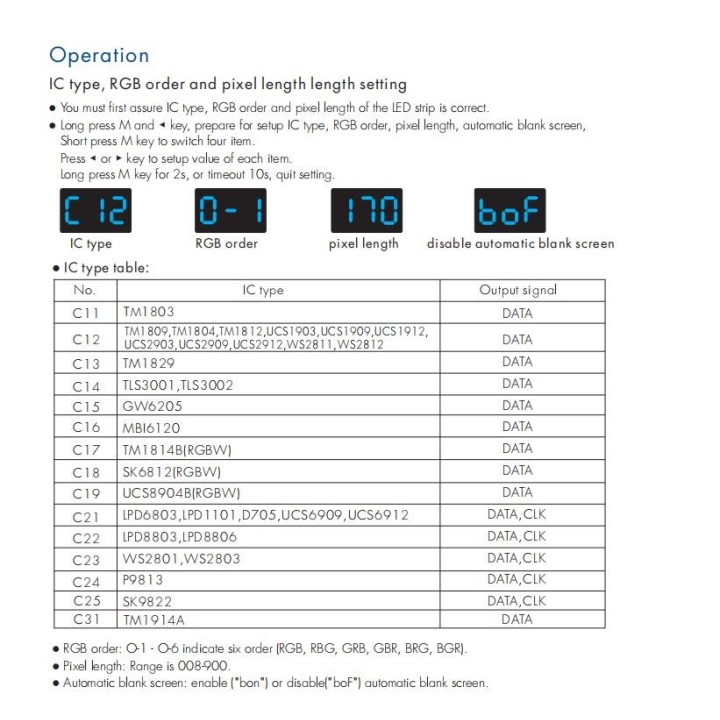

  • Compatible IC Types: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811,WS2812, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B, SK6812, UCS8904B, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A

  • Product Details:

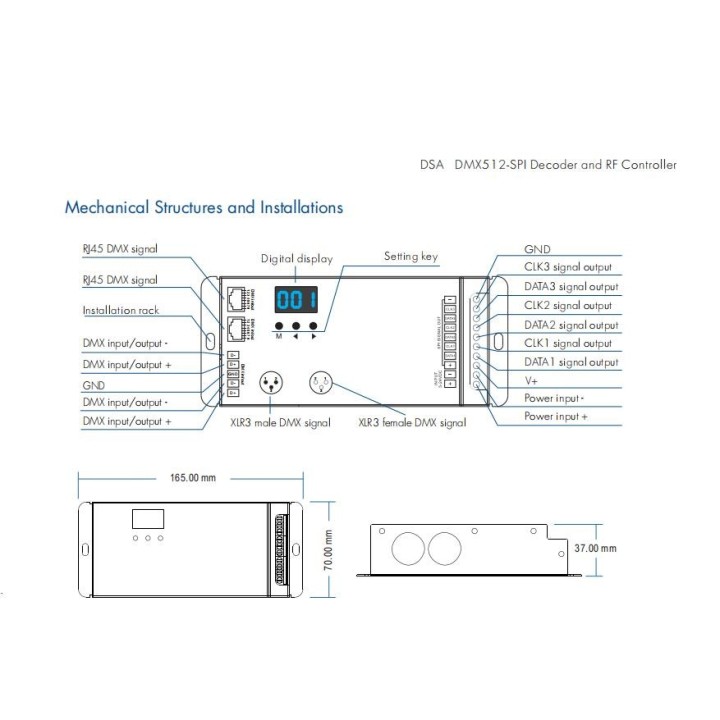

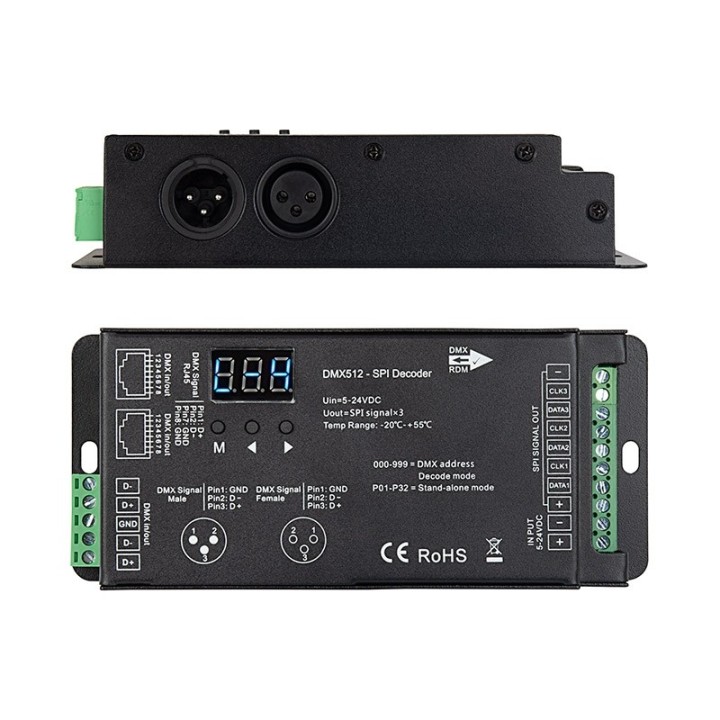

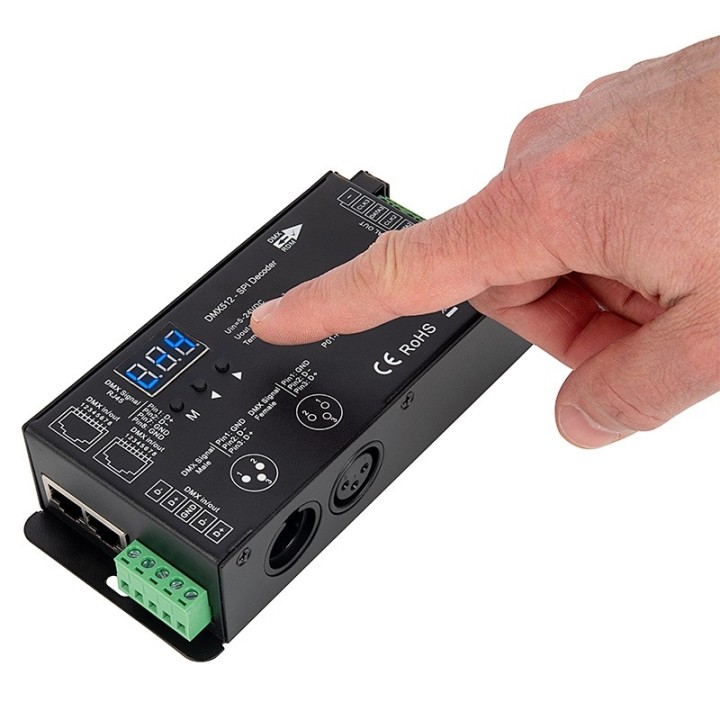

    • 3-pin XLR, RJ45 and screw terminal DMX signal IN and OUT
    • Connection type: CLK, DATA
    • Integrated mounting tabs

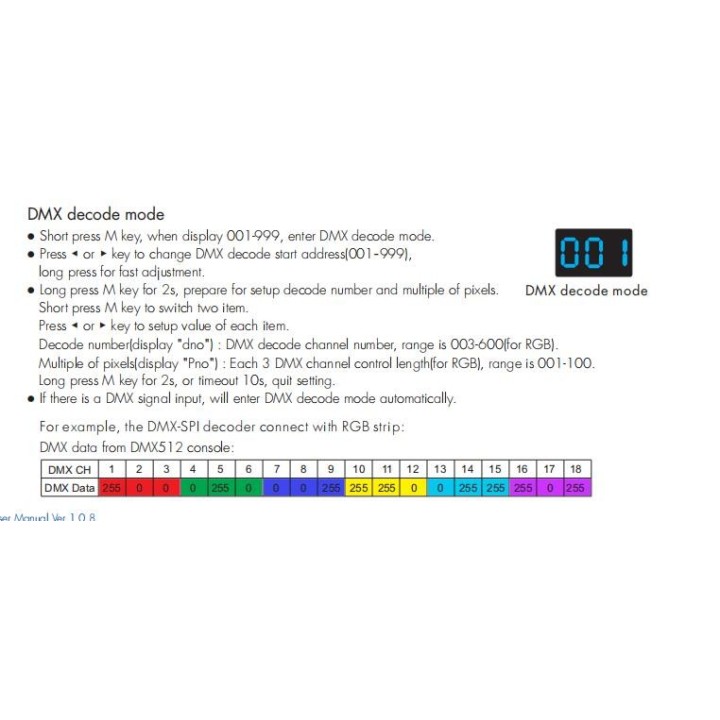

    • Standard DMX512 compliant interface: set DMX decode start address with buttons and digital display

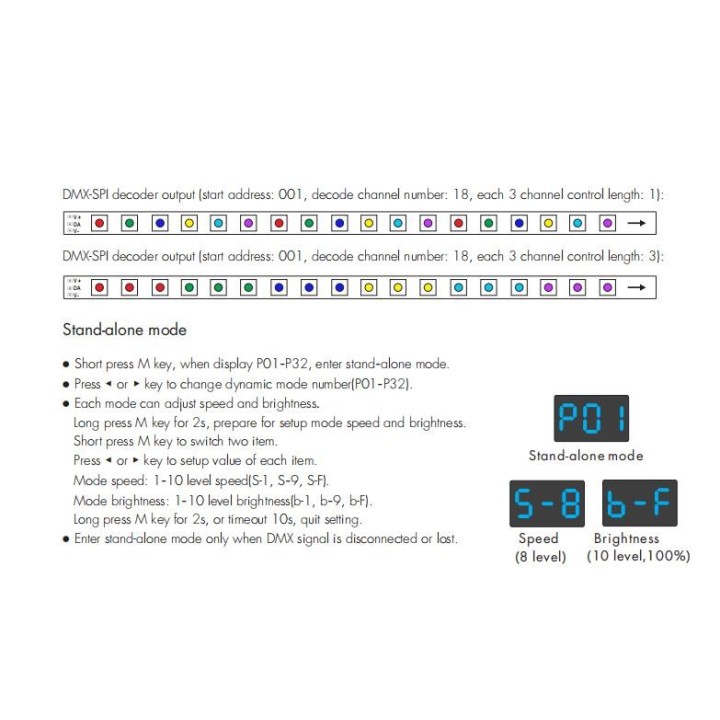

    • Under stand-alone mode: change mode, speed or brightness with buttons and digital display
    • Under RF mode, use compatible RF 2.4G remote control
    • Operating temperature: -22°–131° F (-30°–55° C)
    • Rated IP20 - suitable for damp locations
    • CE, FCC


    Component Type

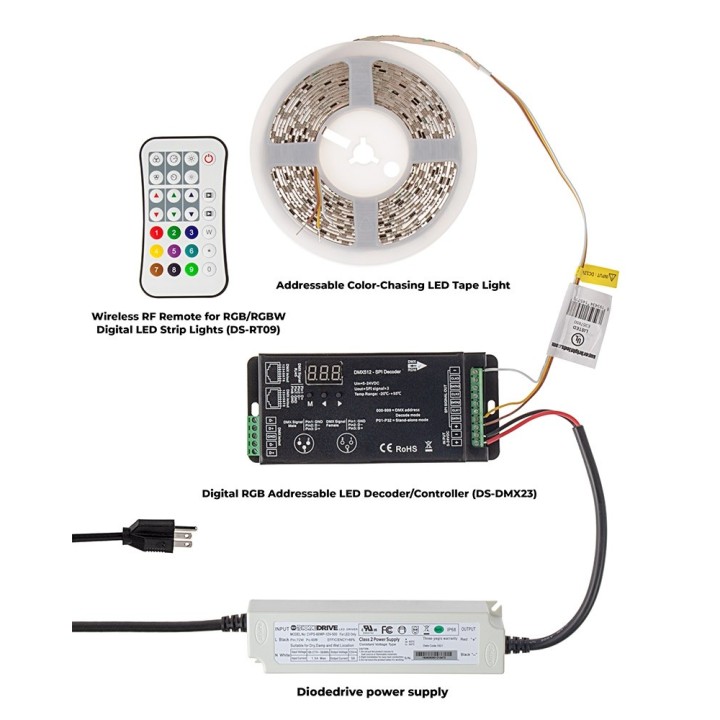

    DMX512 to SPI decoder/controller (pairs with DS-RT09)
    DMX In/Out
    RJ45 (x2), Screw Terminals, XLR3 (one male, one female)
    IP Rating
    Non-Waterproof IP20
    Input Voltage Range
    5-24 VDC
    Steel Case
    Operating Temperature
    -30~+55 °C (-22~+131 °F)
    Output Signal
    SPI control signal, up to 1,024 pixels
    Output Voltage
    Matches Input
    Receiving Range
    98.4 ft (30 m)
    Standards And Certifications
    CE, FCC, RoHS Compliant
    1 W (input)
    Wireless Signal Type
    2.4 GHz RF
Hello, I purchased this item. does it come with a power supply? DMX512 SPI Decoder - Digital RGB Addressable LED Decoder/Controller - 5-24 VDC
Any power supply from 5 to 24V DC will work. You need to match it to your LED strips. For example, if your LED strips are 5V, use 5V. I have used this one:
