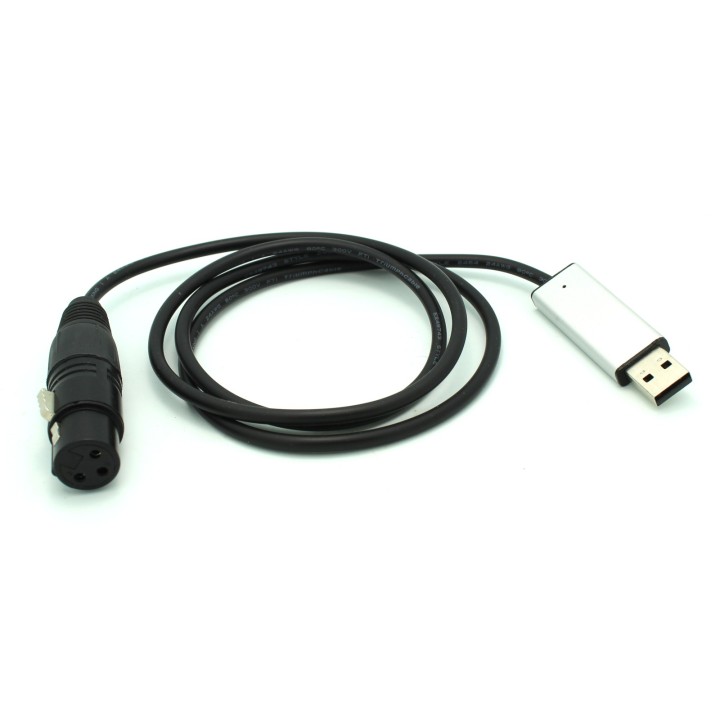

USB to DMX Interface Adapter DMX512 Computer PC Stage Lighting Controller Dimmer

USC to DMX Interface Adapter DMX512 Stage Lighting Controller Dimmer that allows you to control complex stage lighting and LED lighting displays from your computer via USB.

More details

Availability: SHIPS TODAY

Last Updated: 12/06/2023





  • USB DMX Interface.
  • Micro processor enabled.
  • Supports Various 3rd party softwares.
  • Internal frame buffering.
  • Drivers for Windows and Linux.
  • DMX512 times configurable.
  • The signed driver for Windows XP, Vista and Windows 7 (32-bit). Besides, on Unix-based operating systems, the LibUSB is integrated directly into the kernel.
  • Uncompress the file wherever you want and then plugin the hardware.
  • The operating system will search for a driver.
  • Select the correct directory (of you uncompression),
  • After several seconds the driver should be installed
  • ATTENTION: And then the file uDMX.dll has to be MANUALLY copied to the directory <Windows>\System32\ in order to finish the installation.
  • After uDMX.dll has been copied to the directory of <windows>\System32\, for example C:\WINDOWS\system32, the driver installation is finished."


  • Download the compressed driver file.
  • "Advantages of Artnet or why you should use artnet-receiver for X-uDMX512:
  • Artnet is a network protocol to transfer DMX data over the ip network. Thus it is possible to transfer DMX data with wireless LAN.
  • Most DMX-Software are able to output DMX-data to Art-Net. So it is not necesary to have a plugin for each program. uDMX can even be used with programs where there is no plugin.
  • This works for example with:
  • DMX-Control
  • Freestyler
  • Magic Q
  • Abuelites"
  • NOTE: It is not compatible with the all dmx Software.
  • Until now, we know that it can be compatible with the software FreeStyler DMXControl PC-Dimmer, Q Light Controller Vixen Abuelites, MagicQ. If you use other software, please consult us before purchase.
