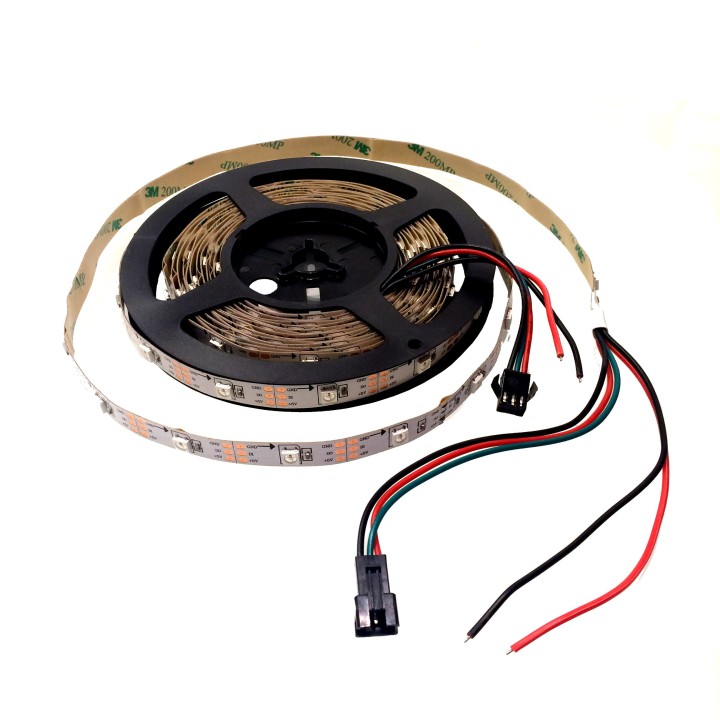

RGB LED Strip - Addressable 5m (NeoPixel Compatible, WS2812) Maximize

Super Long RGB LED Strip - Addressable 5m (NeoPixel Compatible, WS2812)

16.4 feet (5 meters) of singly addressable RGB LEDs on one strip. 5 times the length of standard Neopixel compatible strips for 5 times the light! Each WS2812 RGB LED is individually addressable. Arduino Compatible.

More details

Availability: SHIPS TODAY

Last Updated: 11/14/2024

Tinkersphere

$32.95

When you want to control each LED's color and intensity individually, this is your solution. Create cool lighting displays where each LED can be controlled all on it's own and turn on/off, change color and brightness by itself. Use an Arduino board to control the strip using just 2 pins just like our LED Sequins and Addressable RGB LEDs. Each LED has a chip inside it to control it's behavior on it's own which allows you to cut the strip after any single LED if you want to use a shorter length! The entire 5 meter, 16.4 foot, strip is terminated by a female 3 Pin JST SM connector on one end and a male 3 Pin JST SM connector on the other for easily plugging into eachother.

  Specifications:

  • LED Type: 5050 SMD Pixel (Individually Addressable Neopixel Compatible)
  • Chipset: WS2812 (Same as our LED Sequins and Addressable RGB LEDs)
  • Size: Length 5 meters x Width 1.2cm x Thickness 0.25cm
  • Emitting Color: RGB (every LED can be a different color at the same time)
  • Non-waterproof
  • Working Voltage: 5V DC
  • LED Quantity: 150 LEDs
  • Max Wattage 7.2W/meter
  • Max DC Current Draw: 1.44A/meter
  • Terminal JST Connector Pinout:
    • VCC: Red Wire
    • GND: Black Wire
    • DAT: Blue Wire

Use this power supply to power the whole strip and this controller.
