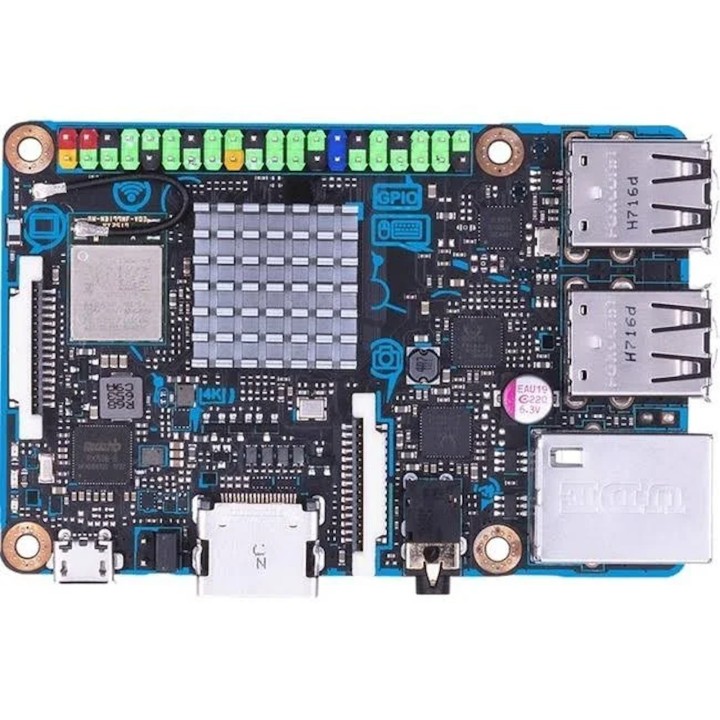

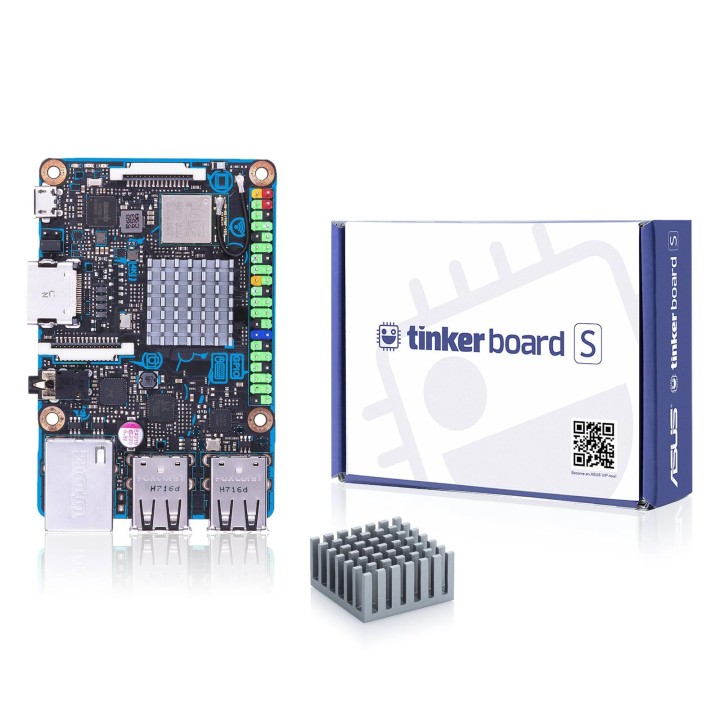

ASUS Tinker Board S Single Board Computer RK3288

Tinker Board is a Single Board Computer (SBC) in an ultra-small form factor that offers class-leading performance while leveraging outstanding mechanical compatibility. The upgraded Tinker Board S offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering their ideas into reality.

Features:

• ASUS Tinker Board is a credit card size Single Board Computer
• Installed Memory: 2 GB
• Number of Cores: Quad-core
• Processor Speed: 1.6 GHz
• Style: Single-board
• Video Port: HDMI

  General

  • Product Type: Single-board computer
  • Features
  • ALC4040 Realtek audio codec
  • Processor Type: Rockchip
  • Processor Number: RK3288
  • Clock Speed: 1.8 GHz
  • Number of Cores: Quad-Core

  RAM

  • Technology: LPDDR3 SDRAM
  • Installed Size: 2 GB

  Flash Memory

  • Installed Size: 16 GB
  • Supported Flash Memory Cards: microSDHC, microSD

  Graphics System

• Graphics Accelerator: Mali T764

  Networking

• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0
• Wireless Protocol: 802.11b/g/n, Bluetooth 4.0
• Wired Protocol: Gigabit Ethernet

  Interface Provided

• LAN - RJ-45
• 4 x USB 2.0 - Type A
• GPIO - 40 pin
• IDC DSI - ZIF SPDIF CSI - ZIF
• HDMI output - Type A
• Audio line-out/microphone - mini-jack

  Power Device

• Power Source: AC power adapter

  Miscellaneous

• Width 3.4 in
• Depth 2.1 in
• Weight 1.94 oz
