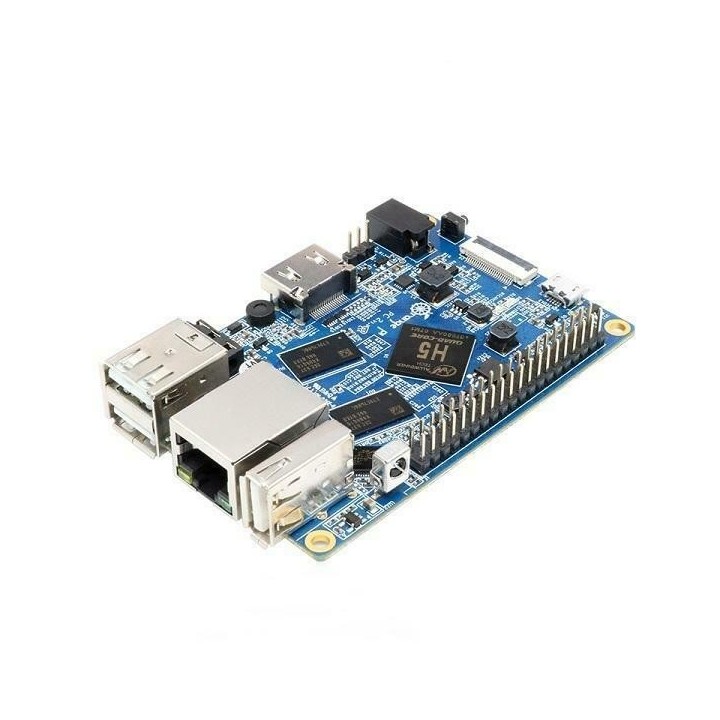

Orange Pi PC 2: 1GB RAM 1.4Ghz x64 Quad-Core Processor

DISCONTINUED. Recommended Replacement: Orange Pi 3 LTS


It’s an open-source 64 bit single-board computer. It can run Raspberry Pi software, Android, Ubuntu, Debian & Banana Pi Images. It uses the 1.4Ghz 64 bit quad core Cortex A53 ARM AllWinner H5 SoC, 1000M/100M speed ethernet and has 1GB DDR3 SDRAM.

More details

Availability: SHIPS TODAY

Last Updated: 03/19/2024

Tinkersphere

TS2353

$74.99

The Orange Pi PC 2 with built in 1000M/100M speed ethernet, a 64 bit processor and 1GB of RAM is a little PC that can be used like any other computer and can run a full range of ARM GNU/Linux distributions including Raspberry Pi images, Ubuntu, Debian, and also Android! USB mice and keyboard compatible with ethernet connectivity and high-definition video capabilities. The Orange Pi PC 2 boasts a 64 bit quad core processor (H5 Quad-core Cortex-A53), high speed ethernet as well as a microSD card reader to boot off and store to a microSD card. Hexa-core Mali450 graphics card for enhanced graphics as well! Other extra features include a built in IR receiver for controlling via a remote control, on board microphone and Power button! Pinout is the same as the Raspberry Pi 0, 3, 2 & B+ models so you have a stronger processor and extra features combined with compatibility!

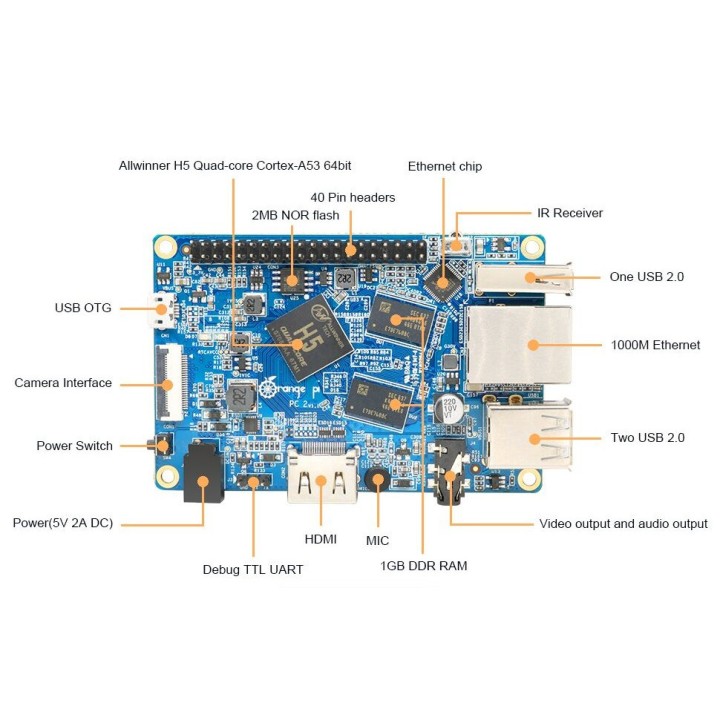

In summary, the Orange Pi PC 2 is the faster brother to the Orange Pi PC Plus with high speed ethernet connectivity and a 64 bit processor. It also has a quadcore chipset (1.4Ghz Quad core Cortex A53 ARM AllWinner H5), built-in IR receiver, power button, mic, separate debug TTL pins so you don't waste your GPIO pins, the same amount of RAM, same I/O pins as the Raspberry Pi, 3 USB ports, an ethernet port, USB OTG port, camera port, HDMI and composite video/audio outputs and microSD card storage as the Raspberry Pi 3.

Check out our Raspberry Pi / Orange Pi Starter Kit which includes all the accessories you'll need to get started!

Technical Specs:

CPU

• H5 High Performance Quad-core 64-bit Cortex-A53

• Integrated multimedia acceleration engine

• Hardware Java acceleration

• Integrated hardware floating-point coprocessor

GPU

• Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage

• High Performance Hexa-core Mali450

• OpenGL ES 2.0/1.1/1.0, OpenVG 1.1, EGL

• 40 GFlops, Pixel fill rate greater than 2.7GPixel/s

Memory (SDRAM)

1GB DDR3 (shared with GPU)

Onboard Storage

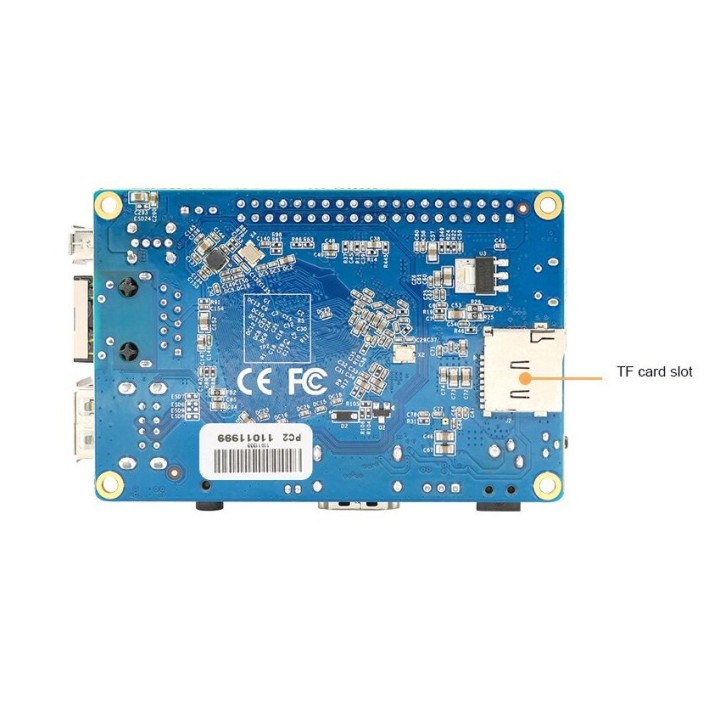

TF card (Max. 32GB) / NOR flash(2MB)

Onboard Network

1000M/100M Ethernet RJ45

Video Input

A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Audio Input

MIC

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Integrated CVBS

Supports simultaneous output of HDMI and CVBS

Audio Output

3.5 mm Jack and HDMI

Power Source

DC input 4.0x1.7mm 5V 2A

USB 2.0 Ports

Three USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button

Low-level peripherals

40 Pins Header,compatible with Raspberry Pi 0, 3, 2 and 1 B+

GPIO(1x3) pin

UART, ground

LEDs

Power led & Status led

Power Control

IR receiver, Power button

Supported OS

Android, Ubuntu, Debian, Raspbian

Dimensions

Product size

85 mm × 55mm

Weight

70g
