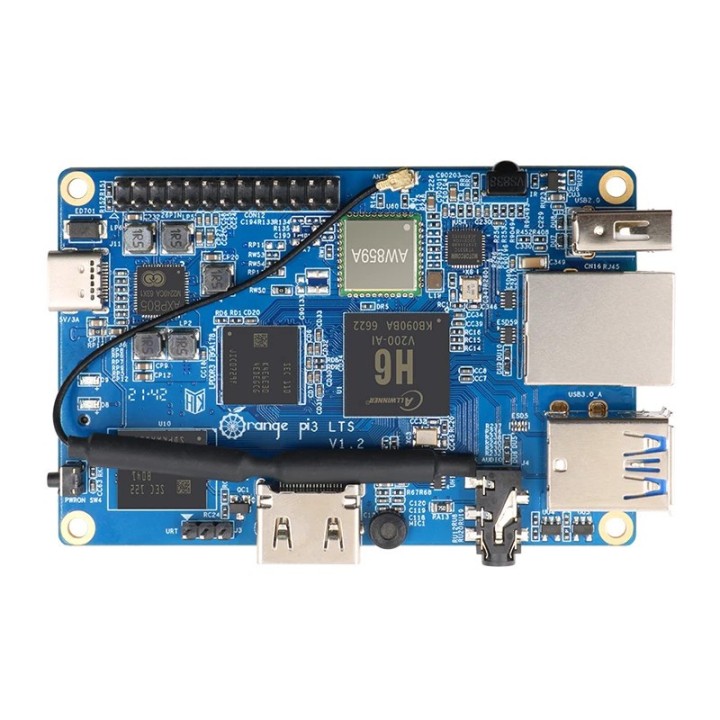

Orange Pi 3 LTS 2G8G EMMC with HDMI+WIFI+BT5.0, AllWinner H6 SoC,Open Source Board Computer,Run Android 9.0/ Ubuntu/ Debian OS

It’s an open-source 64 bit single-board computer. It can run Raspberry Pi software, Android, Ubuntu, Debian & Banana Pi Images. It uses the 1.8Ghz 64 bit quad core Cortex A53 ARM AllWinner H6 SoC, 1000M/100M speed ethernet and has 2GB DDR3 SDRAM.

More details

Availability: SHIPS TODAY

Last Updated: 12/21/2024

Tinkersphere

TS3779

$58.99

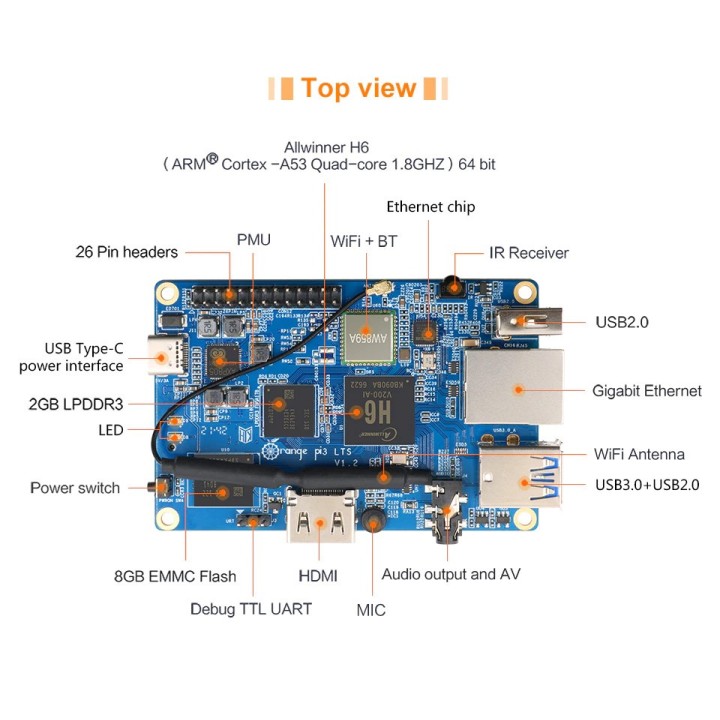

The Orange Pi 3 LTS with built in 1000M/100M speed ethernet, a 64 bit processor and 2GB of RAM is a little PC that can be used like any other computer and can run a full range of ARM GNU/Linux distributions including Raspberry Pi images, Ubuntu, Debian, and also Android! USB mice and keyboard compatible with ethernet connectivity and high-definition video capabilities. The Orange Pi 3 LTS boasts a 64 bit quad core processor (H6 Quad-core Cortex-A53), high speed ethernet as well as a microSD card reader to boot off and store to a microSD card. Other extra features include a built in IR receiver for controlling via a remote control, on board microphone and Power button! Pinout is the same as the Raspberry Pi 0, 3, 2 & B+ models so you have a stronger processor and extra features combined with compatibility!

In summary, the Orange Pi 3 LTS is the faster brother to the Orange Pi PC Plus in a smaller package than the regular Orange Pi 3 with high speed ethernet connectivity and a 64 bit processor. It also has a quadcore chipset (1.8Ghz Quad core Cortex A53 ARM AllWinner H6), built-in IR receiver, power button, mic, separate debug TTL pins so you don't waste your GPIO pins, the same amount of RAM, same I/O pins as the Raspberry Pi, 3 USB ports, an ethernet port, USB OTG port, camera port, HDMI and composite video/audio outputs and microSD card storage as the Raspberry Pi 3.

Check out our Raspberry Pi / Orange Pi Starter Kit which includes all the accessories you'll need to get started!

Technical Specs:

CPU

Allwinner H6
Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor

GPU

• High-performance multi-core GPU Mali T720
• OpenGL ES3.1/3.0/2.0/1.1
• Microsoft DirectX 11 FL9_3
• ASTC(Adaptive Scalable Texture Compression)
• Floating point operation greater than 70 GFLOPS

Power management chip

AXP805

RAM

2GB LPDDR3 (shared with GPU)

Onboard Storage

• Micro SD card slot
• 8GB EMMC Flash

Onboard Network

• YT8531C Chip
• Support 10/100M/1000M Ethernet

Onboard WIFI+Bluetooth

• AW859A Chip
• Support IEEE 802.11 a/b/g/n/ac
• Support BT5.0

Video Output

• HDMI 2.0a
• TV CVBS Output

Audio output

• HDMI Output
• 3.5mm Audio Port

Power Source

5V3A Type-C (Recommended power supply: TS3136)

USB

1* USB 3.0 HOST、2* USB 2.0 HOST

Low-level peripherals

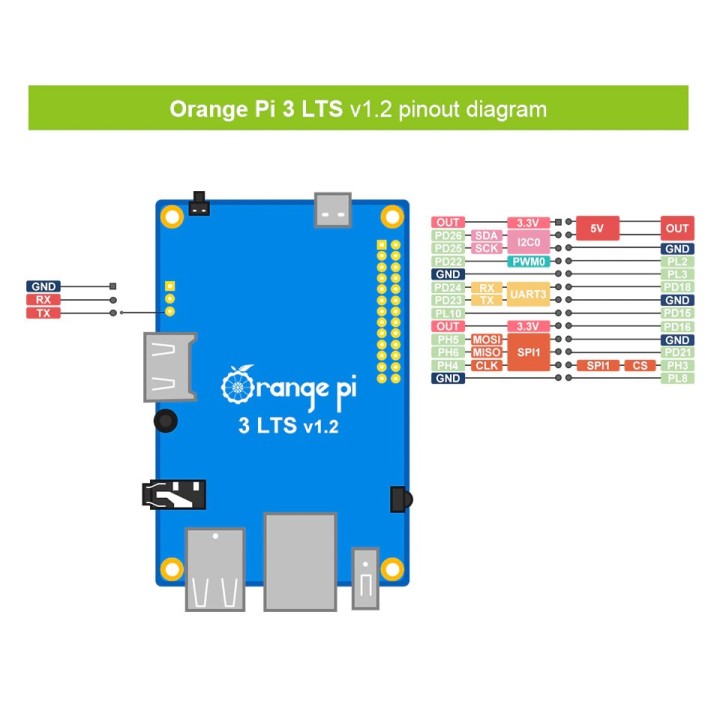

26pin connector with1* I2C, 1*SPI, 1*UART &Multiple GPIO Ports

Debug serial port

UART-TX、UART-RX & GND

Button

Power Button (SW4)

LED

Power LED& Status LED

IR Receiver

Support IR Remote Control

Supported OS

Android 9.0、Ubuntu、Debian

Appearance specification introduction

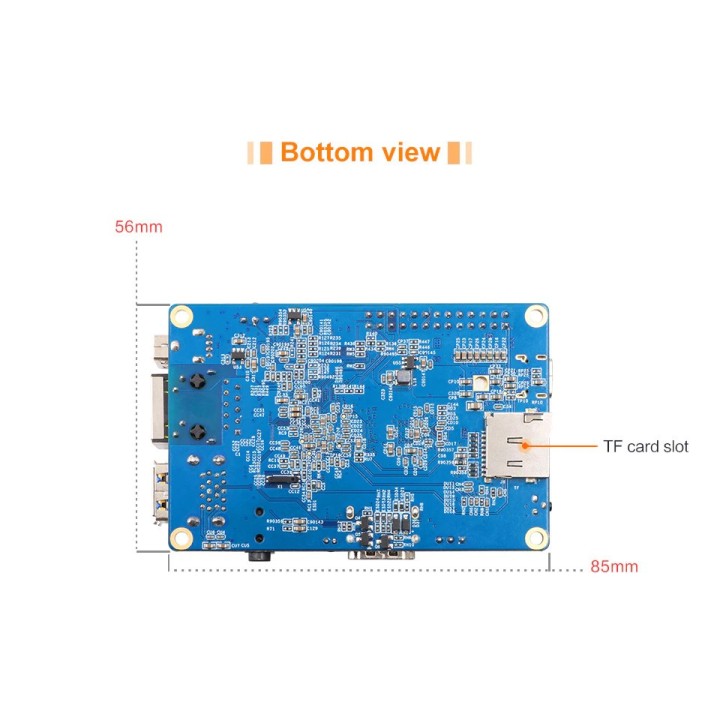

Dimension

56mm*85mm

Weight

45g
