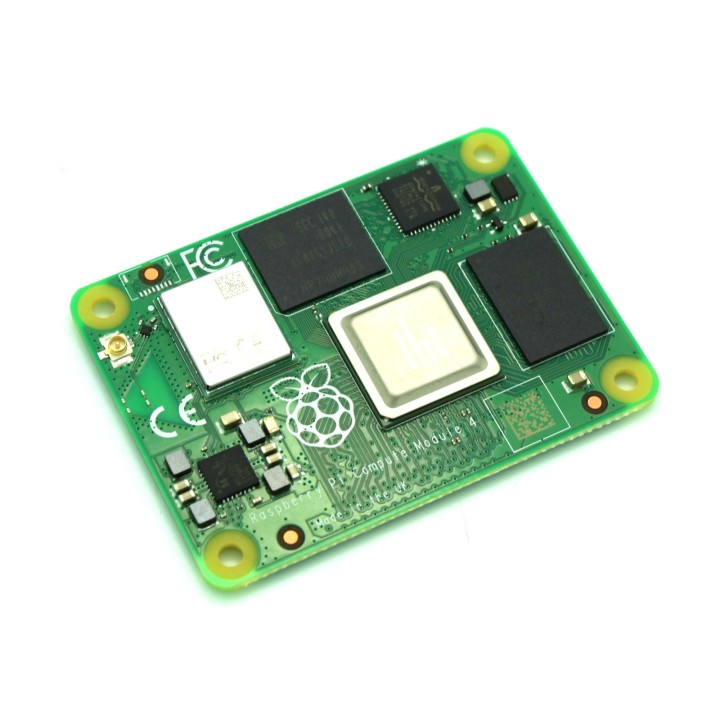

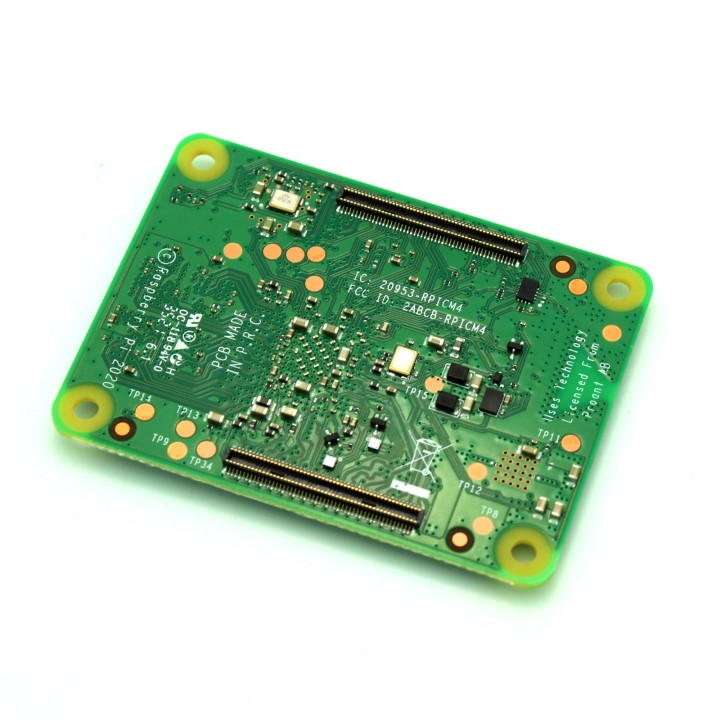

Raspberry Pi Compute Module 4, CM4, 2GB RAM, 16GB eMMC, BCM2711, ARM Cortex-A72 CM4102016

The Raspberry Pi Compute Module 4 has a 2.16 x 1.57 inch form factor board and has extra IO interfaces over and above what is available on the standard Raspberry Pi models. Use the Raspberry Pi Compute Module 4 to start building embedded Raspberry Pi products for mass production.

Includes:

• 1 Raspberry Pi Compute Module 4 (CM4)



Features:

• CM4 contains a BCM2711 processor, 2GB RAM, 16GB eMMC
• 64-bit quad-core application processor
• Delivers a step change in performance over its predecessors such as faster CPU cores, better multimedia, more interfacing capabilities.
• 2GB RAM
• 16GB eMMC storage
• VideoCore VI graphics, supporting OpenGL ES 3.x
• 4Kp60 hardware decode of H.265 (HEVC) video
• 1080p60 hardware decode and 1080p30 hardware encode of H.264 (AVC) video
• Dual HDMI interfaces, at resolutions up to 4K
• Single-lane PCI Express 2.0 interface
• Dual MIPI DSI display, and dual MIPI CSI-2 camera interfaces
• Gigabit Ethernet PHY with IEEE 1588 support
• Bluetooth 5.0 BLE Connectivity
• 28 GPIO pins, with up to 6 x UART, 6 x I2C and 5 x SPI
• 2.16 x 1.57 inches (55mm x 40mm) board size
• ARMv6 (CM1) or ARMv7 (CM3, CM3L) Instruction Set
• Mature and stable Linux software stack
• Latest Linux Kernel support
• Many drivers upstreamed
• Stable and well supported userland
• Full availability of GPU functions using standard APIs
